MikroTik OmniTIK Outdoor AP w/ Dual-Polarized 802.11a/n Omni Antennas L4

RBOmniTikU-5HnD by MikroTik
Original price $89.00 - Original price $89.00
Original price
$89.00
$89.00 - $89.00
Current price $89.00

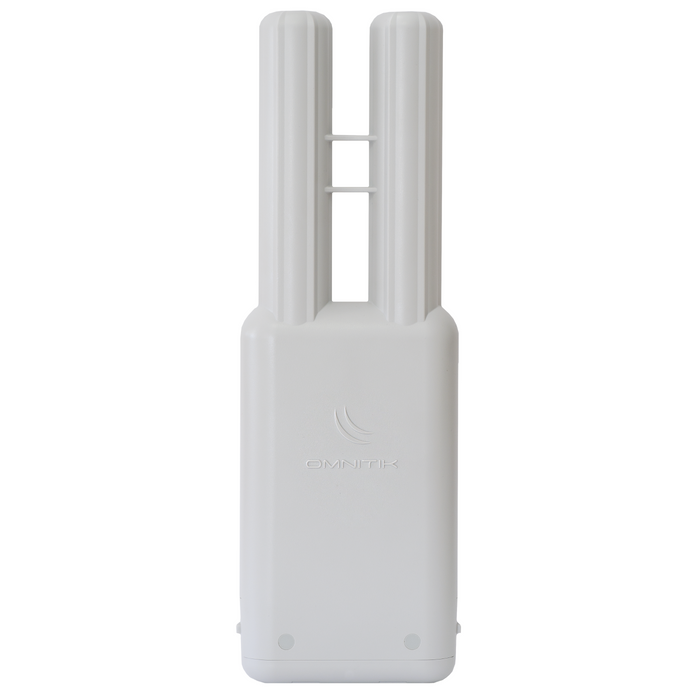

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in powerfull 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput. LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.

Product Features:
  • CPU: Atheros AR9344 600MHz network processor
  • Memory: 64MB DDR2 onboard memory

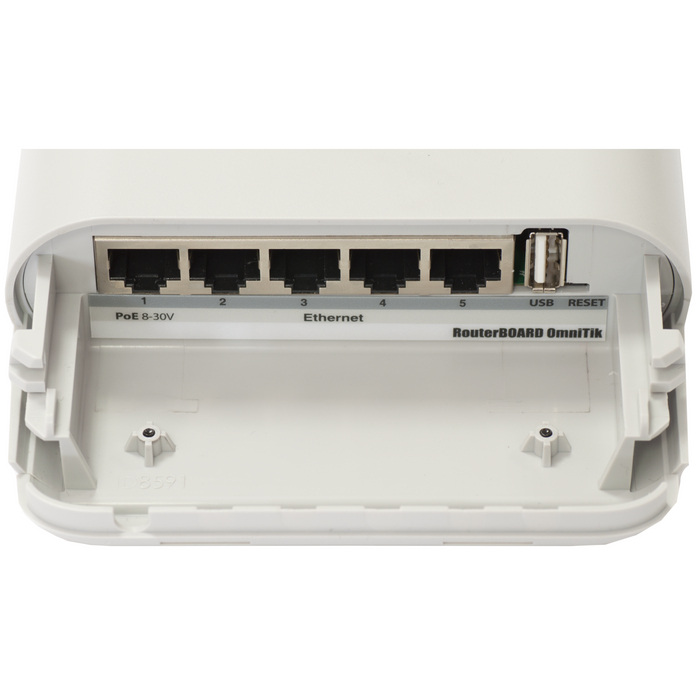

  • Ethernet: Five 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU up to 2030
  • Wireless: Wireless Built-in 5GHz 802.11a/n 2x2 MIMO
  • Wireless regulations: Specific frequency range may be limited by country regulations
  • Antenna: Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical)
  • Extras: Reset switch, Beeper, USB 2.0 port, Voltage monitor, Temperature monitor
  • LEDs: 5 programmable LEDs (Ethernetactivity by default), one power LED
  • Power input: Passive 11-30V PoE in only. 16KV ESD protection on RF port
  • Dimensions: 177x44x44mm
  • Operating temperature: -40°C .. +70°C tested
  • Operating system: MikroTik RouterOS, Level 4 license

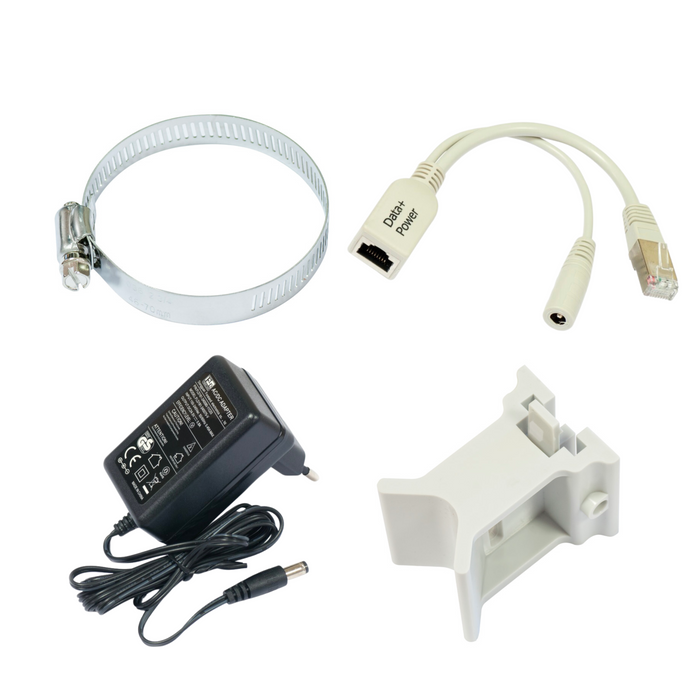

Product Includes:

(1) OmniTIK unit

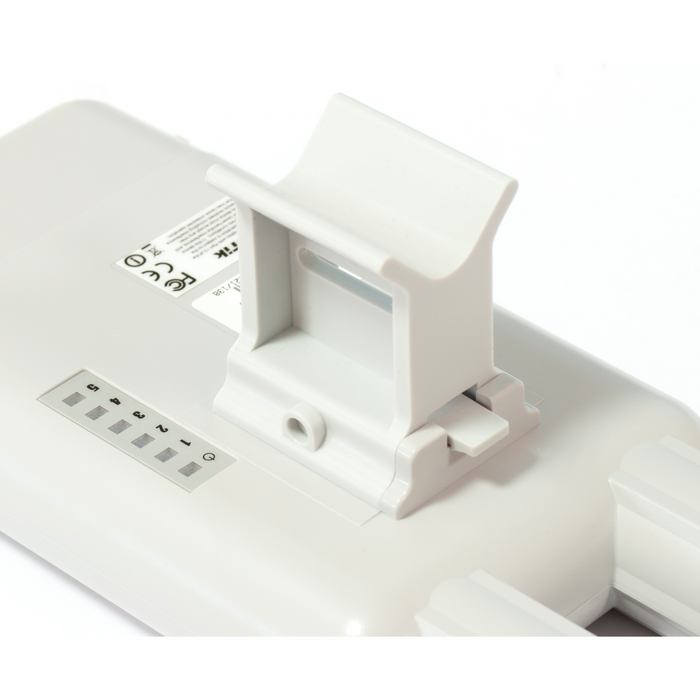

(1) mounting bracket
(1) hose clamp
(1) PoE injector
(1) 24V 0.8A PSU (U-5HnD)
(1) 24V 2.5A PSU (UPA-5HnD)
