MikroTik OmniTIK 5 Outdoor AP US [RBOmniTikU-5HnD-US]

RBOmniTikU-5HnD-US by MikroTik
Sold out
Original price $89.00 - Original price $89.00
Original price
$89.00
$89.00 - $89.00
Current price $89.00

This product has been discontinued by MikroTik. Suggested replacement is the RBOmniTikUPA-5HnD-US.

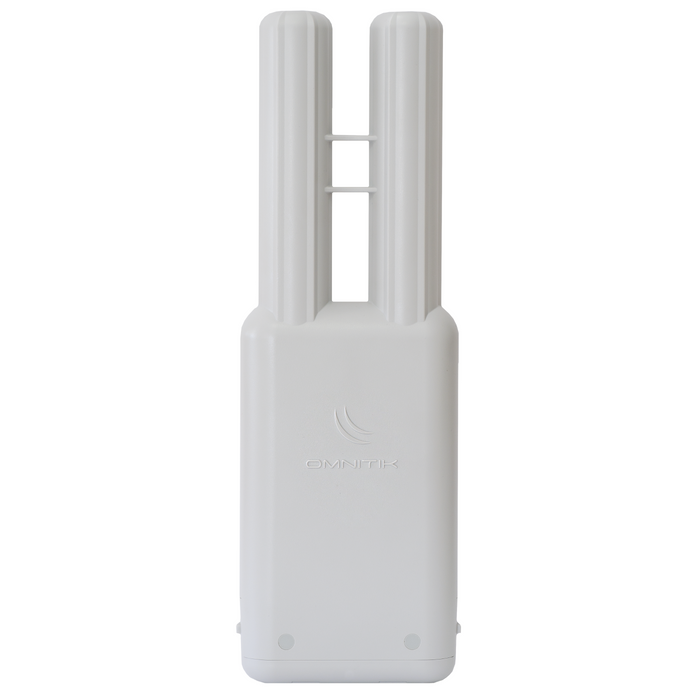

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it’s features

RBOmniTikU-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

Product Features:
  • CPU: Atheros AR9344 600MHz network processor
  • Memory: 64MB DDR2 onboard memory

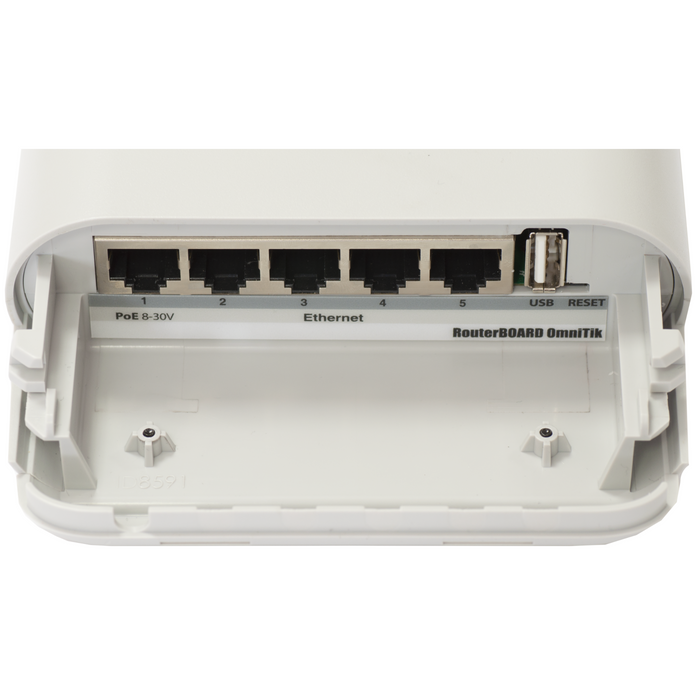

  • Ethernet: Five 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU up to 2030
  • Wireless: Wireless Built-in 5GHz 802.11a/n 2x2 MIMO
  • Wireless regulations: Specific frequency range may be limited by country regulations
  • Antenna: Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical)
  • Extras: Reset switch, Beeper, USB 2.0 port, Voltage monitor, Temperature monitor
  • LEDs: 5 programmable LEDs (Ethernetactivity by default), one power LED
  • Power input: Passive 11-30V PoE in only. 16KV ESD protection on RF port
  • Dimensions: 177x44x44mm
  • Operating temperature: -40°C .. +70°C tested
  • Operating system: MikroTik RouterOS, Level 4 license

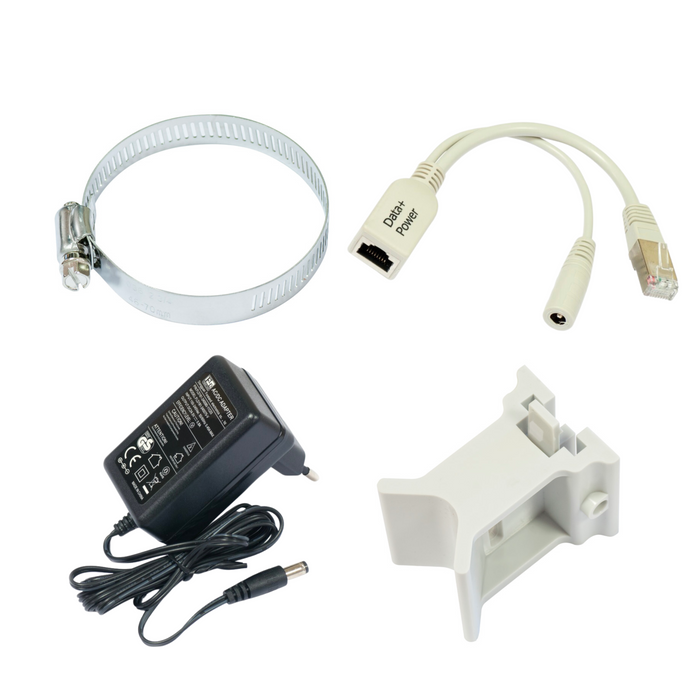

Product Includes:
  • (1) OmniTIK U-5HnD unit
  • (1) mounting bracket
  • (1) hose clamp
  • (1) PoE injector
  • (1) 24V 0.8A PSU (U-5HnD)
