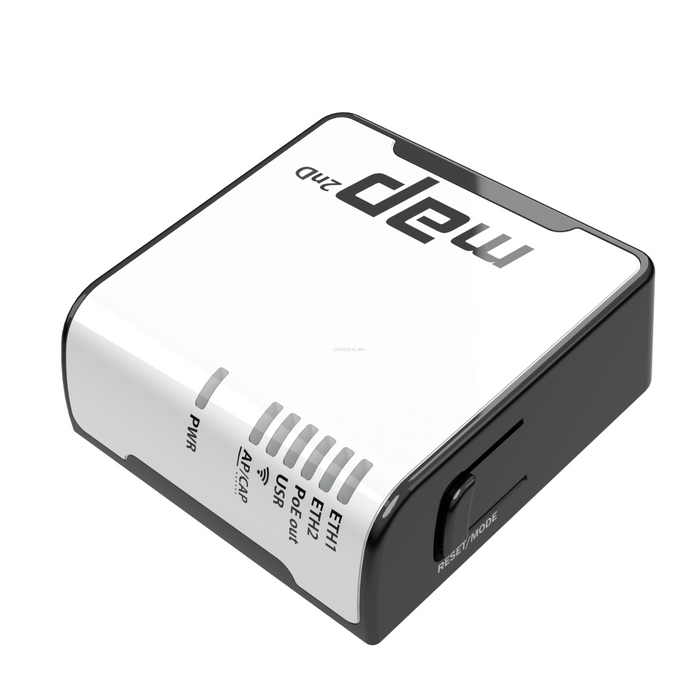

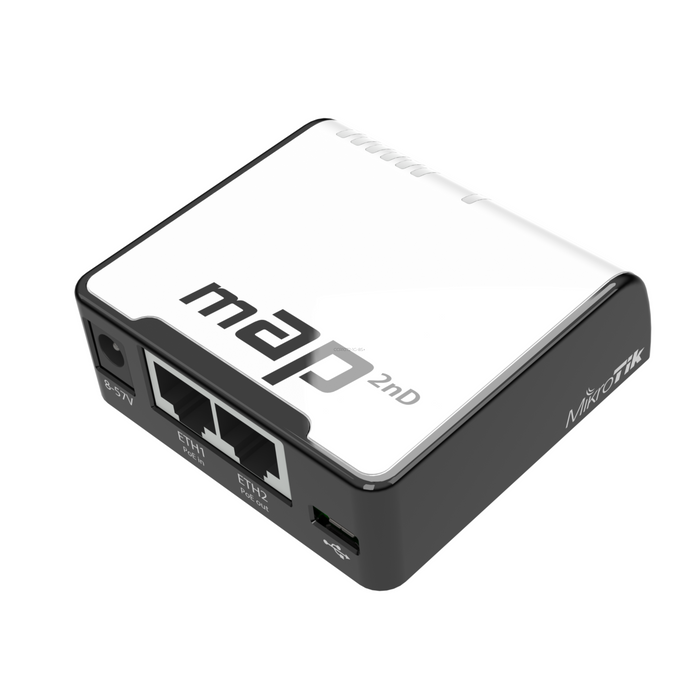

MikroTik mAP Dual-Chain 2.4GHz micro AP [RBmAP2nD]

RBmAP2nD by MikroTik
Original price $45.00
Original price $45.00 - Original price $45.00
Original price $45.00
Current price $39.95
$39.95 - $39.95
Current price $39.95

Indoor Access Point, a fully-capable router, a PoE Injector and a 3G/4G Hotspot....all in a device just slightly bigger than a matchbox! There has not been anything else quite like this on the market and we are proud to introduce to you.....the mAP2nD!

The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive or Active PoE (802.3af and 802.3at) and power jack. In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. Add the Maxxwave 3G/4G Modems via its USB (sold separately, see Related Products at left), and you got yourself a hotspot!

Product Features:

  • PoE in 10-57V
  • Built in 2.4GHz AP
  • microUSB for a 3G/4G modem, or for power input
  • Station or AP mode wireless
  • Passive PoE output (same as input voltage)
Product Specifications:
  • CPU: Qualcomm Atheros AR9531 650 MHz
  • RAM: 64MB DDR2
  • Ethernet: 2x 10/100 Mbit/s Ethernet with Auto-MDI/X
  • Storage: 16MB built in flash storage
  • Wireless: QCA9531, 2.4GHz 802.11b/g/n built in
  • Antenna: 1.2dBi built in
  • Power input: Passive PoE 10-57V and 802.3af/at, supports powering from USB
  • Power output: Passive PoE output, up to 500mA on Ether 2
  • Case dimensions: 68x68x19mm
  • Temperature: -10C to +70C tested
  • OS MikroTik: RouterOS v6, Level 4 license

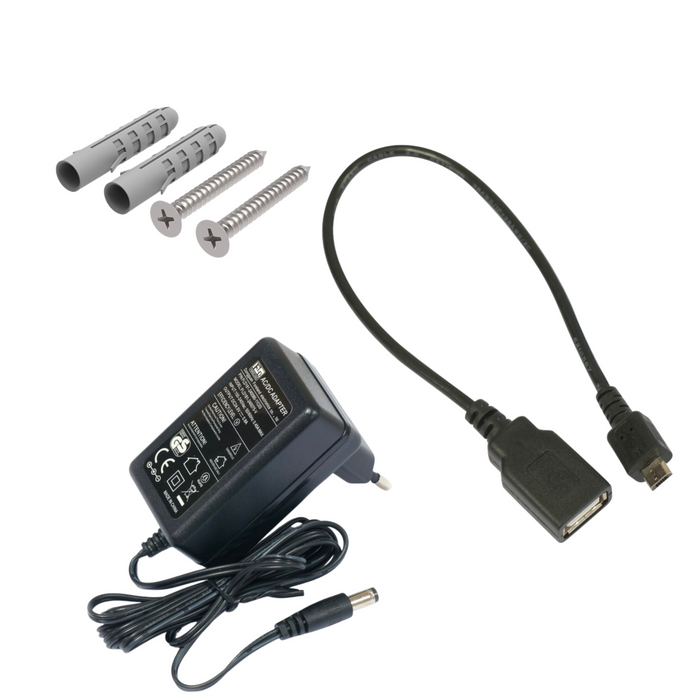

Product Includes:
  • (1) RBmAP2nD
  • (1) 24V 0.8A power adapter
  • (1) microUSB type B to USB type A adapter
