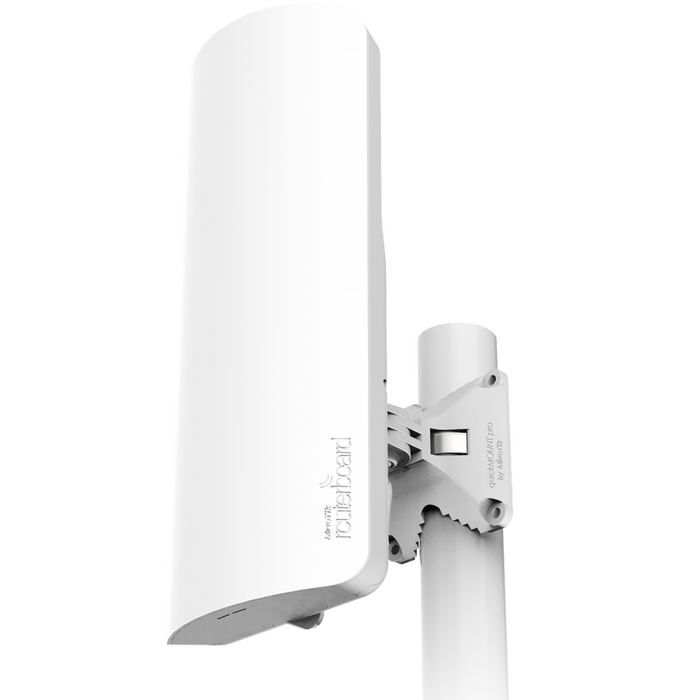

MikroTik mANTBox 52 15s Base Station w/Built-in Sector Antenna INTL [RBD22UGS-5HPacD2HnD-15S]

This product has been discontinued by MikroTik. Suggested replacement is L22UGS-5HaxD2HaxD-15S

Managing an outdoor wireless network with a variety of access points and CPE devices? Then MikroTik's brand new mANTBox 52 15s has got you covered – offering powerful built-in antennas, fascinating connectivity options and more! Creating an efficient point-to-multipoint connection used to be tricky, but not anymore: the MikroTik mANTBox 52 15s works well in any setup. The dual-band wireless capability allows you to use both 2.4 GHz and 5 GHz devices at the same time. There is a Gigabit Ethernet port and an SFP port for fiber connections.

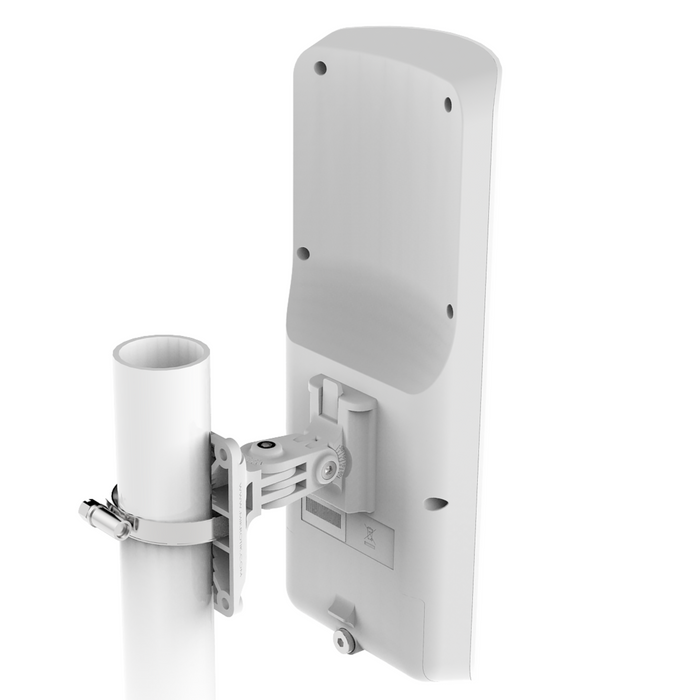

With the MikroTik mANTBox 52 15s, you don’t have to worry about power options – it supports 802.3af/at PoE-in. There is a Gigabit PoE injector and a standard DC power adapter included. MikroTik has doubled the RAM and added a new quad-core CPU that can handle even the heaviest loads. The MikroTik mANTBox 52 15s can even provide IPsec hardware offloading without trouble. Depending on the rest of your setup, you can reach distance up to 20 km with the built-in dual polarization antenna. The MikroTik mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro, it is possible to perfectly set antenna alignment using an integrated graduated scale.

• Strong Dual-Chain Dual-Band 2.4/ 5 GHz Wireless
• Gigabit Ethernet
• SFP for Fiber Connectivity
• iOS/ Android app for quick and easy configuration
• Quad-Core CPU
• Powerful built-in dual polarization antenna
• 802.3af/ at PoE-in
• Distance up to 20 km
• IPsec hardware offloading
• Extreme versatility with the powerful RouterOS
• Certifications: CE, FCC, IC, IP

• CPU: 4 core IPQ-4019 716 MHz
• Size of RAM: 256 MB
• Storage: 16 MB Flash

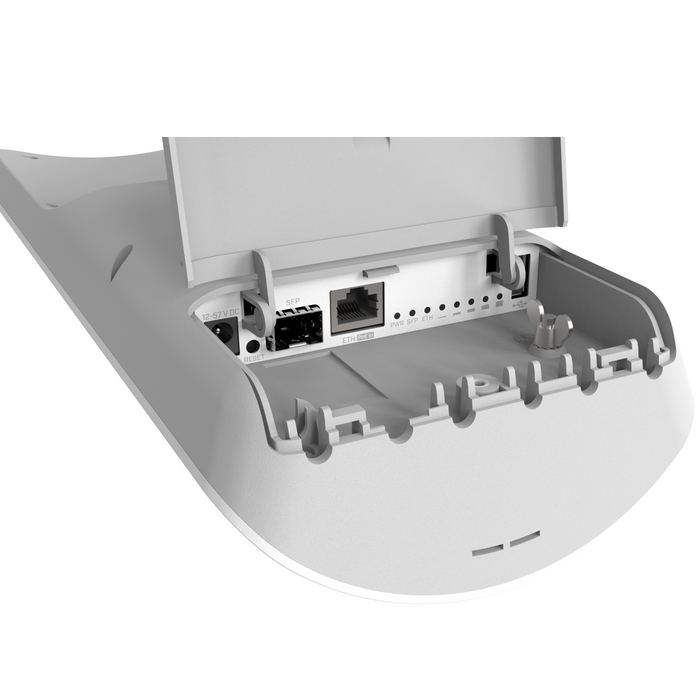

• Number of 1GbE Ports: 1
• Number of 1G SFP Ports: 1
• Wireless: 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain
• Wireless regulations: Specific frequency range can be limited by country regulations
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• USB Port: USB Type A
• Operating System: RouterOS, License level 4
• Antenna Gain: 12 dBi (2.4 GHz), 15 dBi (5 GHz)
• Antenna Beam Width: 90° (2.4 GHz), 60° (5 GHz)
• Polarization: Vertical and Horizontal
• Tested Ambient Temperature: -40°C to +70° C
• Max Power Consumption without Attachments: 15 W
• Max Power Consumption: 21 W
• PoE-in: 802.3af/at
• PoE-in Input Voltage: 12-57 V
• Number of DC Inputs: 2 (PoE-in, DC jack)
• DC Jack Input Voltage: 12-57 V
• Power Adapter Nominal Voltage: 48 V
• Power Adapter Nominal Current: 0.95 A

• (1) MikroTik mANTBox 52 15S Base Station
• (1) 48 V 0.95 A Power Adapter
• (1) PoE Injector
• (1) Hose Clamp
• (1) QuickMOUNT Pro
