MikroTik mANTBox 2 12s 12dBi 120 degrees Integrated Base Station [RB911G-2HPnD-12S]

MikroTik mANTBox 2 12s 12dBi 120 degrees Integrated Base Station [RB911G-2HPnD-12S]

RB911G-2HPnD-12S by MikroTik
MikroTik RB911G-2HPnD-12S Datasheet
Save 16% Save 16%
$99.00
$99.00 - $99.00
$99.00
$82.95
$82.95 - $82.95
$82.95

Preorders scheduled to ship out the Week of October 9th.

Suggested replacement for the RBSXTG-2HnD

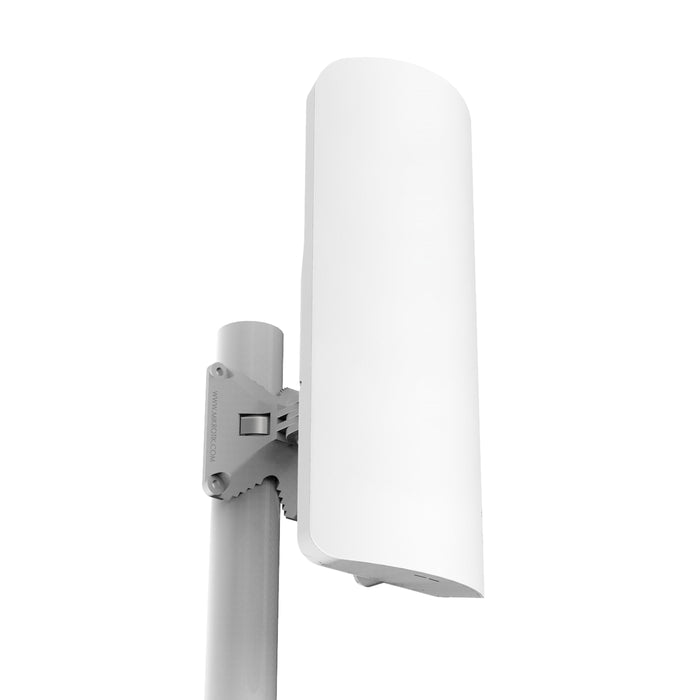

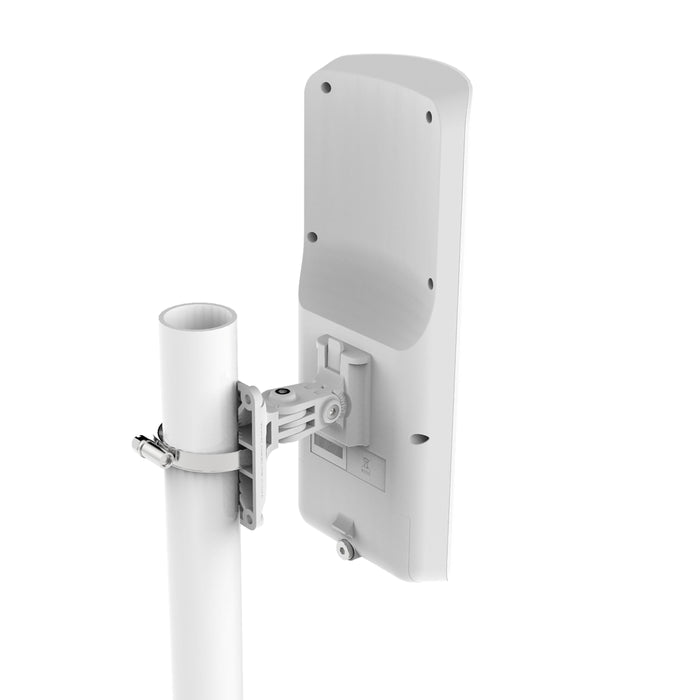

MikroTik mANTBox 2 12s is long range 12dbi 120 degrees integrated Base Station for 2.4 GHz. The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB911 device, the mANTBox comes ready to use with everything included. The device uses a high speed 600 MHz CPU, comes with the Gigabit Ethernet port and has a built in 802.11 b/g/n wireless device with up to 30 dBm output power. The mANTBox 2 12s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO included.

Product Specifications:

  • Product Code: RB911G-2HPnD-12S
  • CPU: AR9342 600 MHz
  • Size of RAM: 64 MB
  • Data storage: 128 MB NAND, 64 KB Flash
  • 10/100/1000 Ethernet ports 1
  • Wireless Built-in 2.4 GHz 802.11b/g/n, dual-chain
  • Wireless regulations Specific frequency range can be limited by country regulations
  • PCB temperature monitor: Yes
  • Voltage monitor Yes
  • Power input jack: 8-30 V DC, PoE in: 10-28 V DC
  • Power consumption 11 W
  • LEDs 8
  • Beeper Yes
  • Operating system MikroTik RouterOS, Level 4 license
  • Antenna Gain: 12dBi
  • Frequency Gain: 2412 - 2484MHz
  • Polarization: Veritical and Horizontal
  • 3DB Beamwidth - Azimuth: 120 degree
  • Dimensions: 140 x 248 x 82mm

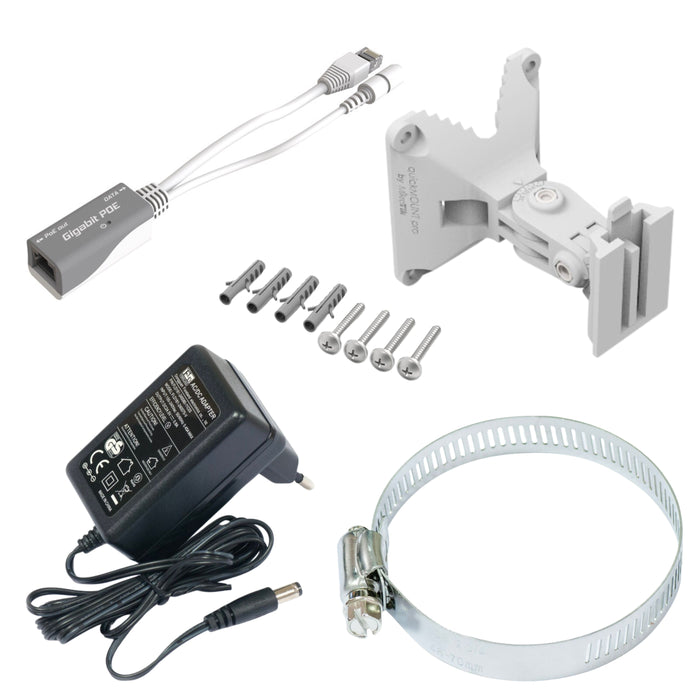

Product Includes:
  • (1) RB911G-2HPnD-12S
  • (1) Gigabit PoE Injector
  • (1) 24V 0.8A Power Adapter
  • (1) QuickMount Pro Mounting kit
  • (1) K-41 Screw Kit
  • (1) Metal Ring
  • (1) Quick Start Guide
