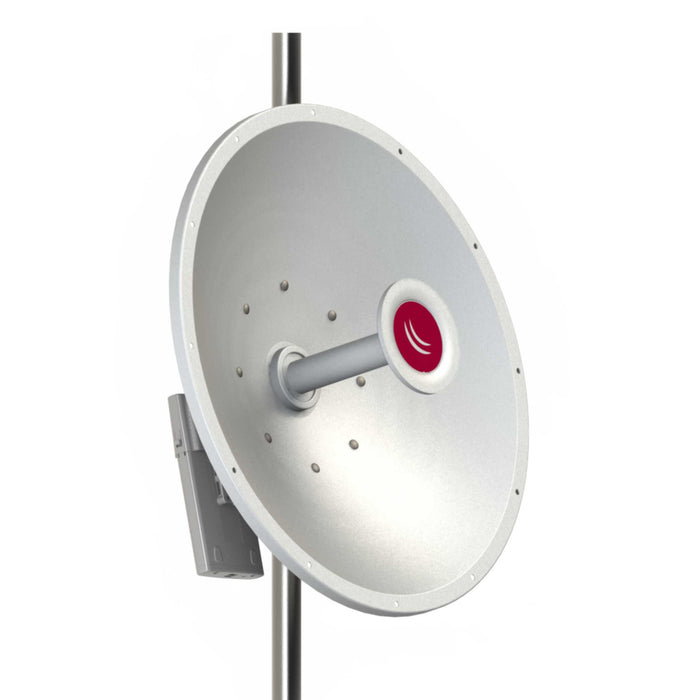

MikroTik mANT30 Antenna 4.7-5Ghz 30dBi Dual-Pol 45deg Slant Dish with Precision Alignment Mount (RP-SMA patch cables included)

MTAD-5G-30D3-PA by MikroTik
Original price $142.95 - Original price $142.95
Original price
$142.95
$142.95 - $142.95
Current price $142.95

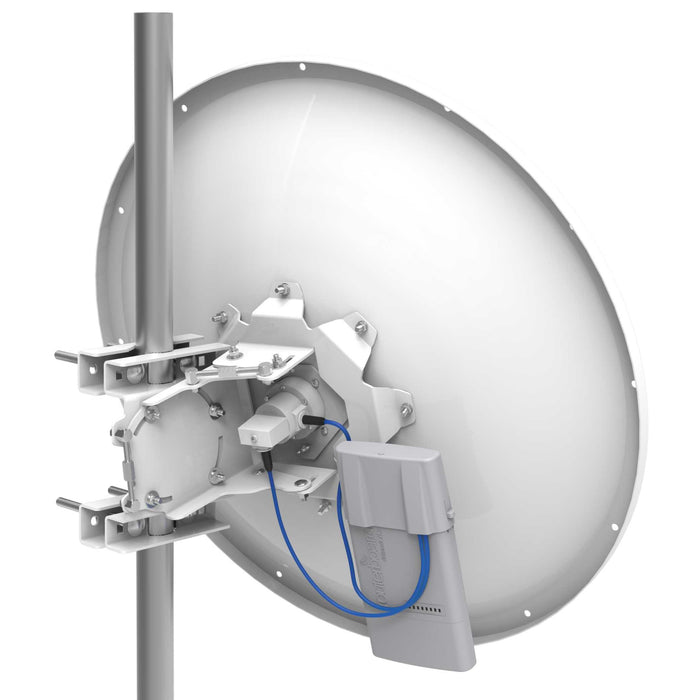

The MikroTik MTAD-5G-30-series is a carrier-class 30dBi antenna, designed to seamlessly with MikroTik Basebox for a backhaul Point to Point link. Installing the BaseBox onto the antenna requires no special tools, you simply snap it into place with the mounts provided and voila! a powerful long-range Point to Point link is at your fingertips. This dish can be adjusted to a slanted polarization at 45deg. The instructions can be found here.


Product Features:
  • Reduce RF interference in signal congested areas
  • Reduce the impact on local microwave devices
  • Unify the channel output if link deployed over a body of water
Product Specifications:
  • Frequency Range: 4.7-5.875 GHz
  • Gain: 30dBi typically
  • Dual Polarization: Vertical and Horizontal
  • 3dB Beamwidth: +/-2.5 deg
  • Standards: Complies with EN 302 326 DN1, DN2, DN3, DN5
  • VSWR: ≤ 1.4 type, ≤ 1.8 max
  • Port to Port Isolation: >40dB min
  • Front-to-Back Ratio: >30 dB
  • Cross Polarization: >40 dB
  • Power Rating: 100 watts
  • Impedance: 50 ohms
  • Elevation adjustment range: +/- 15 deg
  • Reflector: Aluminum
  • Outdoor Rating: ETSI EN 300 019-2-4
  • Wind Survivability: 125mph (201kph)
  • Wind Load (125 mph): 400 lbs, 174 lbs with radome
  • Connector (2): Type RPSMA

Product Includes:


(1) Dish Antenna

(2) RP-SMA Male to RP-SMA Male Cables

(1) Mounting Bracket for BaseBox Radio

Self-Bonding Tape for Insulating RF Cables

Precise Alignment Mechanisms


Product Documentation:


MTAD-5G-30D3-PA Data Sheet

MikroTik MTAD-5G-30D3-PA Assembly Guide

MikroTik mANT30 Polarization Slant Guide
