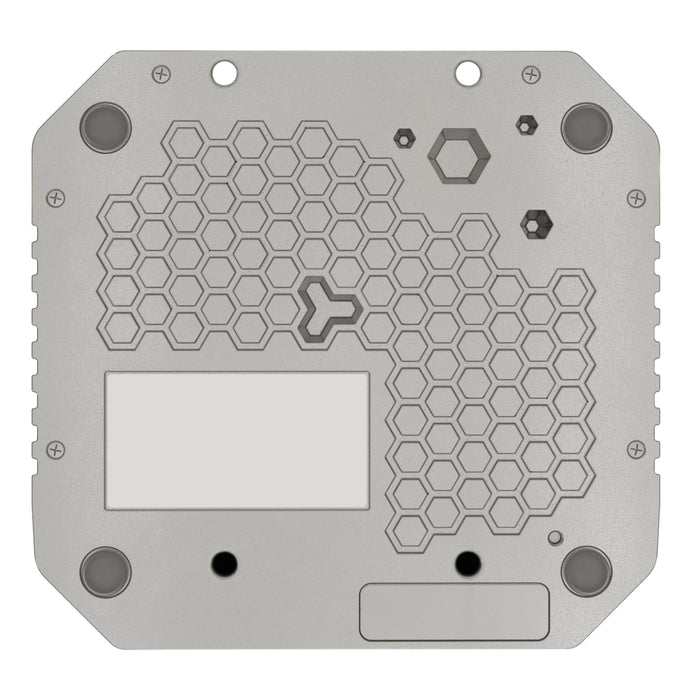

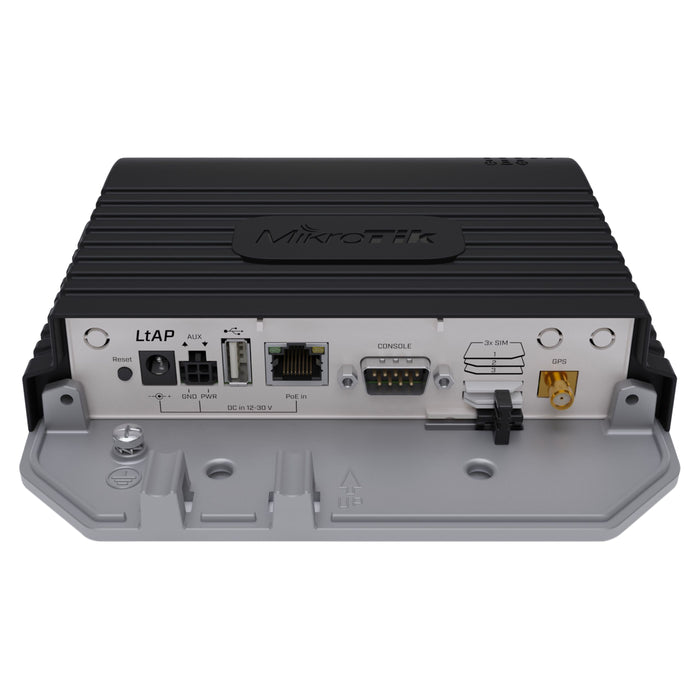

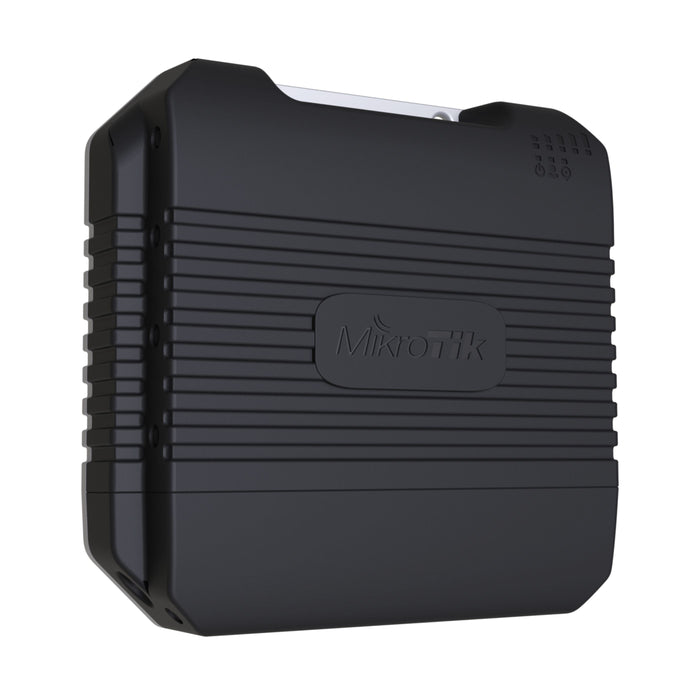

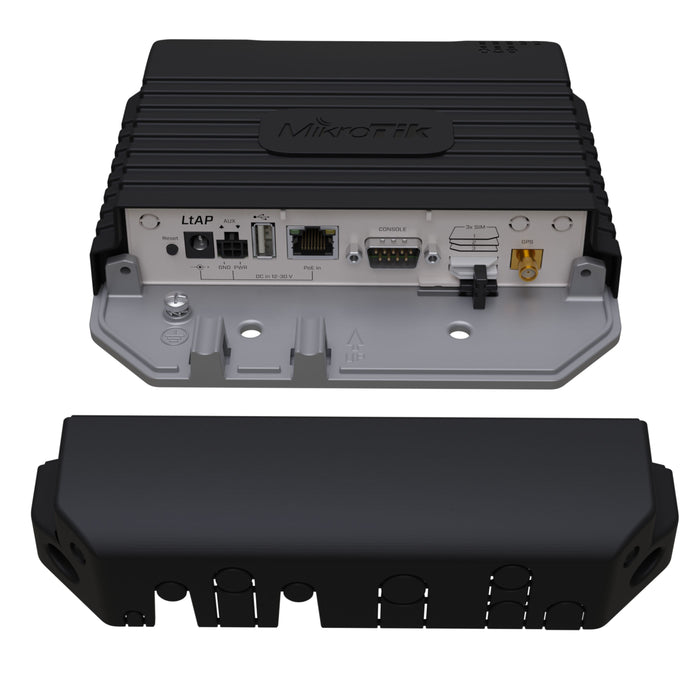

MikroTik LtAP 2.4GHz Access Point w/Built in GPS (without LTE card) [RBLtAP-2HnD]

RBLtAP-2HnD by MikroTik
Save 12% Save 12%
Original price $199.00
Original price $199.00 - Original price $199.00
Original price $199.00
Current price $175.95
$175.95 - $175.95
Current price $175.95

MikroTik LtAP LTE kit is a compact weatherproof wireless access point with a built in cellular modem that supports 4G (LTE) connectivity. Connect to the LtAP’s built-in high power 2.4 GHz 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP LTE kit also has one Gigabit Ethernet LAN port for wired devices. The RS232 serial port gives you console access for debugging. The unit comes with two miniPCIe slots (one already populated with LTE modem), offering many expansion options. For example, you can install second LTE modem for redundancy, or 5 GHz interface to have dual concurrent 2.4 GHz / 5 Ghz AP + LTE. Unit is powered by Dual-Core 880 MHz CPU and 128 MB RAM to deal with heavy loads.

Does not include LTE modem

Product Features:

  • 2.4 GHz AP in a rugged case
  • LTE installed in miniPCIe slot
  • Second miniPCIe slot for expansions
  • Three Mini SIM slots
  • Gigabit Ethernet port
  • Built-in GPS
  • Many powering options (DC jack, POE-in, automotive)
  • Serial port and full size USB for other devices
  • Perfect for cars or outdoor mobile applications
Product Specifications:
  • CPU: Dual-core MediaTek MT7621 880 MHz
  • Size of RAM: 128
  • Storage: 16 MB flash
  • 10/100/1000 Ethernet Ports: 1
  • Wireless: 2.4 GHz 802.11b/g/n dual-chain
  • Wireless Regulations: Specific frequency range will be limited by country regulations
  • Wireless Antenna Max Gain: 2.5dBi
  • LTE Antenna Max Gain: 4 dBi (with u.FL connector)
  • Antenna Beam Width: 360°
  • LTE Category: -
  • 3G Category: -
  • 2G Category: -
  • Supported Input Voltage: DC jack or automotive connector 12 - 30 V
  • PoE In: Passive PoE 12 - 30 V
  • Dimensions: 170 x 162 x 40 mm
  • Operating temperature: -40°C .. +70°C
  • Operating system: RouterOS, License level 4
  • Mini SIM slots: 3
  • MiniPCIe slot #1: Top slot supports PCIe and USB 2.0 cards, but is shared with the USB 2.0 type A port (can use either USB port or miniPCIe slot at the same time)
  • MiniPCIe slot #2: Bottom slot supports only USB (2.0 and 3.0) miniPCIe modems (no PCIe support)
  • USB port: 1 USB 2.0 port type A (can only be used if miniPCIE slot #1 is not used)
  • Built-in GPS: Yes (external antenna option via MMCX connector)
  • Serial port: RS232
  • Max power consumption: 24W

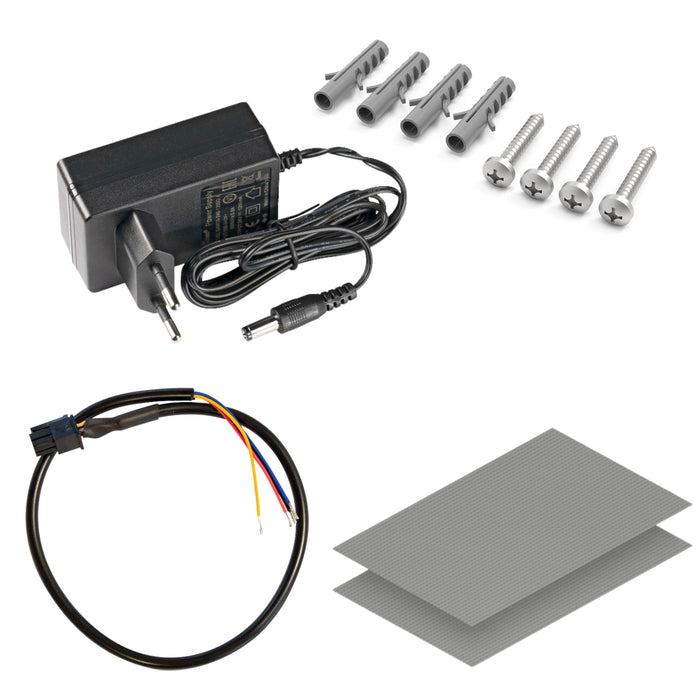

Product Includes:
  • (1) MikroTik LtAP
  • (1) Power Adapter (24V 1.2A)
  • (1) Screw Kits
  • (1) Automotive Cable
