MikroTik LtAP Mini Series 2.4GHz 802.11b/g/n Dual-Chain 1.5dBi Access Point US

RB912R-2nD-LTm&R11e-LTE-US by MikroTik
Original price $142.95 - Original price $142.95
Original price
$142.95
$142.95 - $142.95
Current price $142.95

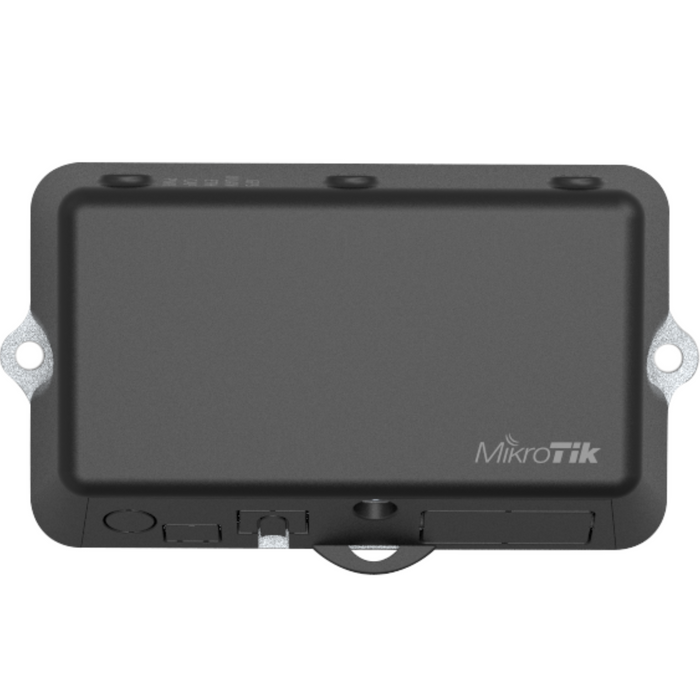

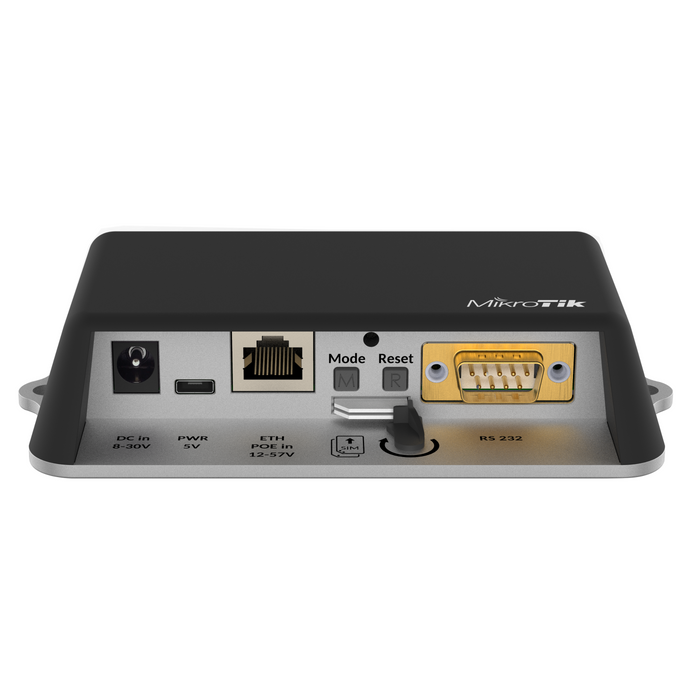

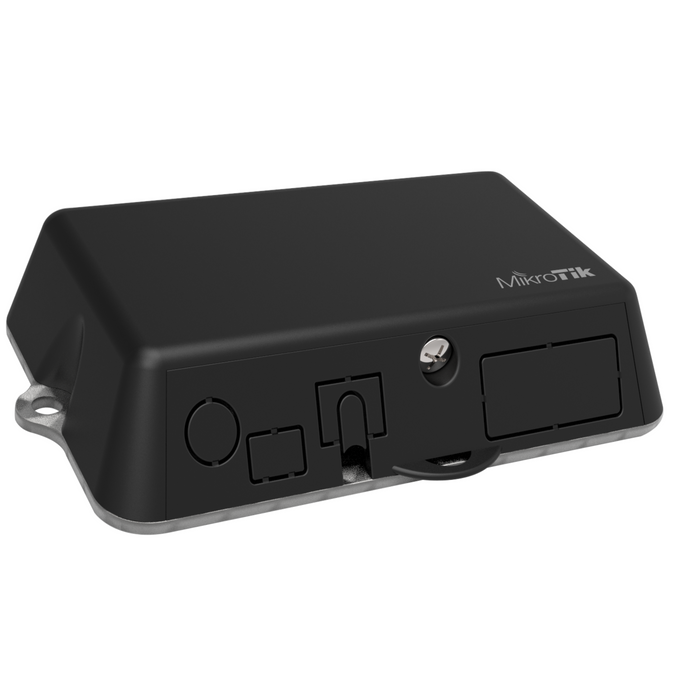

MikroTik LtAP mini LTE kit is a small weatherproof 2.4 GHz wireless access point with a built-in cellular modem that supports 3G and 4G (LTE) connectivity. It has a 10/100 Ethernet port for your wired devices and RS232 serial port gives you console access for management. You can connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The LtAP mini LTE kit-US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in United States, Canada and Latin America. Product Features • 2.4 GHz AP in a rugged case • miniPCIe for LTE • Two SIM slots • Built in GPS • Serial port for other devices • Perfect for cars or outdoor mobile applications Product Specifications • Product Code: RB912R-2nD-LTm&R11e-LTE-US • CPU: QCA9531 650 MHz • Size of RAM: 64 MB • Storage: 16 MB • 10/100 Ethernet ports: 1 • Wireless: Built-in 2.4 GHz 802.11b/g/n, dual-chain • Wireless chip model: QCA9531 • Wireless regulations: Specific frequency range can be limited by country regulations • Antenna beam width: 360° • Wireless antenna gain: 1.5 dBi • GPS: Built-in MT3337V, with uUFL RF connector and active antenna support • PoE in: Yes • SIM slot: 2 Mini SIM slots • LTE modem: Included • LTE category: 4 (150Mbps Downlink, 50Mbps Uplink) • 3G category: R8 (Cat24 - 42.2Mbps Downlink), R7 (Cat14 - 21.1Mbps Downlink) • 2G category: Class12 • LTE antenna gain: 3.5 dBi (with uFL connector) • Serial port: RS232 (shared with GPS port) • Supported input voltage: PoE in: 10 V - 57 V (Passive PoE and 802.3af/at with unshielded cable) • DC jack: 8 - 30 V • MicroUSB: 5 V • Dimensions: 139 x 77 x 28,5 mm • Operating temperature: -40°C .. +70°C tested • License level: 4 • Operating System: RouterOS • Max Power Consumption: 9 W Supported Bands • LTE (FDD) bands 2(1900)/4(1700)/5(850)/12(700) • 3G bands 2(1900)/5(850) Product Includes • (1) MikroTik LtAP Access Point • (1) PoE Injector • (1) Power Adapater (24V 1.2A) • (1) User Manual Product Documenation MikroTik LtAP Data Sheet
