MikroTik LtAP mini series 2.4GHz 802.11b/g/n dual-chain 1.5dBi Access Point INTL

RB912R-2nD-LTm&R11e-LTE by MikroTik
Original price $142.95 - Original price $142.95
Original price
$142.95
$142.95 - $142.95
Current price $142.95

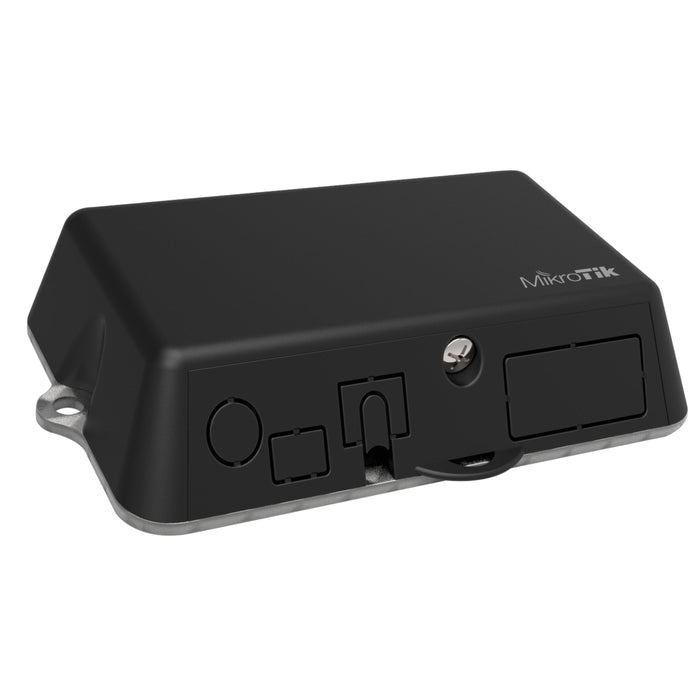

MikroTik LtAP mini LTE kit is a small weatherproof 2.4 GHz wireless access point with a built-in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. It has a 10/100 Ethernet port for your wired devices and RS232 serial port gives you console access for management. INTL. You can connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging and supports international LTE bands 1,2,3,7,8,20,38 and 40. INTL

Product Features:
  • 2.4 GHz AP in a rugged case
  • miniPCIe for LTE
  • Two SIM slots
  • Built in GPS
  • Serial port for other devices
  • Perfect for cars or outdoor mobile applications
Product Specifications:
  • Product Code: RB912R-2nD-LTm&R11e-LTE
  • CPU: QCA9531 650 MHz
  • Size of RAM: 64 MB
  • Storage: 16 MB
  • 10/100 Ethernet ports: 1
  • Wireless: Built-in 2.4 GHz 802.11b/g/n, dual-chain
  • Wireless chip model: QCA9531
  • Wireless regulations: Specific frequency range can be limited by country regulations
  • Antenna beam width: 360°
  • Wireless antenna gain: 1.5 dBi
  • GPS: Built-in MT3337V, with uUFL RF connector and active antenna support
  • PoE in: Yes
  • SIM slot: 2 Mini SIM slots
  • LTE modem: Included
  • LTE category: 4 (150Mbps Downlink, 50Mbps Uplink)
  • 3G category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
  • 2G category: Class12
  • LTE antenna gain: 3.5 dBi (with uFL connector)
  • Serial port: RS232 (shared with GPS port)
  • Supported input voltage: PoE in: 10 V - 57 V (Passive PoE and 802.3af/at with unshielded cable)
  • DC jack: 8 - 30 V
  • MicroUSB: 5 V
  • Dimensions: 139 x 77 x 28,5 mm
  • Operating temperature: -40°C .. +70°C tested
  • License level: 4
  • Operating System: RouterOS
  • Max Power Consumption: 9 W
Supported Bands
  • LTE (FDD) bands: 1/2/3/7/8/20 (2100/1900/1800/2600/900/800)
  • LTE (TDD) bands: 38/40 (2600/2300)
  • 3G bands: 1/2/5/8 (2100/1900/800/900)
  • 2G bands: 2/3/5/8 (1900/1800/800/900)

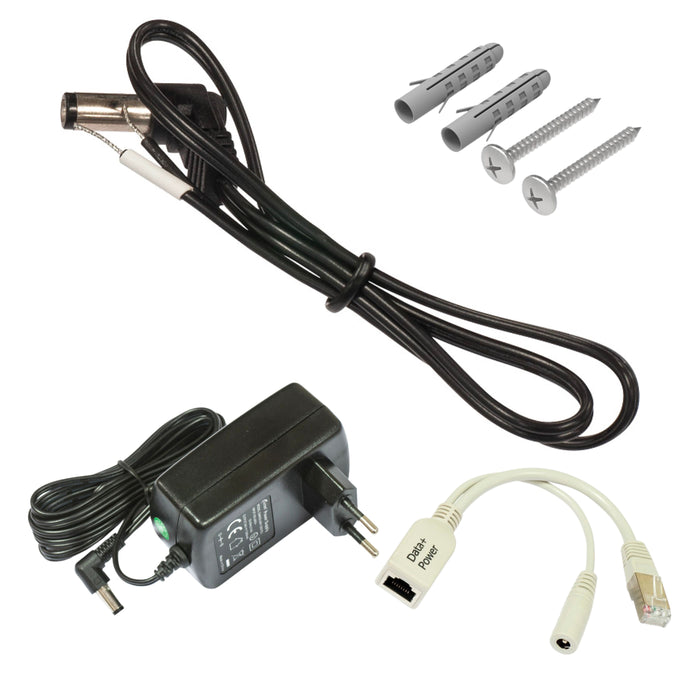

Product Includes:
(1) MikroTik LtAP Access Point
(1) PoE Injector
(1) Power Adapter (24V 1.2A)
(1) User Manual
