MikroTik LtAP 2.4 GHz LTE LR8 LoRa Access Point Wireless Kit with built-in GPS

RBLtAP-2HnD&R11e-LTE&LR8 by MikroTik
Sold out
Original price $322.95 - Original price $322.95
Original price
$322.95
$322.95 - $322.95
Current price $322.95

Inside the heavy-duty case, there is a powerful 2.4 GHz wireless access point with a Gigabit Ethernet port, built-in GPS and two internal LTE antennas. There are two miniPCIe slots – one is used for the LTE modem, the other one is populated with the concentrator gateway card for LoRa technology. To fully understand what this device can do, we need to talk about Internet-of-things. Let’s start with an example. Imagine a farmer who has cattle, an irrigation system for the crops, and storage for the goods. On a day-to-day basis he needs to:

  • track the animals;
  • monitor the grain stock level;
  • control the irrigation system.

For all these tasks the farmer can use low-cost wireless sensors. By connecting them to the LtAP - he can gather the real-time data, combine it with the location information of the vehicle, and send it to the cloud via high-speed LTE. Now all the information he needs to monitor and plan the growth of his farms is in one place. So simple and so handy. The wireless technology behind this is called LoRa, which stands for Long Range. It requires very low power. That’s why LoRa is the best way to build your Internet-of-things solutions. LoRa can be used for anything from smart homes to agriculture, supply chains, logistics and even smart cities. Monitor parking spaces, track utility services, measure environmental data and so on - the possibilities are endless.

There is even a free server infrastructure that you can use - The Things Network, fully supported by the LtAP LR8 LTE kit. With a large community of enthusiasts and developers around the world, you will never be alone with your questions regarding the LoRa network. There are 3 MiniSIM slots you can use to set up automatic switching between mobile operators. Very convenient if you have to cross the border regularly. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same goes for the GPS – you can attach an external antenna as well. By the way, we have provided a simple application example on the RouterOS documentation website, so you can start real-time location tracking right away!

Product Features:

  • All-in-one: high-speed LTE, GPS, Internet-of-Things
  • 2.4 GHz AP in a rugged heavy duty case
  • 2 MiniSIM slots- perfect for roaming
  • Many powering options including automotive
  • Ready for the "The Things Network" integration
  • Gigabit Ethernet with PoE-in
  • Extreme Versatility with the powerful RouterOS
  • Supported input voltage: DC jack or automotive connector (Designed for 12 V automotive power system optional use at 24 V systems with max charging voltage at 27 V): 12 - 30 V
  • PoE-in Passive PoE: 12 - 30 V
  • Number of DC inputs: 3
  • Max power consumption (without attachments): 12 W
  • Max power consumption: 25 W
Product Specifications:
  • CPU: Dual-core MediaTek MT7621 880 MHz
  • Size of RAM: 128 MB
  • Storage: 16 MB flash
  • Number of 1G Ethernet ports: 1
  • Wireless: 2.4 GHz 802.11b/g/n dual-chain
  • Wireless antenna max gain: 2.5 dBi
  • U.FL connector for optional external antenna: Up to 4 dBi
  • Antenna beam width: 360°
  • LTE category: 4 (150 Mbps downlink, 50 Mbps uplink)
  • 3G category: R7 (21 Mbps downlinks, 5.76 Mbps uplink)
  • 2G category: Class12
  • Operating temperature -40°C to +70°C
  • Operating system: RouterOS, License level 4
  • SIM slots: 3 (Slot #2 and slot #3 available, Slot #1 is not connected to the LTE interface)
  • USB port: 1 USB 2.0 port type A (Must remove R11e-LR8 to access the USB functionality
  • Built-in GPS: Yes
  • Serial port: RS232

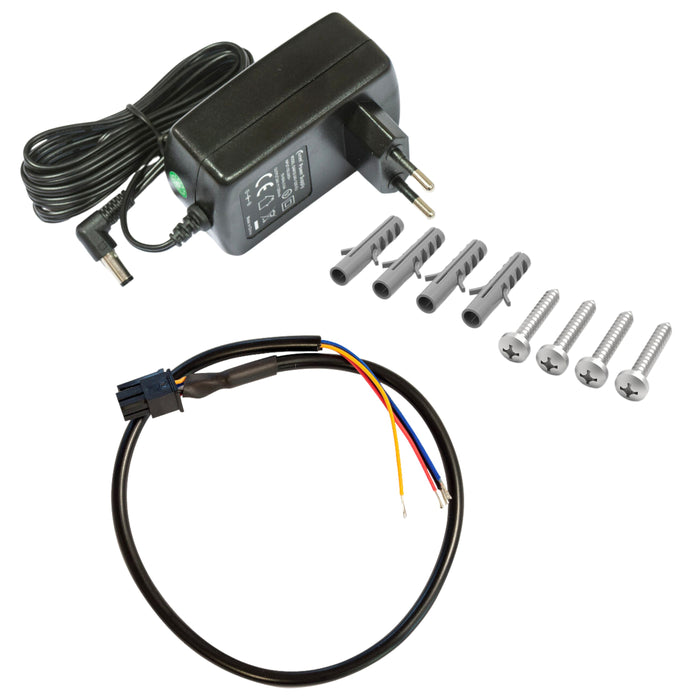

Product Includes:
(1) LtAP LTE kit
(1) 24 V 1.2 A Power Adapter
(1) K-67 Fastening Set
(1) Automotive Cable
