MikroTik LHG XL 2 Long Range Antenna 21dBi 2.4GHz INTL

RBLHG-2nD-XL by MikroTik
Sold out
Original price $65.95 - Original price $65.95
Original price
$65.95
$65.95 - $65.95
Current price $65.95

LHG XL 2 International Version supports: 2412 - 2484MHz range (Specific frequency range can be limited by country regulations).

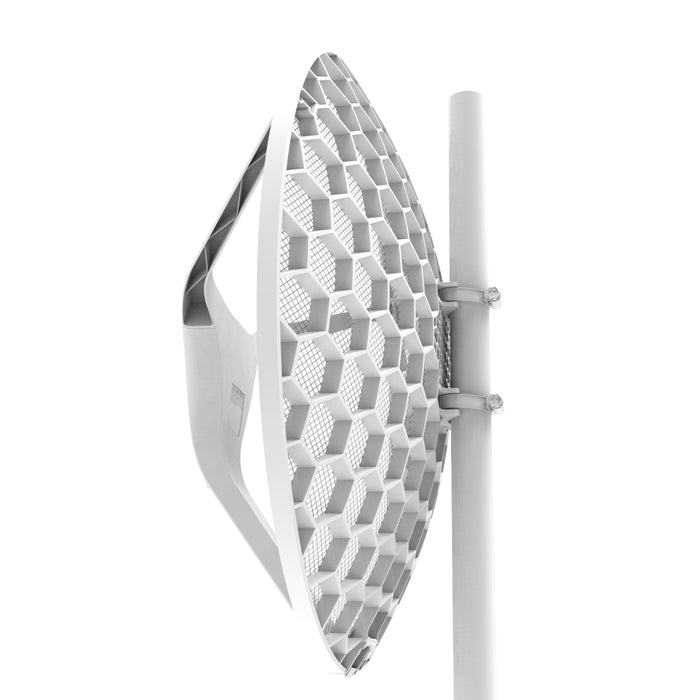

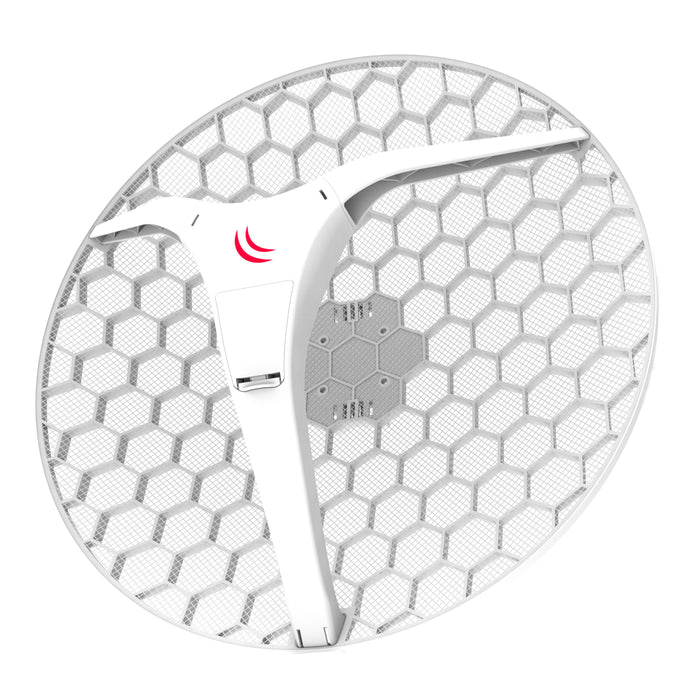

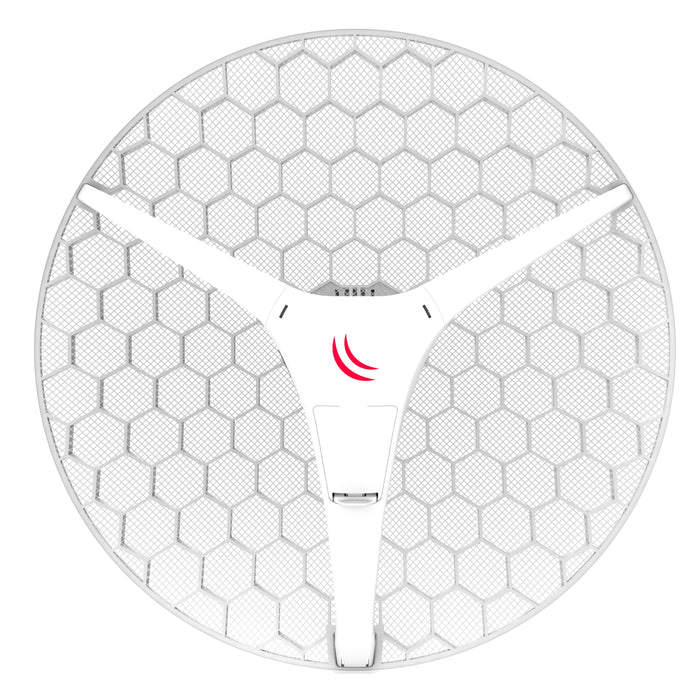

The RBLHG-2nD-XL is a rugged outdoor light head grid antenna with the wireless already built in! The device has a 21±0.5dBi antenna and a built-in 2.4 GHz 802.11b/g/n, dual-chain wireless. The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The LHG XL 2 model allows to reach even longer distances.


Product 2 Specifications:

  • CPU Nominal Frequency: 650 MHz
  • CPU Core Count: 1
  • Size of RAM: 64 MB
  • 10/100 Ethernet Ports: 1
  • Wireless Standards: Built-in 2.4GHz 802.11b/g/n, dual chain
  • Wireless Chip Model: QCA9533
  • PoE In: Yes
  • Supported Input Voltage: 10V - 30V passive PoE
  • Operating Temperature Range: -40° to 70°C
  • Antenna Gain DBI: 21±0.5dBi
  • Max Power Consumption: 5W
  • Number of Chains: 2
  • Storage Type: FLASH
  • Storage Size: 16 MB

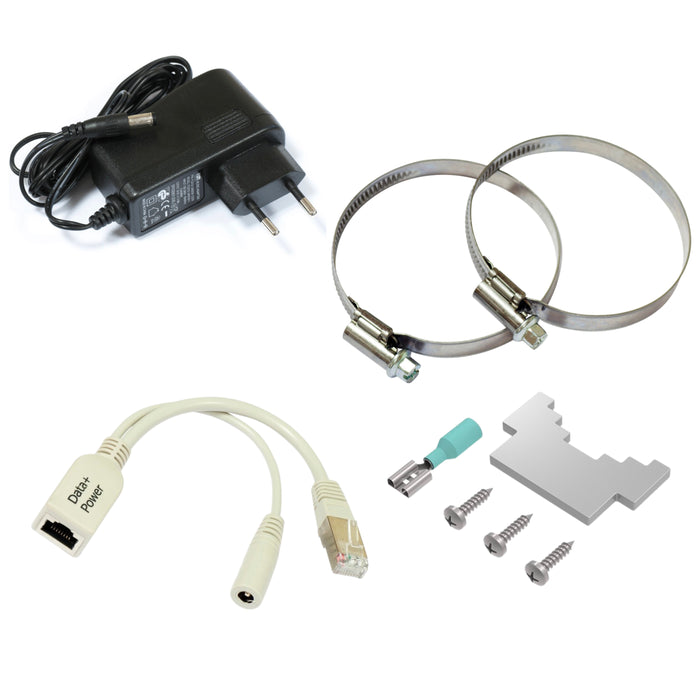

Product Includes:


(1) RBLHG-2nD-XL

(1) 24V 0.38A power adapter

(2) Metal rings

(1) PoE Injector

(1) K-LHG kit

(1) Quick Start Guide


Product Documentation:


RBLHG-2nD INTL Data Sheet
