MikroTik LHG 5GHz High Powered XL AP 27dBi Dual-Pol Integrated Antenna INTL [RBLHG-5HPnD-XL]

MikroTik LHG 5GHz High Powered XL AP 27dBi Dual-Pol Integrated Antenna INTL [RBLHG-5HPnD-XL]

RBLHG-5HPnD-XL by MikroTik
MikroTik RBLHG-5HPnD-XL Datasheet
Sold out
$89.00
$89.00 - $89.00
$89.00
$85.95
$85.95 - $85.95
$85.95

LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

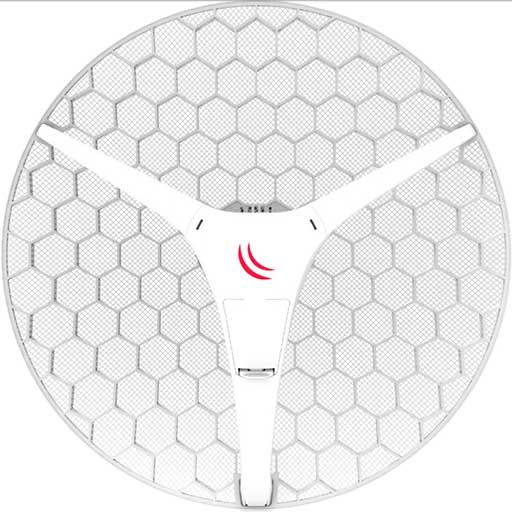

RBLHG-5HPnD-XL - The RBLHG-5HPnD-XL is an extra large version of the rugged outdoor light head grid antenna with the wireless already built in! The device has a 27dBi antenna and a dual chain 802.11a/n wireless transmitter. Now with two times more output power than the original LHG 5 -up to 630mw and is designed to reach up to 60% longer distances!

Product Specifications:

  • CPU Nominal Frequency: 600 MHz
  • CPU Core Count: 1
  • Size of RAM: 64 MB
  • 10/100 Ethernet Ports: 1
  • Wireless Standards: 802.11a/n, dual chain
  • Wireless Chip Model: AR9344
  • PoE In: Yes
  • Supported Input Voltage: 10V - 28V passive PoE
  • Dimensions: 550 x 245 mm (21.7 x 9.64"); Package: 585 x 595 x 138 mm (23 x 5.4 x 23.4")
  • Operating System: RouterOS
  • Operating Temperature Range: -40° to 70°C
  • License Level: 3
  • Antenna Gain DBI: 27
  • Max Power Consumption: 7W
  • Number of Chains: 2
  • Storage Type: FLASH
  • Storage Size: 16 MB
Product Includes:
  • (1) RBLHG-5HPnD-XL
  • (1) 24V 0.38A power adapter
  • (2) Metal rings
  • (1) PoE Injector
  • (1) K-LHG kit
