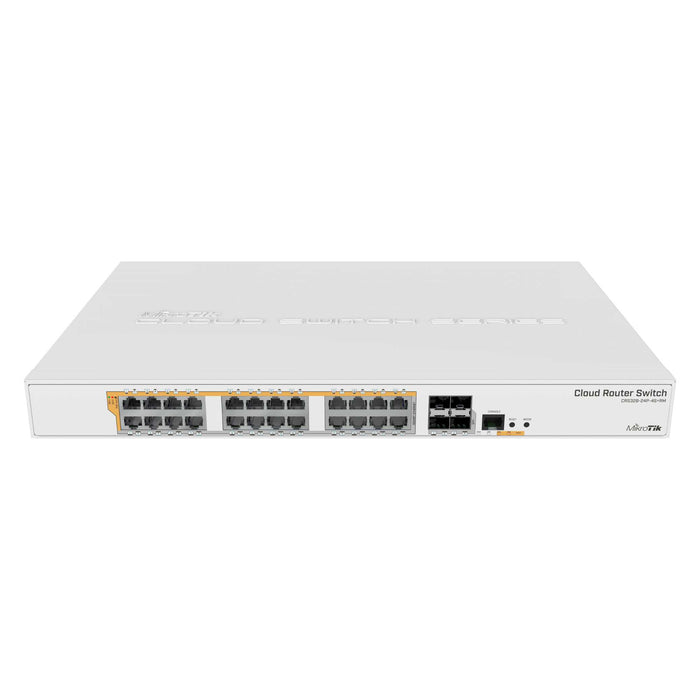

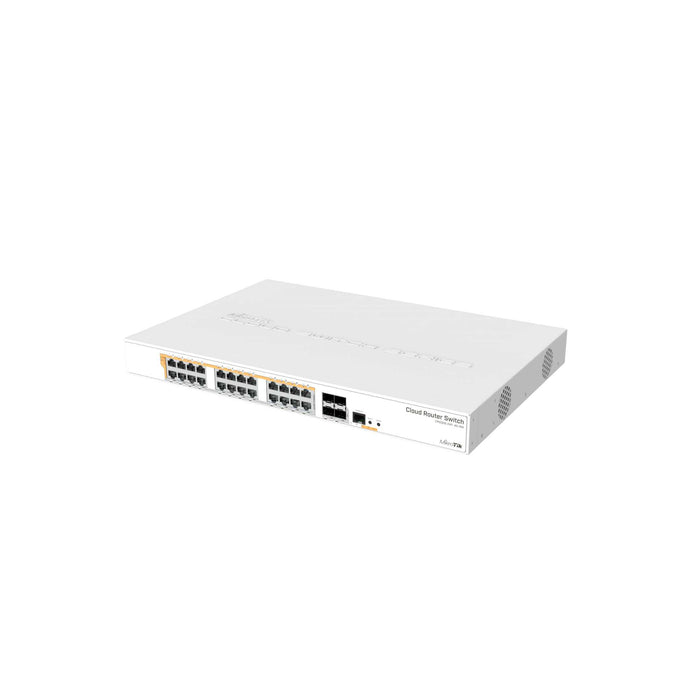

MikroTik CRS328 Cloud Router Switch 24 Gigabit Ethernet ports 4 SFP+

CRS328-24P-4S+RM by MikroTik
Sold out
Original price $465.95 - Original price $465.95
Original price
$465.95
$465.95 - $465.95
Current price $465.95

The MikroTik Cloud Router Switch CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The CRS328 consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.


The MikroTik CRS328 has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.


Product Features:

  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K simultaneous VLANs
  • Port isolation
  • Port security
  • Broadcast storm control
  • Port mirroring of ingress/egress traffic
  • STP / RSTP / MSTP
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP
  • 10218-byte jumbo frames support
  • IGMP snooping
  • IEEE 802.3ad and static link aggregation
Product Specifications:
  • Product code: CRS328-24P-4S+RM:
  • CPU: Dual-Core ARM v7 800MHz:
  • RAM: 512MB
  • Storage type: Flash
  • Storage size: 16MB
  • Switch chip model: 98DX3236A1
  • 10/100/1000 Ethernet ports: 24
  • SFP+ cages: 4
  • Operating system: SwOS / RouterOS (Dual boot)
  • Supported input voltage: 100 - 240 V
  • Dimensions: 443 x 305 x 44 mm
  • Operating temperature: -20°C to +60°C tested
  • Max power consumption: 44 W
  • Serial port: RJ45
  • License Level: 5
Quick Specifications:
  • 24 Gigabit Ethernet ports
  • 4 SFP+ ports
  • RJ45 serial console port
  • Non-Blocking throughput: 64Gbps
  • Switching capacity: 128Gbps
  • Forwarding rate: 95.2Mpps
  • Maximum power consumption: 44W (without PoE devices connected)
  • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE)
  • Temperature based fan control
  • 1U rackmount
Product Includes:


(1) MIkroTik CRS328-24P-4S+RM Cloud Router Switch

(1) IEC power cord

(1) Rack ears

(1) User Guide


Product Documentation:


MikroTik CRS328-24P-4S+RM Data Sheet
