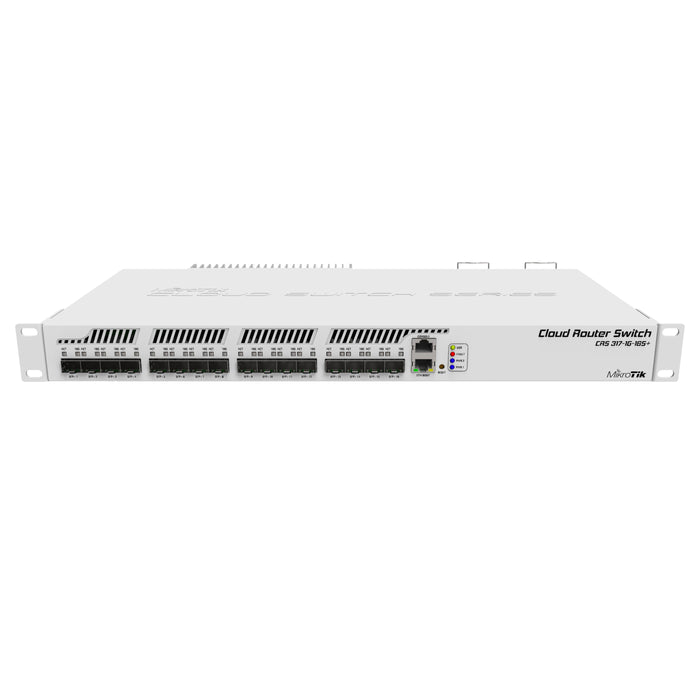

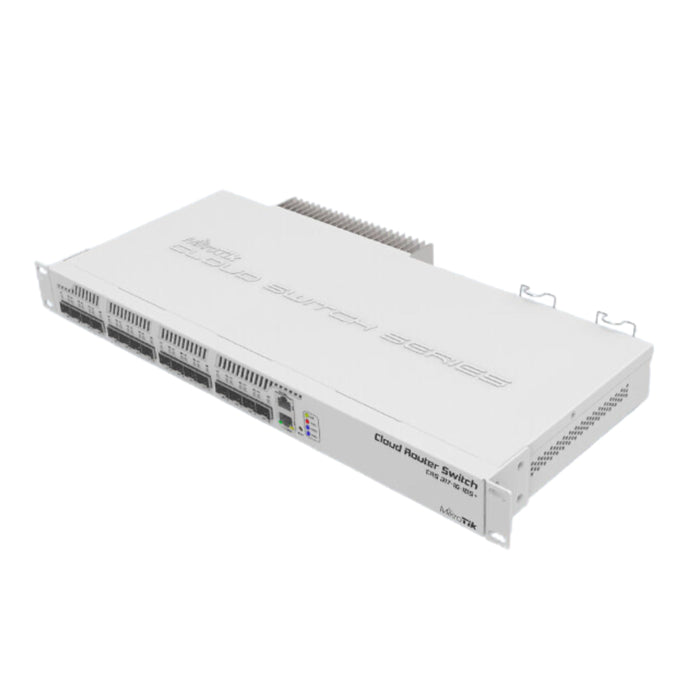

MikroTik CRS317 Cloud Router Switch w/ 16 SFP+ Cages

CRS317-1G-16S+RM by MikroTik
Original price $417.95 - Original price $417.95
Original price
$417.95
$417.95 - $417.95
Current price $417.95

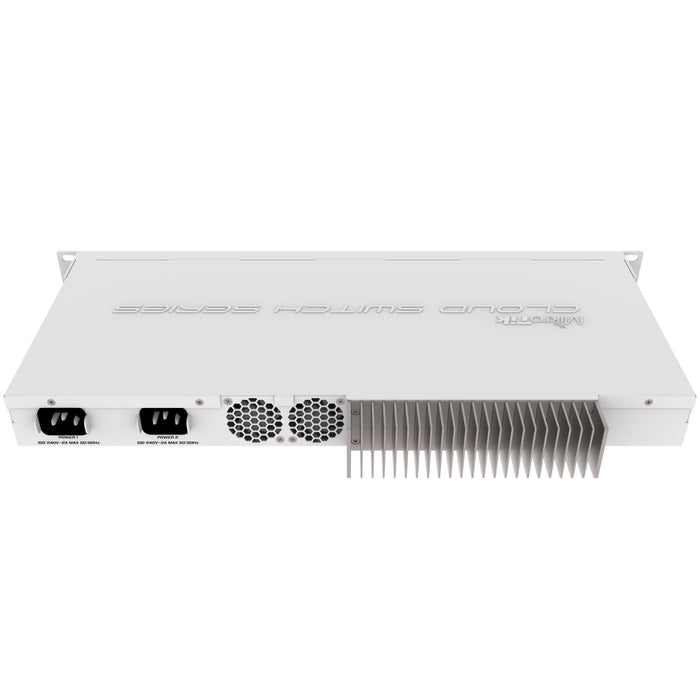

MikroTik CRS317 is a rack-mountable cloud router switch with layer 3 features, 16 SFP+ ports for 10GbE connectivity, and a 1GbE port for management. It's powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network. The unit has dual redundant power supplies and passive cooling case, so it's completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.


Product Features:

  • Boot option for SwOS or RouterOS
  • Non-blocking Layer 2 switching capacity
  • 16K host table
  • IEEE 802.1Q VLAN
  • Supports up to 4K simultaneous VLANs
  • Port isolation
  • Port security
  • Web-based GUI
  • 800MHz CPU
  • Broadcast storm control
  • Port mirroring of ingress/egress traffic
  • Rapid Spanning Tree Protocol
  • Link Aggregation (LACP)
  • Access Control List
  • MikroTik neighbor discovery
  • SNMP v2/v3
  • Rackmount and tabletop
Product Specifications:
  • CPU: 98DX8216B0 800MHz
  • Size of RAM: 1GB
  • Storage Type: Flash
  • Storage Size: 16MB
  • SFP+: 16 (supports both 1.25Gb SFP and 10Gb SFP+ modules; modules not included), DDMI support
  • Dimensions (inches): 17.45"x8.82"x1.73" (443x224x44mm)
  • License Level: 6
  • Operating System: RouterOS or SwitchOS
  • Number of AC Inputs: 2
  • AC Input Range: 110V to 240V
  • Redundant Supply: Yes
  • Max Power Consumption: 42W
  • Active Case Cooling: Yes
  • CPU Temperature Monitor: Yes
  • Operating Temperature: -40°F to 158°F (-40°C to 70°C)
  • LEDs: 38
  • Serial Port: RJ45
Product Includes:

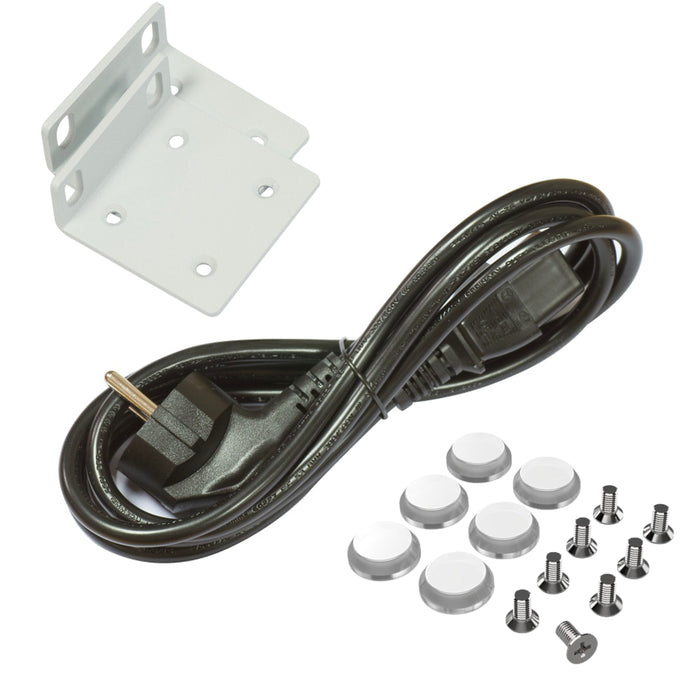

(1) MikroTik Cloud Router Switch(2) IEC Cord(2) Rackmount Ears


Product Documentation:


MikroTik CRS317-1G-16S+RM Datasheet
