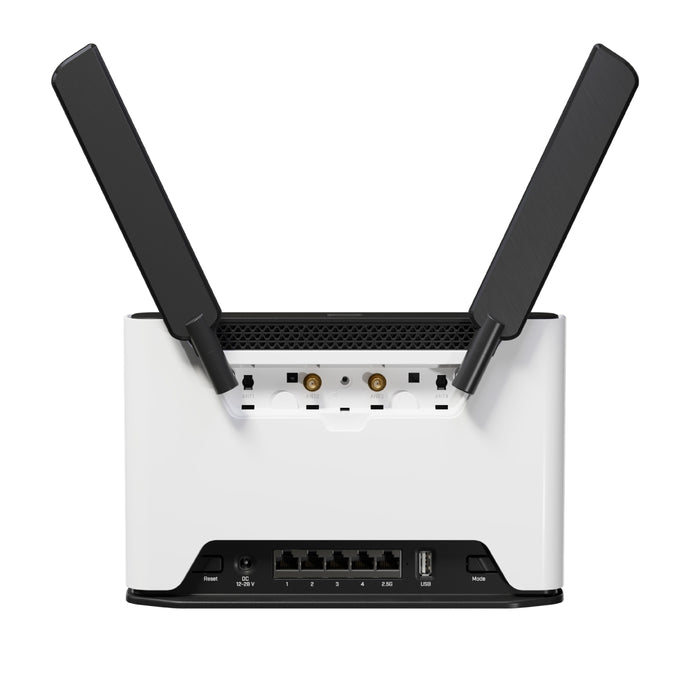

MikroTik Chateau LTE18 ax Quad-Core 802.11ax +Wave2 4x Gigabit LTE Mobile Router [S53UG+5HaxD2HaxD-TC&EG18-EA]

S53UG+5HaxD2HaxD-TC&EG18-EA by MikroTik
Original price $299.00
Original price $299.00 - Original price $299.00
Original price $299.00
Current price $268.95
$268.95 - $268.95
Current price $268.95
On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments.

The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.

The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

Product Features:

  • Now with 2.5 Gigabit Ethernet!
  • Powerful 1.8GHZ Quad-Core CPU
  • 802.11AX + WAVE2
  • Strong Dual-Band, Dual-Chain Wireless (3-6dbi)
  • 4 x Gigabit Ethernet Ports
  • The Fastest CAT18 LTE Modem
  • WPA3
Product Specifications:
  • Product code: S53UG+5HaxD2HaxD-TC&EG18-EA
  • CPU: Quad-Core IPQ-6010 1.8GHz
  • CPU architecture: ARM 64bit
  • Size of RAM: 1GB
  • RAM type: DDR3L
  • Storage: 128 MB, NAND
  • Number of 1G Ethernet ports: 4
  • Number of 2.5G Ethernet ports: 1
  • Micro SIM slots: 1
  • USB: 1 USB 3.0 type A
  • Number of M.2 slots: 1
  • Switch chip model: IPQ-6010
  • Wireless interface model: QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
  • Wireless: 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11ax dual-chain
  • LTE category: 18 (1.2 Gbps Downlink, 150 Mbps Uplink)
  • LTE modem: EG18-EA
  • TAC: 86981604
  • LTE antenna gain: 4 dBi
  • LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
  • LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)3G Category: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
  • 3G Bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
  • Dimensions: 240 x 156 x 44 mm
  • Operating system: RouterOS v7, License level 4
  • Operating temperature: -40°C to +65°C
Product Includes:
  • (1) MikroTik Chateau 5G ax
  • (1) 24V 1.2A Power Adapter
  • (1) UTP Flat Cable (1.5m)
  •
