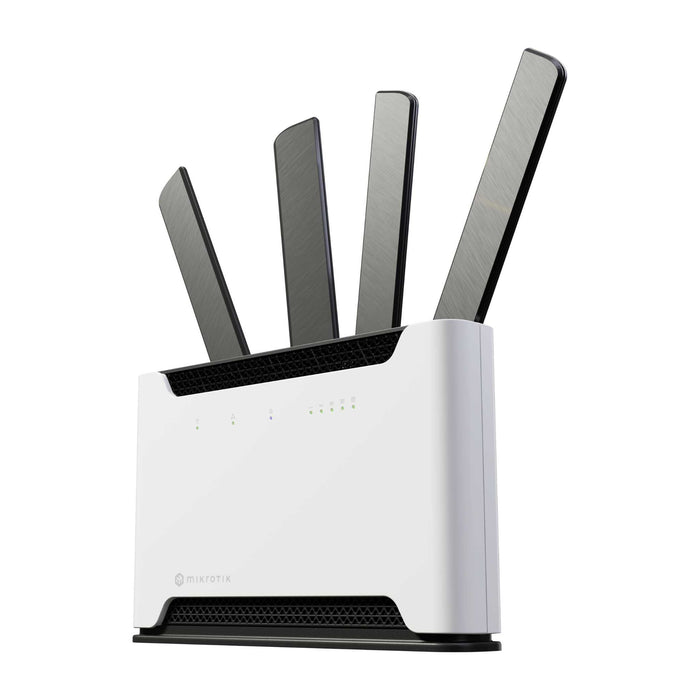

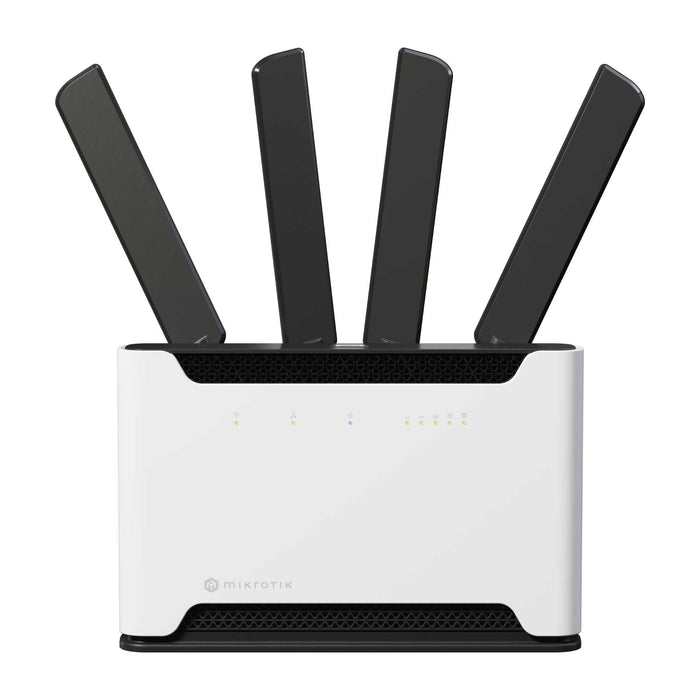

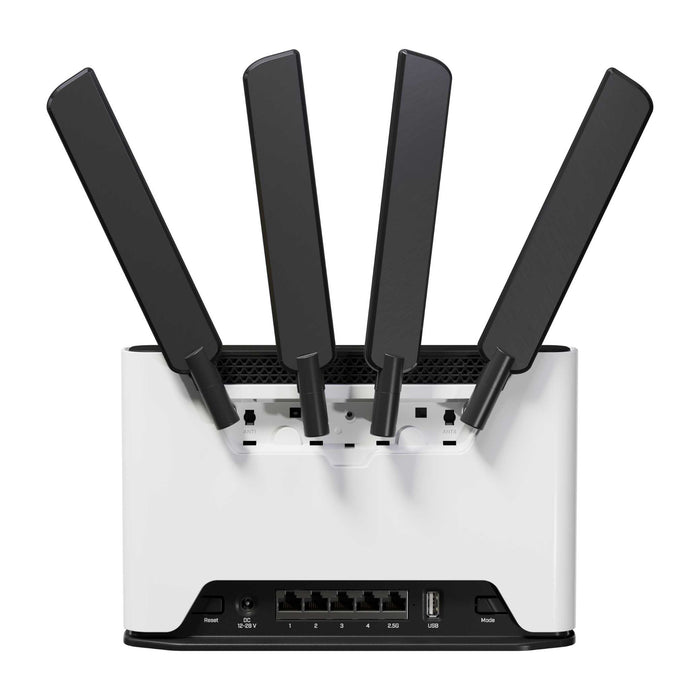

MikroTik Chateau 5G ax 2.5Gigagbit Ethernet Quad-Core 802.11ax+Wave2 LTE 5G Mobile Router

S53UG+M-5HaxD2HaxD-TC&RG502Q-EA by MikroTik
Sold out
Original price $565.95 - Original price $565.95
Original price
$565.95
$565.95 - $565.95
Current price $565.95

Product Features:

  • Now with 2.5 Gigabit Ethernet!
  • Powerful 1.8GHZ Quad-Core CPU
  • 802.11AX + WAVE2
  • Strong Dual-Band, Dual-Chain Wireless (3-6dbi)
  • 4 x Gigabit Ethernet Ports
  • The Fastest LTE / 5G Modem
  • WPA3

Product Specifications:

  • Product code: S53UG+M-5HaxD2HaxD-TC&RG502Q-EA
  • CPU: Quad-Core IPQ-6010 1.8GHz
  • CPU architecture: ARM 64bit
  • Size of RAM: 1GB
  • RAM type: DDR3L
  • Storage: 128 MB, NAND
  • Number of 1G Ethernet ports: 4
  • Number of 2.5G Ethernet ports: 1
  • Micro SIM slots: 1
  • USB: 1 USB 3.0 type A
  • Number of M.2 slots: 1
  • Switch chip model: IPQ-6010
  • Wireless interface model: QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
  • Wireless: 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11ax dual-chain
  • LTE category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
  • LTE modem: R11mL-RG502Q-EA
  • TAC: 86073604
  • 5G SA Category: 4.2 Gbps Downlink, 900 Mbps Uplink
  • 5G NSA Category: 5.0 Gbps Downlink, 650 Mbps Uplink
  • 3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
  • MIMO DL: 4x4 (5G SA FDD), 4x4 (5G NSA FDD), 4x4 (LTE FDD)
  • MIMO UL: 2x2 (5G SA FDD), 1x1 (5G NSA FDD), 1x1 (LTE FDD)
  • 5G SA FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) /20 (800 MHz) / 28 (700 MHz)
  • 5G SA TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) /78 (3500 MHz) / 79 (4700 MHz)
  • 5G NSA FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) /20 (800 MHz) / 28 (700 MHz)
  • 5G NSA TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 77 (3700 MHz) /78 (3500 MHz) / 79 (4700 MHz)
  • LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) /18 (800 MHz) / 19 (800 MHz) / 20 (800 MHz) / 26 (850MHz) /28 (700 MHz) / 32 (1500 MHz)
  • LTE TDD bands: 34 (2000 MHz) / 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) /41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
  • 3G bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 6 (850 MHz) / 8 (900MHz) /19 (800 MHz)
  • Dimensions: 240 x 156 x 44 mm
  • Operating system: RouterOS v7, License level 4
  • Operating temperature: -40°C to +70°C

Product Includes:
(1) MikroTik Chateau 5G ax
(1) 24V 1.2A Power Adapter
(1) UTP Flat Cable (1.5m)
