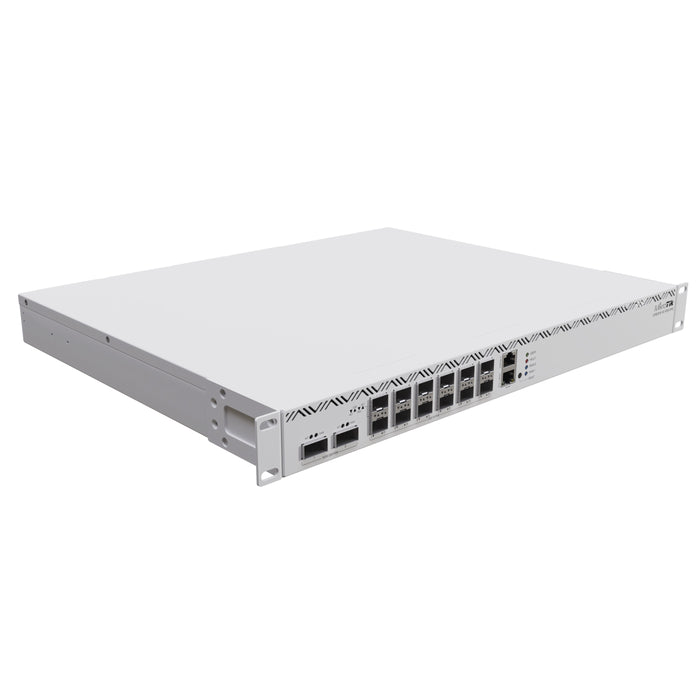

MikroTik CCR2216 2x QSFP28 12x SFP28 Cloud Core Router

MikroTik CCR2216 2x QSFP28 12x SFP28 Cloud Core Router

CCR2216-1G-12XS-2XQ by MikroTik
MikroTik CCR2216-1G-12XS-2XQ Datasheet
$2,795.00 - $2,795.00
$2,795.00
$2,795.00
$2,795.00 - $2,795.00
$2,795.00


Start your 100 Gigabit journey with  MikroTik's new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.


But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

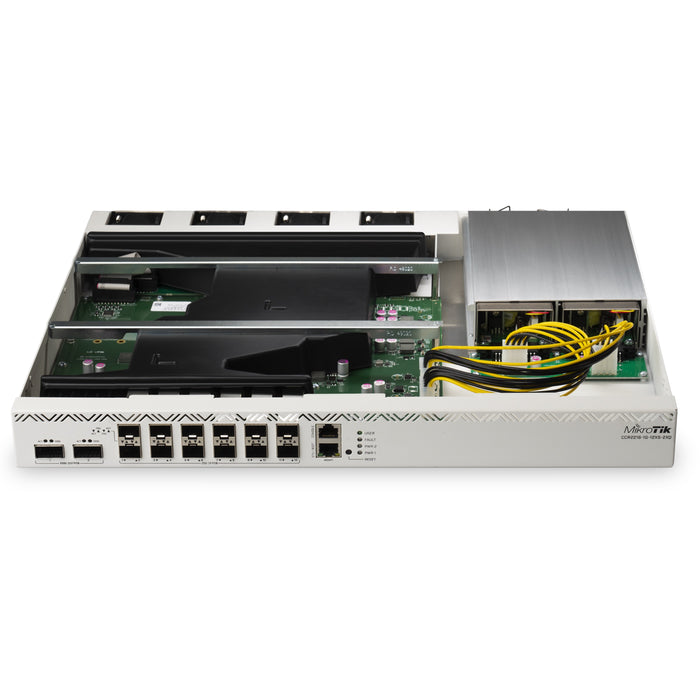

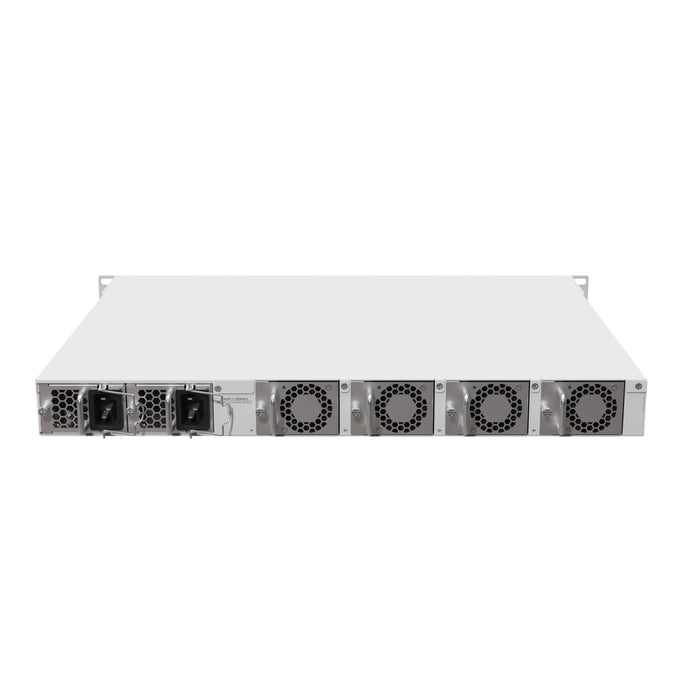

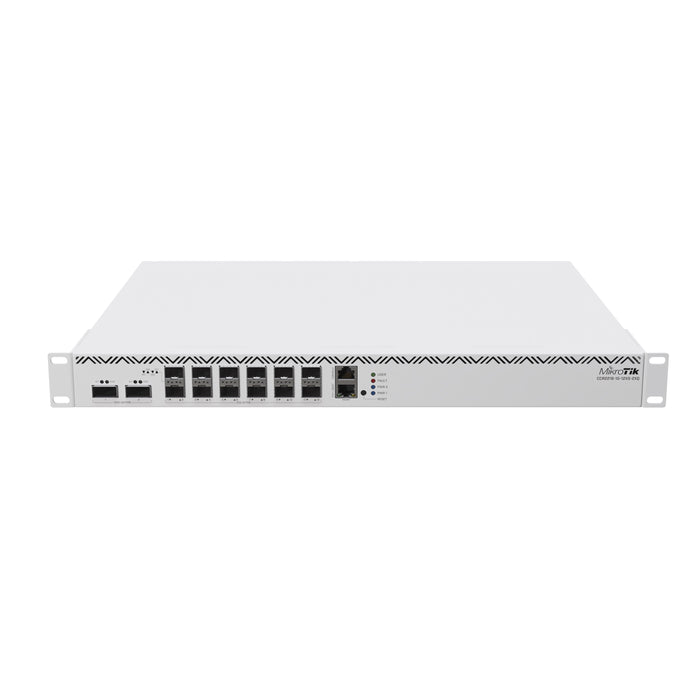

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.


You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!


Product Features:

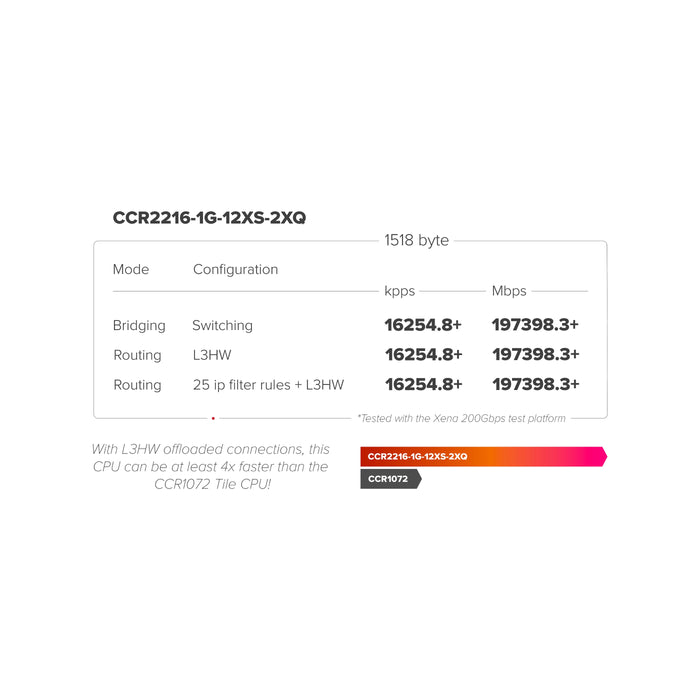

  • Million of packets per second with L3HW offloading
  • Powerful Amazon Annapurna labs ARMV8 16-core CPU
  • Marvell Prestera Aldrin2 DX8525
  • Gigabit Ethernet
  • 12X 25Gigabit SFP28
  • 2X 100Gigabit QSFP28
  • Dual-redundant hot-swap 150W PSU's
  • 16GB Ram 2X M.2 SATA
  • Lower power consumption than the previous flagship models
Product Specifications:
  • CPU: AL73400 2GHz
  • CPU architecture: ARM 64bit
  • CPU core count: 16
  • Size of RAM: 16GB
  • RAM type: DDR4
  • Storage: 128MB, NAND
  • Number of 1G Ethernet ports: 1
  • Number of 25G SFP28 ports: 12
  • Number of 100G QSFP28 ports: 2
  • Number of M.2 slots: 2
  • Operating system: RouterOS (License level 6)
  • Switch chip model: 98DX8525
  • Switch connection to CPU: 4x 25Gbps
  • Dimensions: 17.44"x 14.44"x 1.73" (443mm x 367mm x 44mm)
  • Operating temperature: -4°F to 140°F (-20°C to +60°C)
  • Number of AC inputs: 2
  • AC input range: 100V - 240V
  • Power adapter nominal voltage: 12V
  • Power adapter nominal current: 12.5A
  • Max power consumption (without attachments): 80W
  • Max power consumption: 121W
Product Includes:
(1) MikroTik CCR2216 Router
(2) Power Cords(1) Rackmount Ears
(1) Rackmount Rear Support Ears
(1) Cable Management Bracket
(1) Fastening Set
