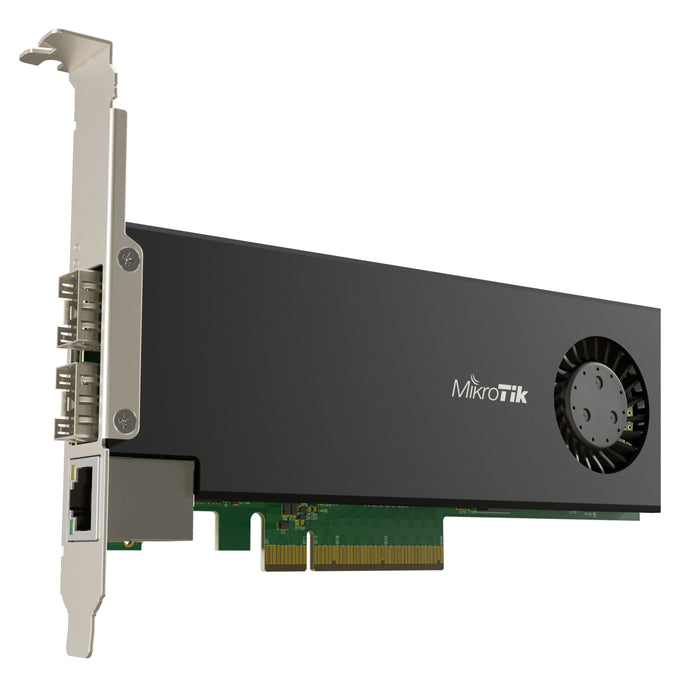

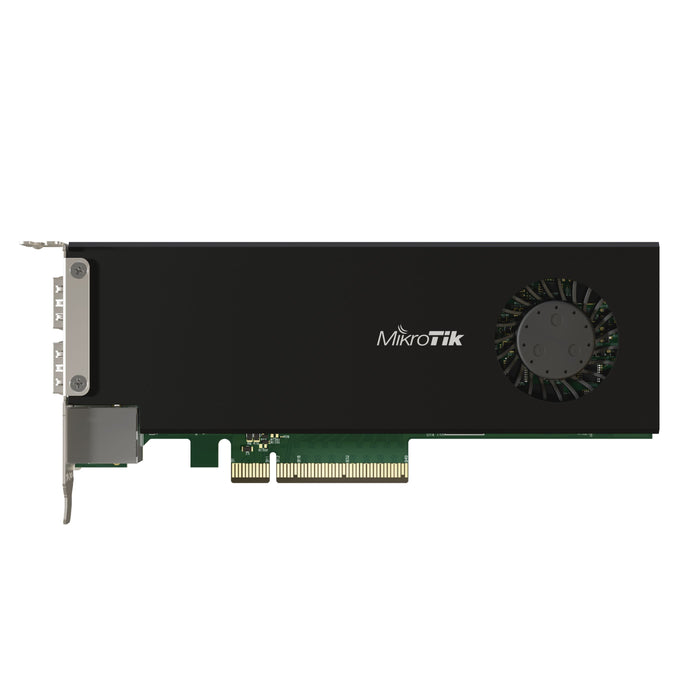

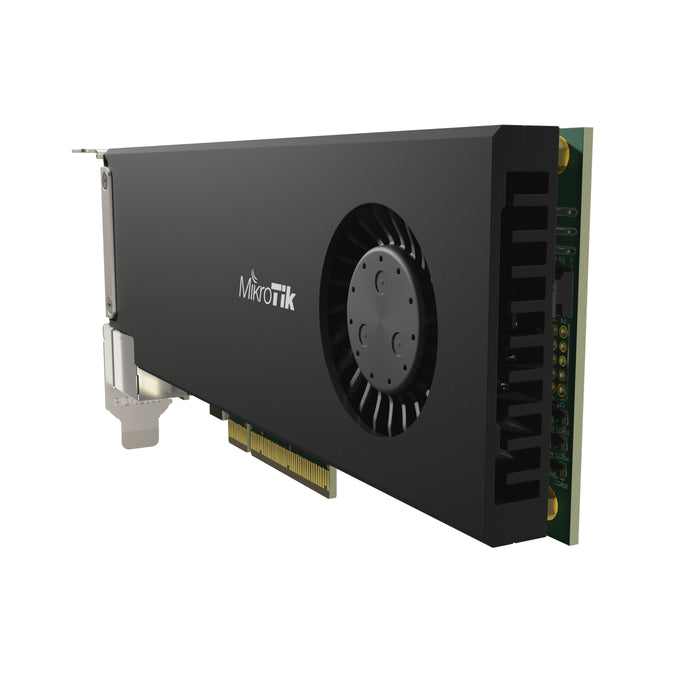

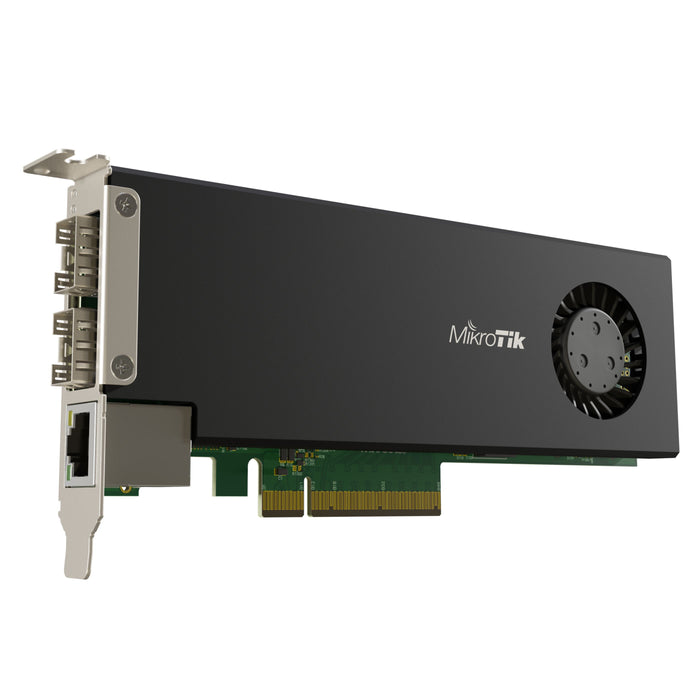

MikroTik CCR2004 PCIe Network Interface Card

CCR2004-1G-2XS-PCIe by MikroTik
Sold out
Original price $189.95 - Original price $189.95
Original price
$189.95
$189.95 - $189.95
Current price $189.95


The MikroTik CCR2004 With 4GB of RAM, 128MB of NAND storage, and a powerful quad-core ARMv8 64-bit CPU, this device can handle a lot: firewalls, user management and access control for home media and file servers, and even some traffic control in data centers – without the need for a stand-alone router. This form-factor does come with certain limitations that you should keep in mind. The CCR NIC card needs some time to boot up compared to ASIC-based setups. If the host system is up before the CCR card, it will not appear among the available devices. You should add a PCIe device initialization delay after power-up in the BIOS. Or you will need to re-initialize the PCIe devices from the HOST system.


Product Features:
  • All RouterPS Features
  • Quad-Core ARMV8 CPU
  • Fully Functional CCR2004 In PCIE 3.0 X8 Form-Factor
  • 2x SFP28 Ports for 25 Gigabit Networking
  • Gigabit Ethernet
  • 4GB DDR4 RAM

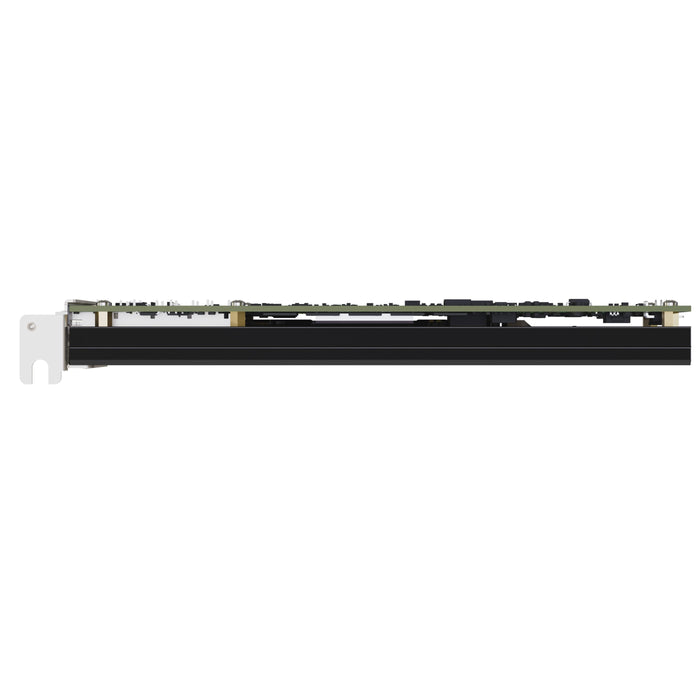

  • Low-Profile Format - Fits in 2U Server Chassis
  • Powered By The Server Motherboard
Product Specifications:
  • CPU: AL32400 2GHz
  • CPU architecture: ARM 64bit
  • CPU core count: 4
  • Size of RAM: 4GB
  • RAM type: DDR4
  • Storage: 128MB, NAND
  • Number of 1G Ethernet ports: 1
  • Number of 25G SFP28 ports: 2
  • Operating system: RouterOS (License level 6)
  • Dimensions: 6.7"x2.71"x.70" (170 x 69 x 18 mm)
  • Operating temperature: -4°F to 140°F (-20°C to +60°C)
  • Max power consumption: 25W
Product Includes:


(1) CCR2004-1G-2XS-PCIe

(1) High Bracket


Product Documentation:


MikroTik CCR2004 PCIe Network Interface Card Data Sheet
