MikroTik CCR2004 Fanless 16-Port Gigabit Cloud Core Router with 2 × 10G SFP+ [CCR2004-16G-2S+PC]

MikroTik CCR2004 Fanless 16-Port Gigabit Cloud Core Router with 2 × 10G SFP+ [CCR2004-16G-2S+PC]

by MikroTik
SKU CCR2004-16G-2S+PC
Save 12% Save 12%
$465.00
$465.00 - $465.00
$465.00
$410.95
$410.95 - $410.95
$410.95
+$42.33 Tariff Surcharge added at checkout. i Due to current Section 301 import tariffs and related surcharges, a fee applies to this product. This fee will be added at checkout.

Product Information

Overview

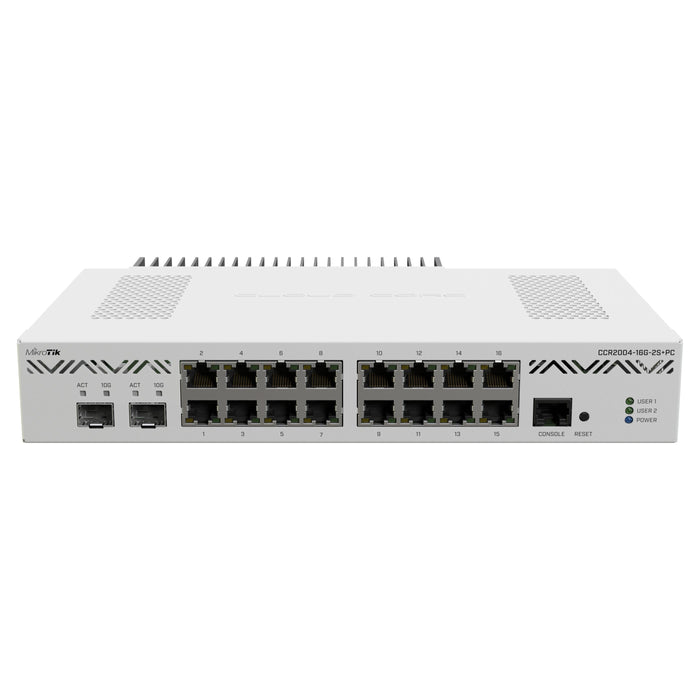

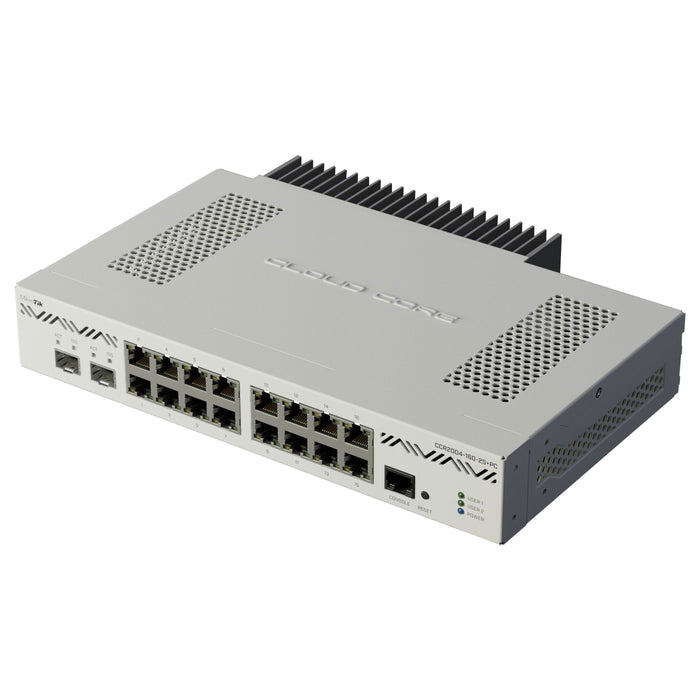

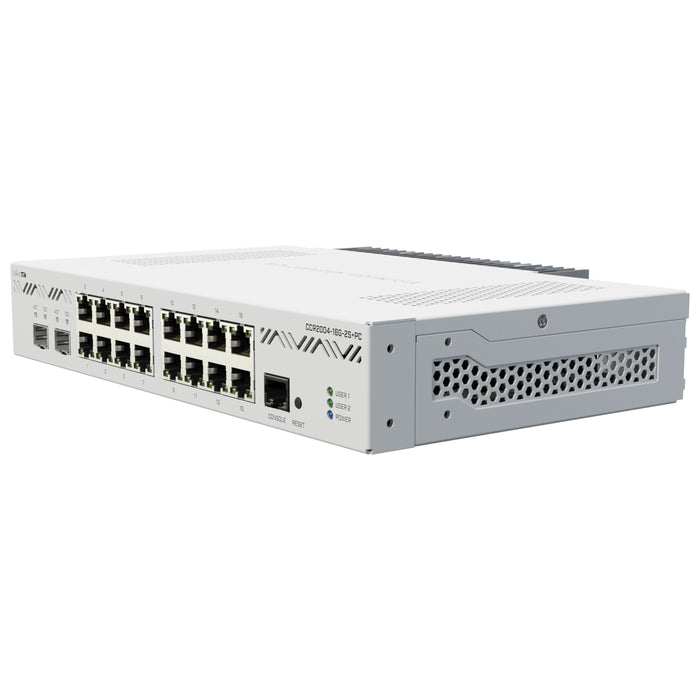

The MikroTik CCR2004-16G-2S+PC is a passively cooled Cloud Core Router designed for offices, studios, home labs, and business networks that need extensive wired connectivity without cooling-fan noise. It combines 16 Gigabit Ethernet ports with two 10G SFP+ uplinks in a compact metal enclosure.

A quad-core 1.2 GHz ARM 64-bit processor, 4 GB of DDR4 RAM, and RouterOS v7 Level 6 provide flexible routing, firewall, VPN, and traffic-management capabilities. Each group of eight Gigabit Ethernet ports connects through a dedicated switch chip with a 10 Gbps full-duplex CPU connection. Each SFP+ port also has its own dedicated 10 Gbps full-duplex CPU connection, with actual forwarding performance dependent on configuration and processing demands.

Two DC power inputs, an RJ45 console port, and included rackmount hardware support flexible installation and administration. The fanless design makes this model particularly useful where network equipment operates near workspaces or recording areas.

Ideal Applications

  • Small and medium-sized business internet gateways
  • Offices and studios requiring fanless network equipment
  • Home labs with Gigabit devices and 10G uplinks
  • VLAN routing and network segmentation
  • Firewall, VPN, and bandwidth-management deployments
  • Network upgrades requiring additional Ethernet ports and SFP+ connectivity

Highlights

Key Features

Fanless Passive Cooling

Operate without cooling-fan noise in offices, studios, and home labs. The passively cooled enclosure supports installations where equipment noise would be distracting.

16 Gigabit Ports and Dual 10G Uplinks

Connect local wired devices through 16 Gigabit Ethernet ports and use two 10G SFP+ ports for high-speed uplinks, downlinks, or connections to other network equipment.

Quad-Core Processing with RouterOS v7

A quad-core 1.2 GHz ARM processor and 4 GB of DDR4 RAM support routing, firewall rules, VPN connectivity, and traffic management through RouterOS v7 Level 6.

Dedicated CPU Links and Dual DC Inputs

Each eight-port Ethernet group and each SFP+ port has a dedicated 10 Gbps full-duplex connection to the CPU. A DC jack and a two-pin terminal provide flexible 36–57 V power-input options.

Product Details

Technical Specifications

System Specifications

  • Product Code: CCR2004-16G-2S+PC
  • CPU: Quad-core Annapurna Labs AL32400, 1.2 GHz
  • CPU Architecture: ARM 64-bit
  • Memory: 4 GB DDR4 RAM
  • Storage: 128 MB NAND
  • Operating System: RouterOS v7
  • RouterOS License: Level 6
  • Switch Chips: 2 × Marvell 88E6191X
  • Gigabit Ports per Switch Chip: 8

Ethernet and Fiber Interfaces

  • Gigabit Ethernet Ports: 16
  • 10G SFP+ Ports: 2
  • Switch-Chip CPU Connections: 1 × dedicated 10 Gbps full-duplex link per switch chip
  • SFP+ CPU Connections: 1 × dedicated 10 Gbps full-duplex link per SFP+ port
  • Console Port: RJ45

Power

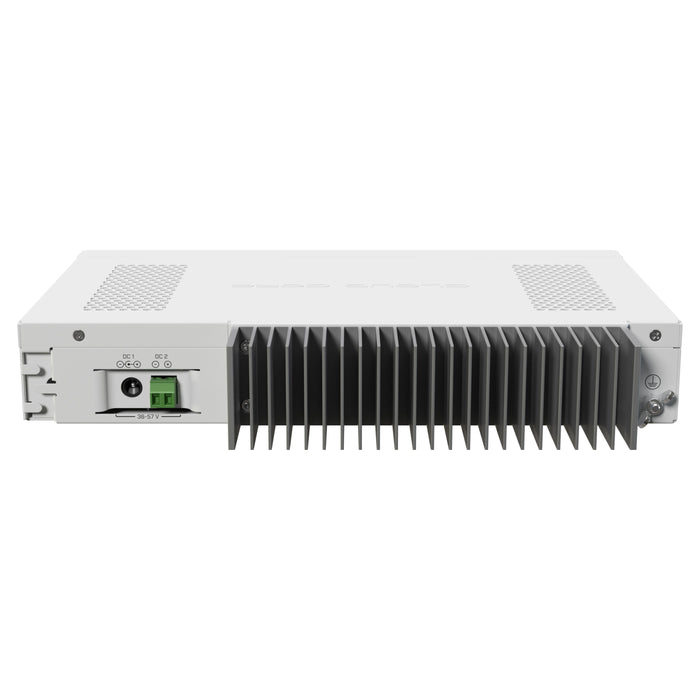

  • DC Inputs: 2: DC jack and two-pin terminal
  • DC Jack Input Voltage: 36–57 V
  • Two-Pin Terminal Input Voltage: 36–57 V
  • Maximum Power Consumption: 36 W
  • Maximum Power Consumption Without Attachments: 30 W
  • Included Power Adapter: 48 V DC

Physical and Environmental

  • Dimensions: 10.71 × 7.68 × 1.73 inches (272 × 195 × 44 mm)
  • Cooling: Passive, fanless
  • Mounting: Rackmount hardware included
  • Operating Temperature: -20°C to +60°C
  • Certifications: CE, FCC, IC

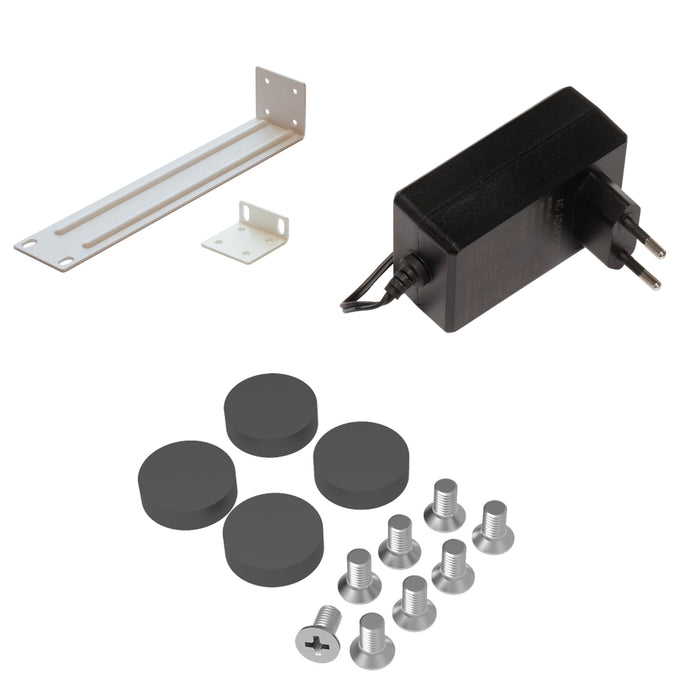

In the Box

What’s Included

  • MikroTik CCR2004-16G-2S+PC Cloud Core Router
  • 48 V DC power adapter
  • Rackmount bracket
  • Fastening set

Resources

Product Documentation

Datasheet
