MikroTik 802.11b/g/n 2GHz 1000mW MiniPCIe Wireless Card (with 2 MMCX connectors)

MikroTik 802.11b/g/n 2GHz 1000mW MiniPCIe Wireless Card (with 2 MMCX connectors)

R11e-2HPnD by MikroTik
MikroTik R11e-2HPnD Datasheet
$37.95 - $37.95
$37.95
$37.95 - $37.95
$37.95

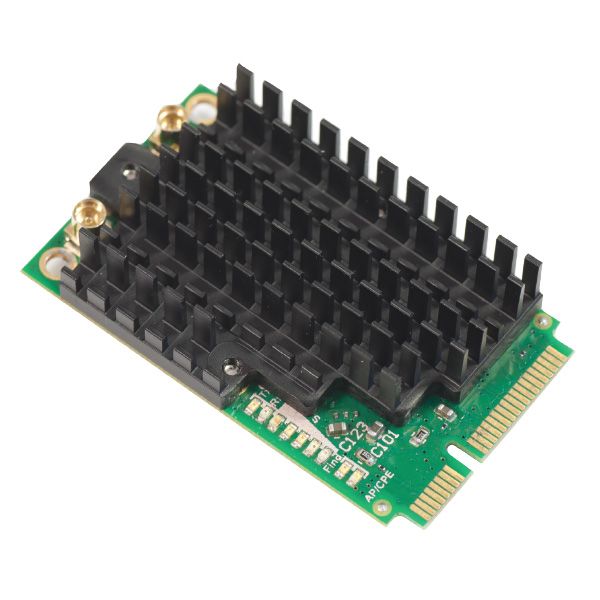

R11e-2HPnD is a high power wireless card in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e. This card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength.


Product Features:
  • 9 LED Indicators
  • ESD Protection


Product Specifications:
  • Chipset: AR9580
  • Frequency Range: 2192-2732 MHz
  • Standards: 802.11b/g/n
  • Max Output Power: 1000mW
  • Format: miniPCIe
  • Dimensions: 51x30x13mm
  • Connectors: 2 x MMCX
  • MAX Power Consumption: 7W
  • TX/RX at MCS0: 30dBm / -96dBm
  • TX/RX at MCS7: 24dBm / -76dBm
  • TX/RX at 6Mbit: 30dBm / -96dBm
  • TX/RX at 54Mbit: 25dBm / -80dBm
