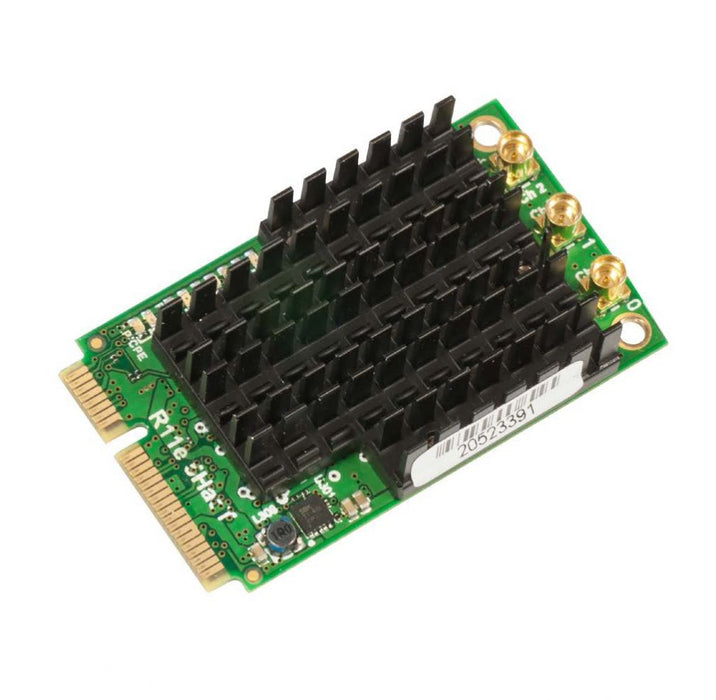

MikroTik 802.11ac 5GHz 630mW MiniPCI-Express Wireless Card (3 MMCX connectors)

R11e-5HacT by MikroTik
Sold out
Original price $56.95 - Original price $56.95
Original price
$56.95
$56.95 - $56.95
Current price $56.95

The R11e-5HacT features the new 802.11ac standard, with up to 1.3Gbps datarate, 256-QAM modulation, and 80MHz channels. The 802.11ac opens up new possibilities and speeds never possible before. R11e-5HacT is MikroTik's first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, and BaseBox.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity, and wireless signal strength.


Product Features:
  • Built-in LED Indicators for Wireless Mode
  • Connection status
  • TX and RX activity
Product Specifications:
  • Chipset: QCA9880
  • Frequency Range: 4920-6100MHz
  • Supported Channels: 20/40/80MHz
  • Standards: 802.11ac
  • Max Output Power: 650mW
  • Format: miniPCIe
  • Connectors: 3 x MMCX
  • Max Power Consumption: 5W
  • Operating Temperature: -22 to 149deg F (-30 to 65deg C)
  • TX/RX at MCS0 28dBm / -96dBm
  • TX/RX at MCS7 27dBm / -77dBm
  • TX/RX at MCS9 24dBm / -72dBm
  • TX/RX at 6Mbit 28dBm / -96dBm
  • TX/RX at 54Mbit 28dBm / -81dBm
Product Documentation:


R11e-5HacT Data Sheet
