MikroTik 802.11a/n 5GHz 500mW MiniPCI-Express Wireless Card (with 2 MMCX connectors)

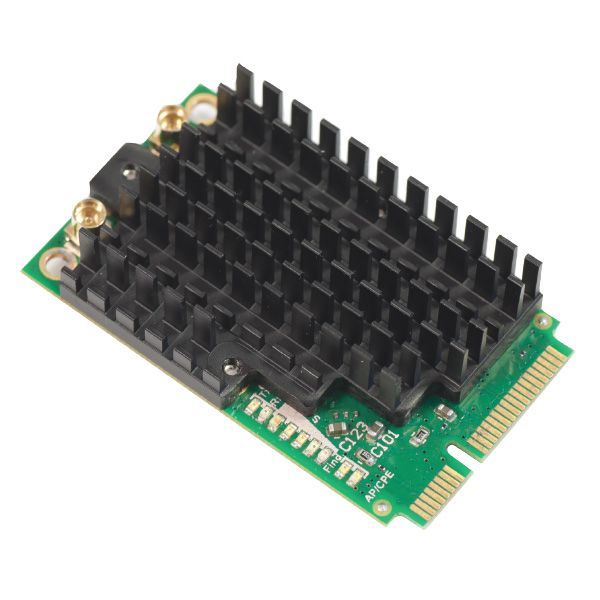

R11e-5HnD is a high power wireless card in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e. This card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength.

Product Features

• 9 LED Indicators

• ESD Protection

Product Specifications

• Chipset: AR9580

• Frequency Range: 4920-5920MHz

• Standards: 802.11a/n• Max Output Power: 500mW

• Format: miniPCIe

• Dimensions: 51x30x13mm

• Connectors: 2x MMCX

• MAX Power Consumption: 5W

• TX/RX at MCS0: 26dBm / -96dBm

• TX/RX at MCS7: 23dBm / -76dBm• TX/RX at 6Mbit: 27dBm / -96dBm• TX/RX at 54Mbit: 24dBm / -76dBm

Product Documentation:

R11e-5HnD Data SheetFCC Certification
