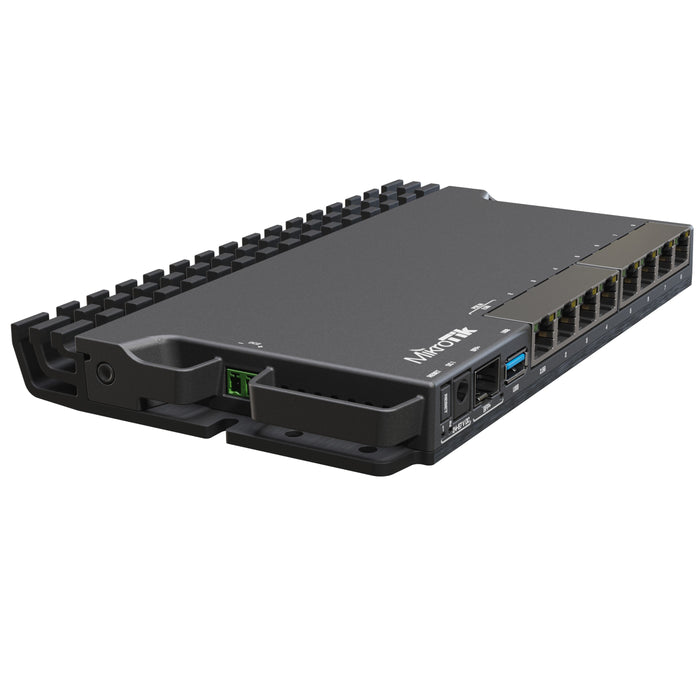

MikroTik 7x Gigabit Ethernet 1x 2.5Gigabit Ethernet 1x 10G SFP+ Router

RB5009UG+S+IN by MikroTik
Sold out
Original price $208.95 - Original price $208.95
Original price
$208.95
$208.95 - $208.95
Current price $208.95


All the ports of the MikroTik RB5009UG+S+IN gigabit router are connected to a powerful Marvell Amethyst family switch-chip with a 10Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.


To rack mount this device, please use the MikroTik Quad RB5009UG+S+IN K-79 1RU rackmount kit


Product Features
  • 7X Gigabit Ethernet Ports
  • 1GB NAND
  • 1X 2.5 Gigabit Ethernet Port
  • Powerful quad-core CPU
  • RouterOS V7
  • 10G SFP+
  • 1GB DDR4 RAM
Product Specifications
  • CPU: 88F7040 1.4GHz
  • CPU architecture: ARM 64bit
  • Number of 1G Ethernet ports: 7
  • Number of 2.5G Ethernet ports: 1
  • Number of 10G SFP+ ports: 1
  • USB port: 1 (3.0 type A)
  • Operating system: RouterOS (License level 5)
  • Switch chip model: 88E6393
  • Operating temperature: -40°C to 60°C (-40°F to 140°F)
  • PoE-in: 802.3af/at
  • Number of DC inputs: 3
  • Supported input voltage: 24-57V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
  • Power adapter nominal voltage: 24V
  • Power adapter nominal current: 1.5A
  • Max power consumption (without attachments): 14W
  • Max power consumption: 20W
  • Certification: CE, FCC, IC
Product Includes

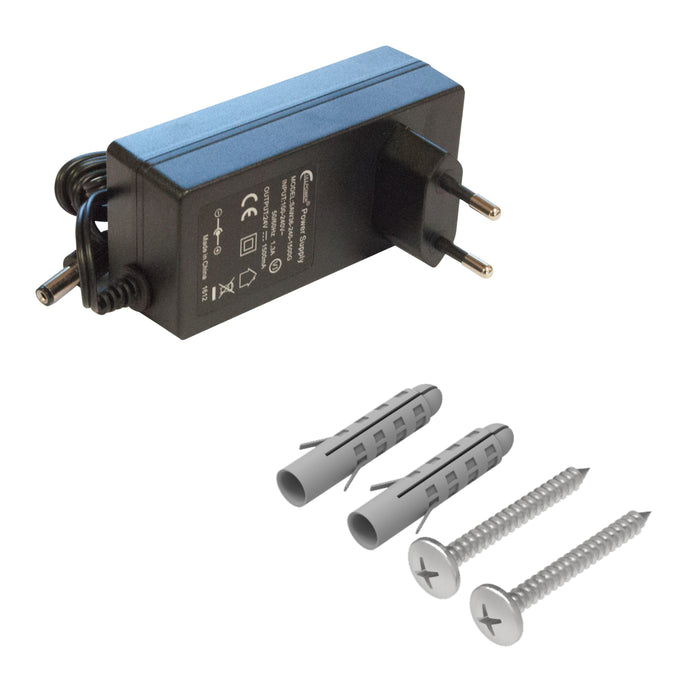

(1) MikroTik RB5009UG+S+IN gigabit Router
(1) 24V 1.5A power adapter
(1) Fastening set

Product Documentation


MikroTik 7x Gigabit Ethernet 1x 2.5Gigabit Ethernet 1x 10G SFP+ Router
