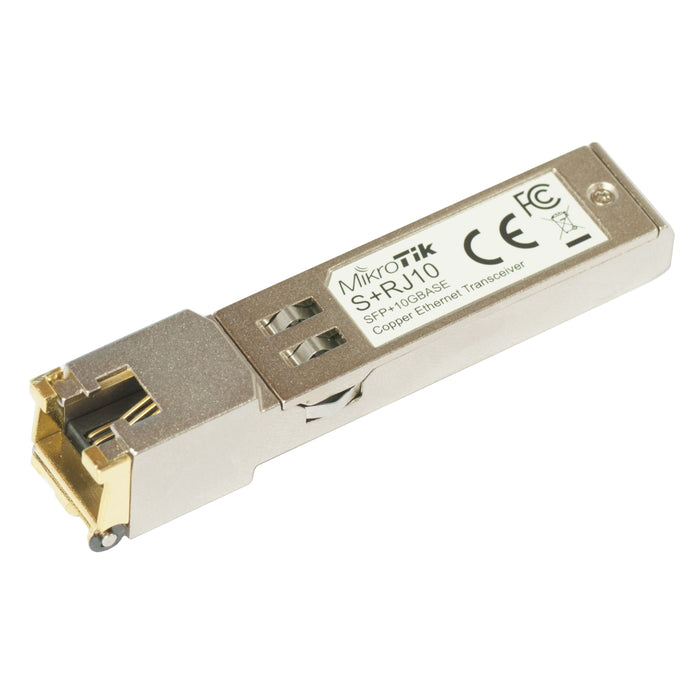

MikroTik 6-Speed RJ-45 Module [S+RJ10]
The MikroTik S+RJ10 is a new unique 6-speed RJ-45 module from MikroTik that opens up a whole new world of high speed connectivity possibilities. It offers up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.
S+RJ10 module is also supported on devices with passive cooling, but may require an extra cooling. The latest revision of S+RJ10 contains "/r2" by the end of serial number. It comes with following improvements:
- Jumbo frames up to 10218 Bytes are now supported for rates 2.5Gbps, 5Gbps and 10Gbps;
- Link speed reporting is fixed - actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly;
- DDM monitoring (Supply Voltage, Module temperature) is now supported.
- CCR1036 series
- CCR1009 series
- CRS326/CSS326 series
