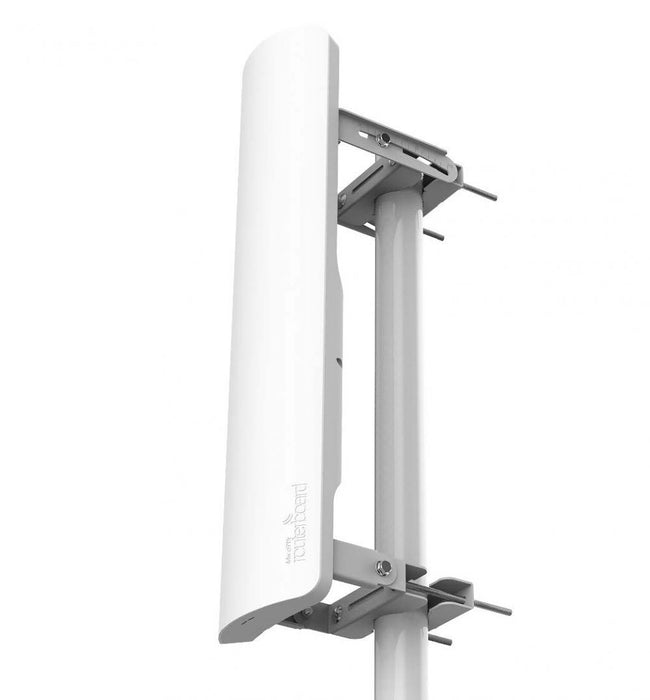

MikroTik 5GHz 19dBi mANT19s Dual-Pol Sector Antenna (2 x RP-SMA connectors)

MTAS-5G-19D120 by MikroTik
Original price $94.95 - Original price $94.95
Original price
$94.95
$94.95 - $94.95
Current price $94.95

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth. The mANT19s comes with metallic U bolt type mounts.


Product Specifications:

  • Antenna Gain: 19dBi
  • Frequency Range: 5.17-5.825GHz
  • Polarization: Vertical and horizontal
  • 3DB Beamwidth - azimuth: 120deg
  • 3DB Beamwidth - elevation: 5deg
  • VSWR: 1,43typ, 1.8max
  • Port to port isolation: >40dB min
  • Front-to-back ratio: >30dB
  • Cross Polarization: >30dB
  • Connector: 2 x RP-SMA
Product Documentation:


mANT19s Data Sheet
