MikroTik 5GHz 15dBi mANTBox 15s 120deg Dual Pol Sector Antenna

RB921GS-5HPacD-15S by MikroTik
Original price $132.95 - Original price $132.95
Original price
$132.95
$132.95 - $132.95
Current price $132.95

RB921GS-5HPacD-15S (International) supports 5170MHz - 5725MHz range (Specific frequency range can be limited by country regulations). To use U-NII-2 (5.250-5.350 GHz and 5.470-5.725 GHz), you need to update your product to the latest software version (at least 6.47.8).


mANTBox series - 15dBi Model

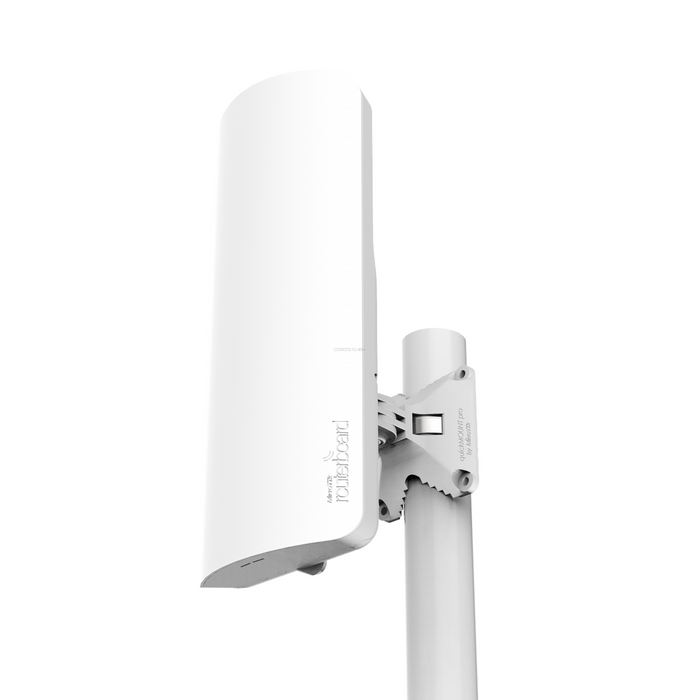

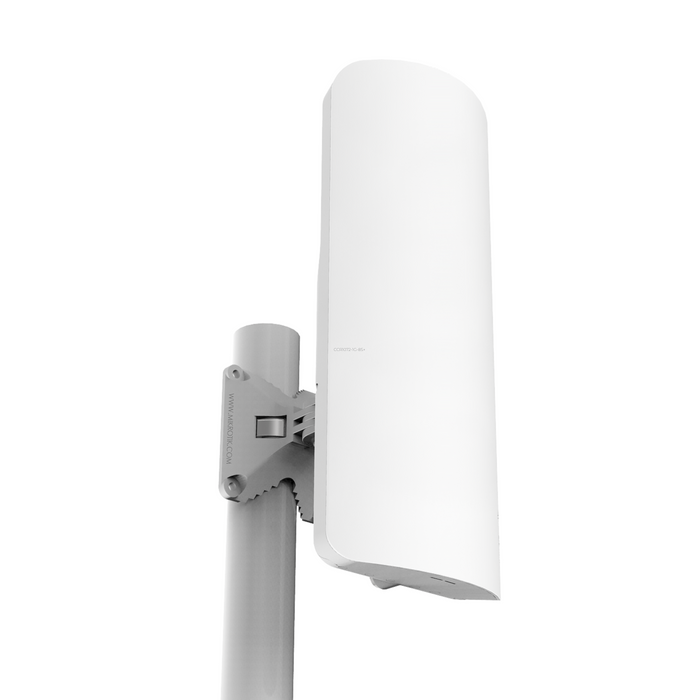

The new MikroTik mANTBox is based on MikroTik's mANT sector antennas, and now has a wireless router powered by a RB921 built in! It also comes with a quickMOUNT PRO and metal ring to quickly mount onto a pole.


Product Features:

  • CPU: 720MHz
  • Data Storage: 128MB NAND
  • Size of RAM:128MB DDR2 300MHz
  • SFP cage: 1
Product Specifications:
  • Antenna Gain: 15dBi
  • Frequency Range: 5.17GHz-5.825GHz
  • Polarization: Vertical and horizontal
  • 3DB Beam width - azimuth: 120°
  • 3DB Beam width - elevation: 5°
  • VSWR: 1,43typ, 1.8max
  • Port to port isolation: >40dB min
  • Front-to-back ratio: >30dB
  • Cross Polarization: >30dB

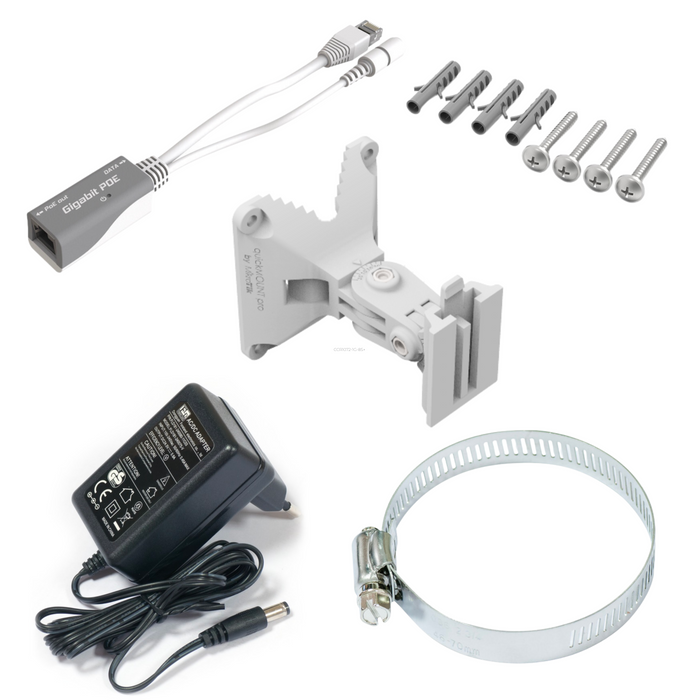

Product Includes:
  • 24V 0.8A power adapter
  • quickMOUNT PRO
  • K-41 screw kit

Product Documentation:


mANTBox series data sheet

mANTBox Distance Chart
