MikroTik 5GHz 15dBi mANT15s Dual-Pol Sector Antenna (2 x RP-SMA connectors)

MTAS-5G-15D120 by MikroTik
Original price $56.95 - Original price $56.95
Original price
$56.95
$56.95 - $56.95
Current price $56.95

mANT series - 15dBi Model.

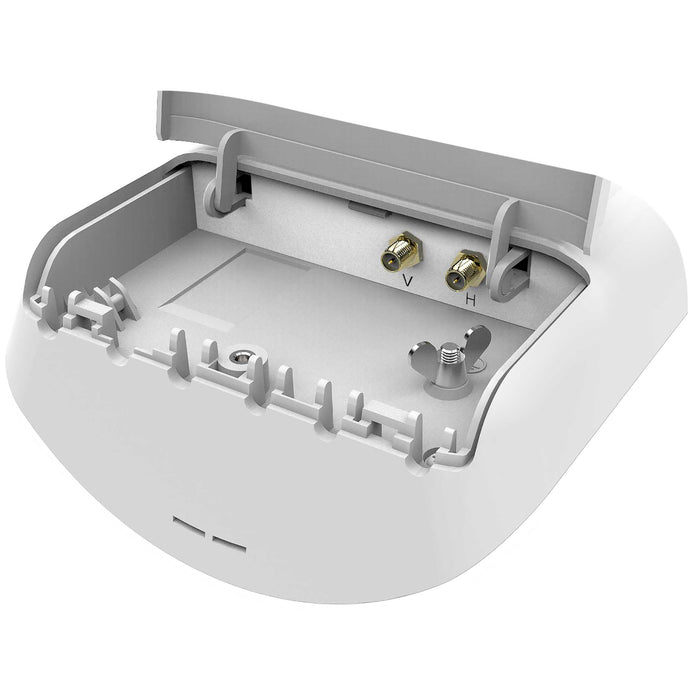

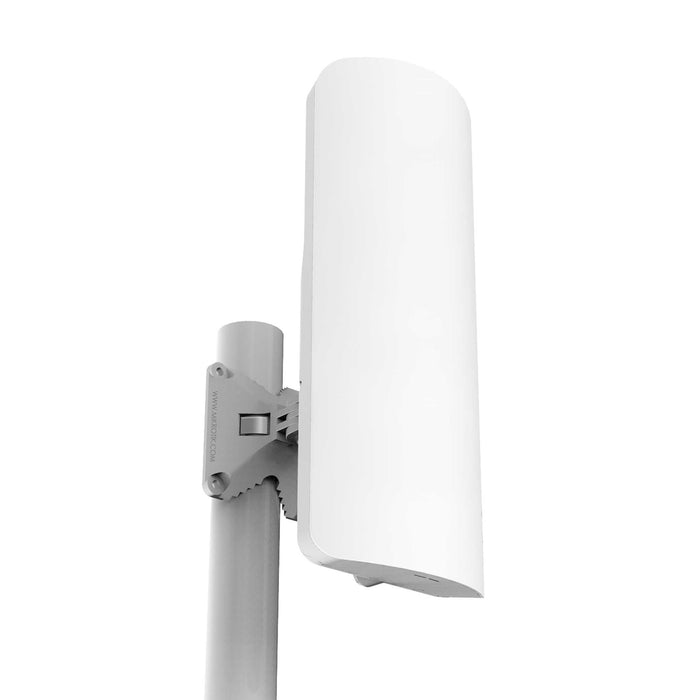

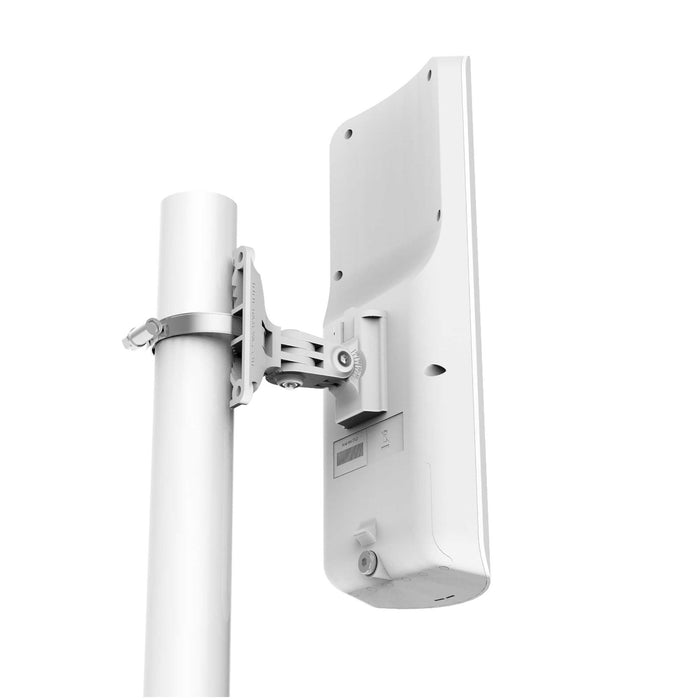

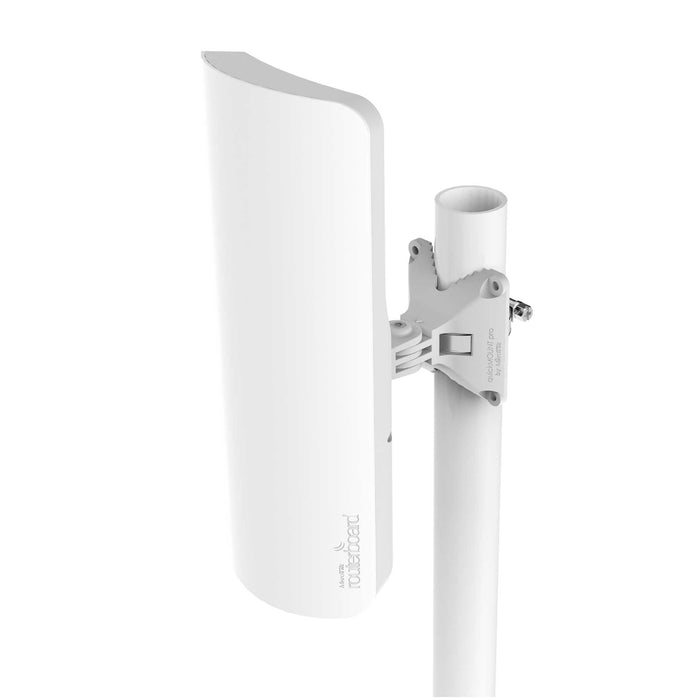

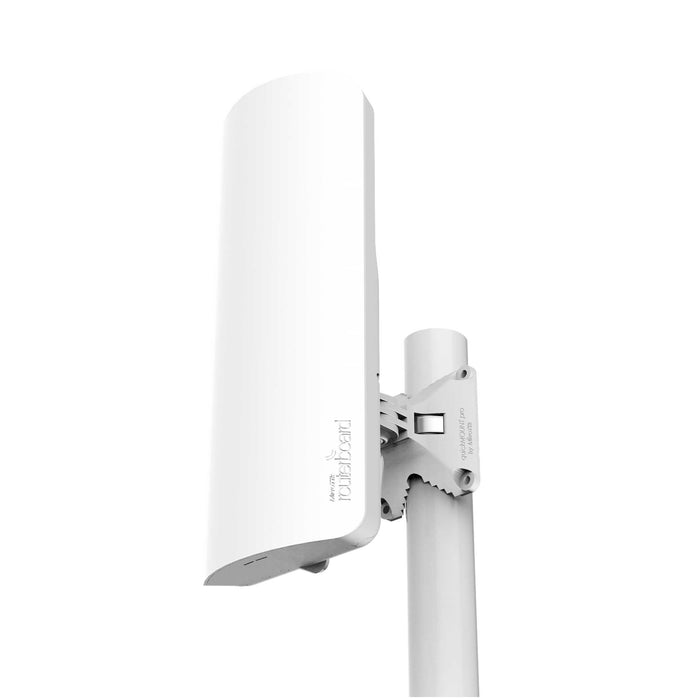

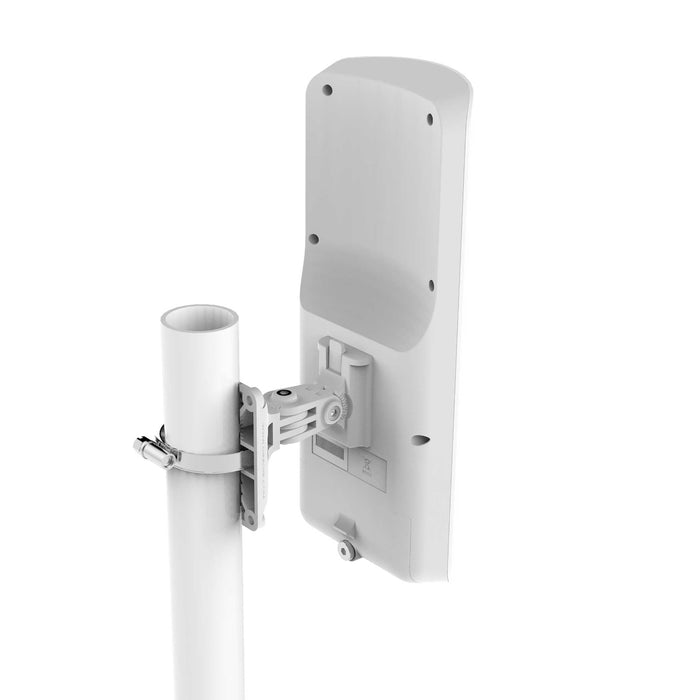

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization antenna with two RP-SMA connectors, it comes in two sizes, the 15dBi model and the 19dBi model. Both antennas have 120 degree beamwidth. The mANT15s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. The mANT19s comes with metallic U bolt type mounts.


Product Specifications:

  • Antenna Gain: 15dBi
  • Frequency Range: 5.17-5.825GHz
  • Polarization: Vertical and horizontal
  • 3DB Beamwidth - azimuth: 120deg
  • 3DB Beamwidth - elevation: 10deg
  • VSWR: 1,43typ, 1.8max
  • Port to port isolation: >40dB min
  • Front-to-back ratio: >30dB
  • Cross Polarization: >30dB
  • Connectors: 2 x RP-SMA
Product Documentation:


mANT15s Data Sheet
