MikroTik 48 to 24V Gigabit PoE Converter

RBGPOE-CON-HP by MikroTik
Sold out
Original price $24.95 - Original price $24.95
Original price
$24.95
$24.95 - $24.95
Current price $24.95

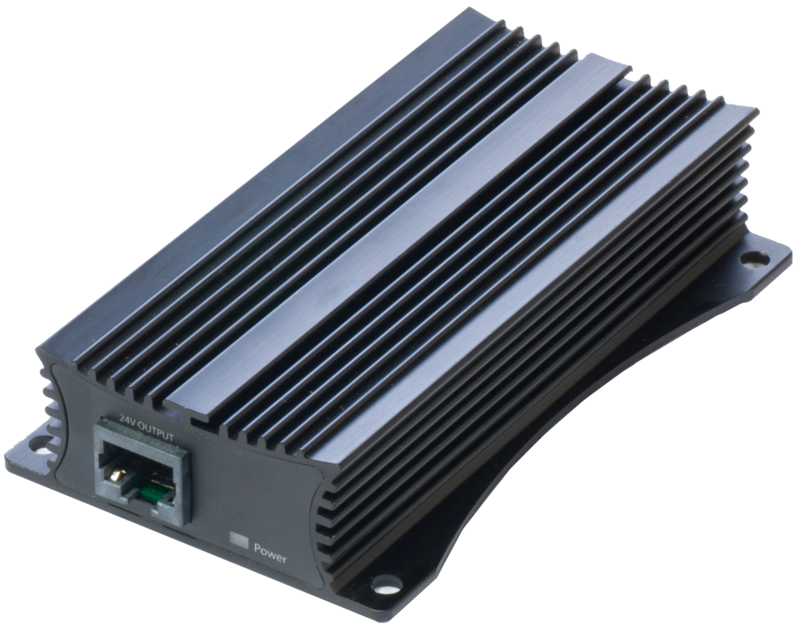

The RBGPOE-CON-HP device from MikroTik lets you use any 48V PoE source (including Passive PoE, Telecom PoE, 802.3af and 802.3at) to power RouterBOARD devices. Simply plug any 48V PoE powered Ethernet cable into one port, and any 8-30V capable RouterBOARD device into the other. This device is capable to provide high power output - up to 24W (up to 1A at 24V).


You can power it with virtually any 42-57V PoE solutions available on market today (Passive, Telecom, 802.3af and 802.3at PoE plus supported). The device has a rugged metallic design, with high quality components and integrated heatsink design. The case also has mounting holes so you can attach it to a wall. Ethernet shield pins are inside the Ethernet connectors, so that shielded ethernet can be used, to ground either at the converter itself, or at the devices at both ends. Supports 10/100/1000Mbps Ethernet


Product Specifications:
  • Name: RouterBOARD POE-CON-HP
  • Ethernet: Two Ethernet ports with grounding pins (Works also with Gigabit devices, but only at 10/100 speed)
  • Dimensions: 107x66x24mm
  • Power Input: 42-57V (Passive, Telecom, 802.3af and 802.3at PoE plus supported)
  • Power Output: 24V 1A
  • Output Pins: 4,5 “+”; 7,8 “-”
Product Documentation:


MikroTik RBGPOE-CON-HP Data Sheet
