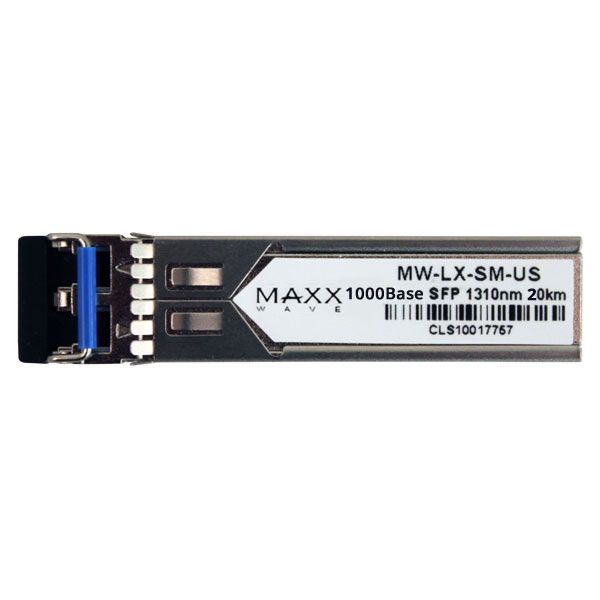

Maxxwave Single-Mode DDM SFP Fiber Module

MW-LX-SM-US by Maxxwave
Original price $33.95 - Original price $33.95
Original price
$33.95
$33.95 - $33.95
Current price $33.95

The new Maxxwave single-mode fiber module enable uncompromised high-speed routing with our new fiber solutions. The modules are small-form-factor pluggable for bi-directional serial optical data communications.


Compatible with Maxxwave, MikroTik, Cisco, Ubiquiti and most other SFP supported devices!


General Product Features
  • Operating data rate up to 1000Mbps
  • Singer 3.3V Power supply and TTL Logic interface
  • Duplex LC Connector Interface
  • Hot Pluggable
  • Compliant with MSA SFP Specification
  • DDM Capabilities
  • Cisco / MikroTik compatible
  • Maximum Receive Power: >+5dB
Single-Mode Module Features
  • 1310nm FP LD Laser Transmitter
  • Distance up to 10Km with 9/125 μm SMF
Mechanical/ Environmental
  • Form Factor: SFP type port
  • Operating Temp: 0ºC ~70ºC
  • Dimensions: 56.6mm (2.23”) (L) x 12.8mm (0.5”) (H) x 13.7mm (0.54”) (W)
  • Weight: 0.02KG (0.05lbs)
  • Certification: RoHS6

Technical Data Sheets and User Manuals:

MW-LX-SM-US Data Sheet
