Jirous JRMC-900-10/11 11GHz Parabolic Dish Antenna with JDMW-900 AR Precision Mount

JRMC-900-10/11Ra by Jirous
Sold out
Original price $854.95 - Original price $854.95
Original price
$854.95
$854.95 - $854.95
Current price $854.95

This product may be too bulky to ship via Ground Carriers. Contact sales@balticnetworks.com or 1-888-929-3610 with questions about shipping this item.

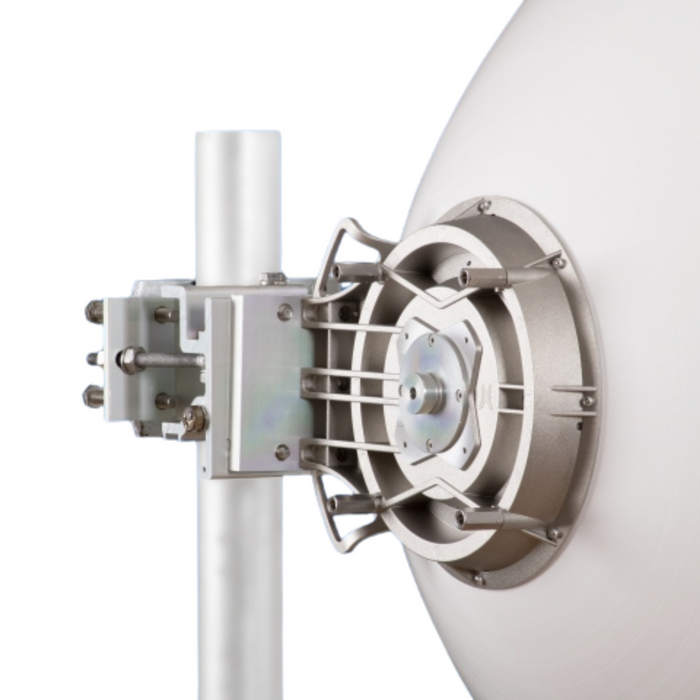

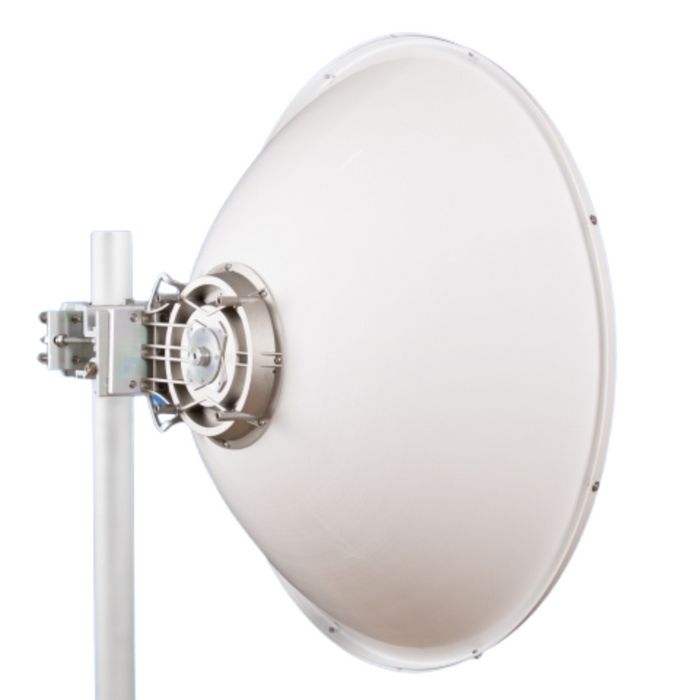

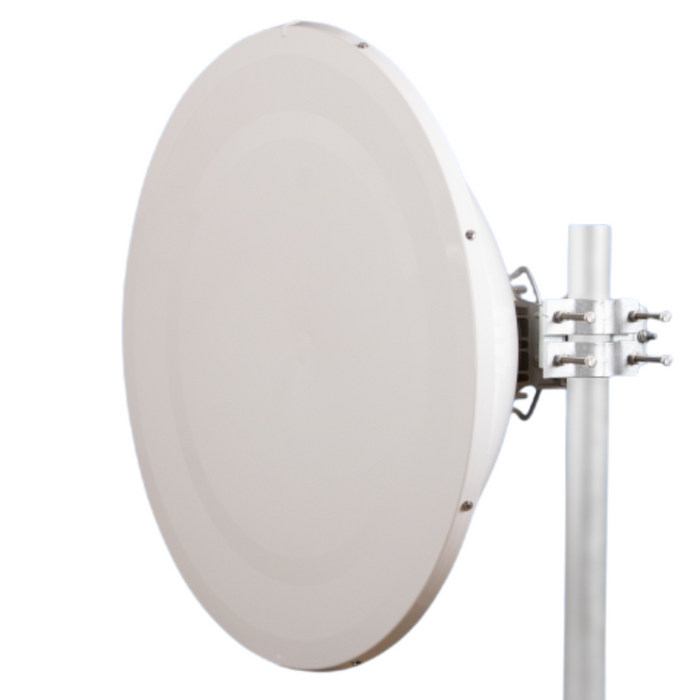

Jirous JRMC-900-10/11 11GHz parabolic dish antenna is designed for microwave links at the frequency band 10 and 11 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3. The antenna is supplied with a holder that allows easy mounting on a mast. The holder can be installed separately on the mast. Subsequently, you can simply hang up the antenna with microwave unit into it. The holder allows precise adjustment in both directions. Ready for right and left side mounting. In the areas with the expected occurrence of the strong winds mounting on the mast with minimal ø 70 mm is recommended.


Features
  • Deep parabola for better parameters
  • Easy to assembly: first the holder and then the antenna only by 2 screws
  • Fine setting elevation (of gradient) and azimuth ± 20°
  • Extreme wind stability
Electrical Parameters
  • Frequency range 10.0 – 12.0 GHz
  • Gain – Low frequency 36.5 ± 1 dBi
  • Gain – High frequency 37.0 ± 1 dBi
  • Front to back ratio ≥ 57dB
  • Beamwidth-3 dB 23°
  • Return loss (VSWR) ≥ 18 dB/10.3 – 11.7 GHz
  • Polarization Linear, vertical/horizontal
  • Electrical Compliance
        US FCC Part 101A | 10.550 – 10.680 GHz
        US FCC Part 101B | 10.7 – 11.7 GHz
        Class 2 ETSI EN 302-217-4-2 v1.5.1
        ACMA - RALI FX3 Grade B

Mechanical Parameters
  • Parabola Ø 900 mm, aluminum alloy
  • Radome UV steady plastic ABS
  • Input / output Circle waveguide Ø 19 mm
  • Installation for mast Ø 40 – 120 mm
  • Operating wind load 140 km/h (87 mph)
  • Survival wind load 210 km/h (130 mph)
  • Weight of antenna of holder: 10.2 kg (22.4 lbs.) 3.2 kg (7.1 lbs.)
  • Shipping dimensions
        Antenna: 990 x 990 x 430 mm / 12.1 kg (22.4 lbs.)
        Holder: 180 x 170 x 165 mm / 3.5 kg (7.7 lbs.)

Product Includes
(1) Jirous JRMC-900-10/11 Antenna

(1) JDMW-900 AR Precision Mount

(1) User Guide


Product Documentation
Jirous JRMC-900 Data Sheet
