IgniteNet MetroLinq Triband (60Ghz + 5Ghz + 2.4Ghz) Omni AP US [ML-60-10G-360-US]
IgniteNet’s MetroLinq 10G Tri-band Omni is the world’s first cost-effective 60GHz + 5GHz + 2.4GHz PTMP radio enabling high performance, interference-free connections with speeds of up to 10Gbps! With a total OTA capacity of 16.4Gbps, the MetroLinq 10G is the first AP capable of providing fiber-like connections to many clients simultaneously. It also has an added advantage of being license-free in most markets, allowing ultra fast deployment and without the hassle of other frequency bands. The MetroLinq 10G also includes both 2.4 & 5GHz radios which can be used to provide access in harder to reach NLOS applications ranging from hotspots to fixed broadband and many more!
Interference-Free & Unlicensed Band
The IgniteNet MetroLinq 10G offers unprecedented performance - combining both the benefits of unlicensed band operation with no interference!
Tri Band 60GHz + 5GHz + 2.4 GHz Operation
The IgniteNet MetroLinq 10G includes both additional 2.4 & 5GHz radios which can be to provide both supplemental connectivity to hard to reach places as well as carrier offload, hotspot, and mobile roaming capabilities.
Powerful, Flexible Configuration
The IgniteNet MetroLinq 10G can operate either as a stand-alone device or as a coordinated, cloud-managed device, easily meeting the requirements of any installation.
Robust Weather-Resistant Design
The MetroLinq 10G features a hybrid metal/plastic design built to withstand the harshest environments including precipitation, hot/cold weather and high/low humidities.

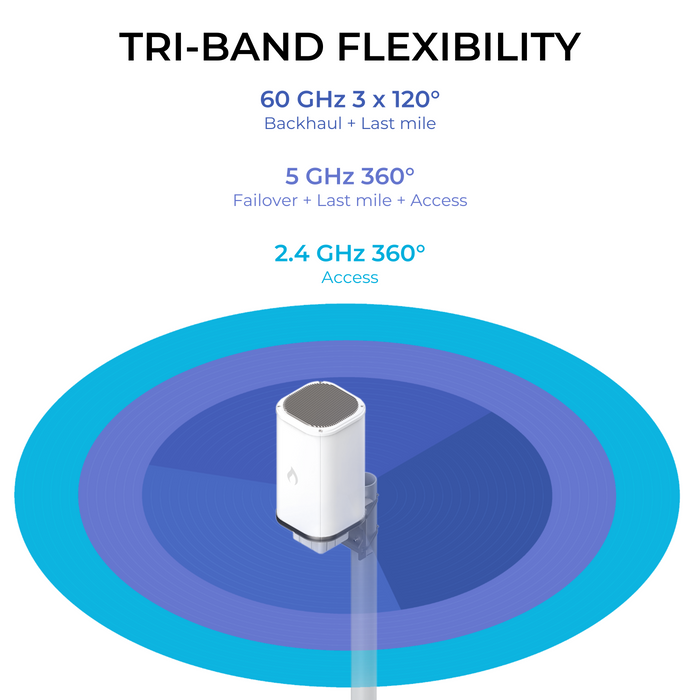

The IgniteNet MetroLinq 10G base station has three 120° 60 GHz beamforming sectors enabling interference-free connections to form network backhaul rings as well as to connect high-capacity 60 GHz fixed wireless broadband clients. There is also a built-in 5 GHz radio with 360° coverage which can be used as a failover for 60 GHz clients, for pure 5 GHz fixed wireless broadband clients, or for access for nearby Wi-Fi clients. Finally, there is a 2.4 GHz radio with 360° coverage which is dedicated for nearby Wi-Fi clients as well.
Multiple client device options
MetroLinq 10G Omni is a universal product allowing to connect different type of clients on 60, 5 and 2.4 GHz frequencies. Above picture illustrates average recommended distances to connect wireless clients.
The 10G Omni has a 10 Gigabit SFP+ port allowing full speed backhaul of the ultra-fast tai-band radios as well as a secondary 1 Gbps Ethernet port with PoE in support that can be used for out of band management or for the connectivity of additional devices like IP Cameras. There is also a DC terminal block which can be used to power up the unit.
- 7.5Gbps Aggregate throughput; dynamically allocated (60GHz)
- 2Gbps Aggregate throughput; dynamically allocated (5+2.4GHz)
- Management VLAN support and VLAN pass-through
- Supports Service Provider and Enterprise type networks
- Stand-alone or Cloud-controlled operating modes
- Base Station mode and up to 96 endpoints (45 endpoints at launch - 60GHz)
- Link failover/backup (60GHz + 5GHz) Per Client
- 128bit AES Encryption (standard; 2.4GHz, 5GHz, and 60GHz)
- SNMP Monitoring with Private MIB
- 1x 2.5Gbps nBase-T Ethernet Port (PoE IN)
- 1x SFP+ (10Gbps) Port
- 1x Screw Terminal Block (Power IN)
- 1x USB Port
- Dual flash image support
- Antennas: 17dBi (60GHz) & 15dBi (5GHz) & 12dBi (2.4GHz)
- LEDs: Power, Ethernet, Wireless, Health/Status
- Power: 48VDC Passive PoE IN
- Operating Environment:
✓ Operating Temperature: -40Cº to +70Cº
✓ Store Temperature: -40Cº to 70Cº
✓ Operating Humidity: 10 to 90% non-condensing (RH)
✓ Up to 150m (0.1mi) (Omni to Omni or ML LW, location dependent)
✓ Up to 400m (0.25mi) (19cm to Omni, location dependent)
✓ Up to 700m (0.43mi) (35cm to Omni, location dependent)
✓ Up to 2000m (1.24mi) (Omni to ML 5, location dependent)
