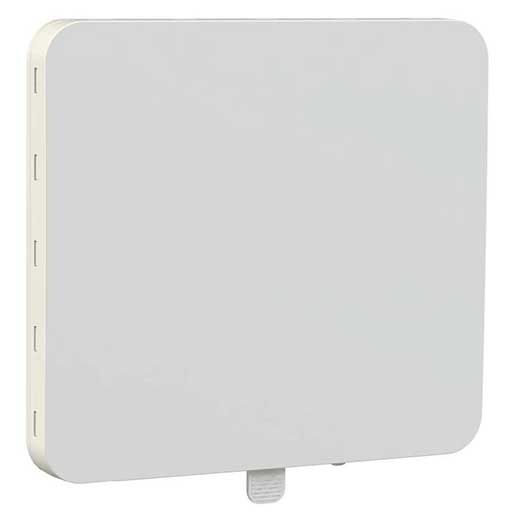

IgniteNet MetroLinq 60 LW 60GHz Cloud Enabled PTP/PTMP (US) [ML-60-LW-US]

ML-60-LW-US by IgniteNet
Original price $299.00 - Original price $299.00
Original price $299.00
$299.00 - $299.00
Current price $299.00

IgniteNet's MetroLinq 60-LW has a 60GHz range of up to 300m as well as built-in 5GHz failover, it can provide reliable high throughput in the harshest conditions. It also has an added advantage of being license-free in most markets, allowing ultra fast deployment, without the hassle of other frequency bands. The MetroLinq 60-LW also includes a third 2.4GHz radio that can be configured as a multi-tenant AP for applications ranging from hotspots to maintenance.

Product Features
  • 1+Gbps Aggregate throughput; dynamically allocated (60GHz)
  • Advanced 60GHz beam forming for easy alignment
  • 600Mbps Aggregate throughput; dynamically allocated (5GHz)
  • 300Mbps Aggregate throughput, dynamically allocated (2GHz)
  • Management VLAN support and VLAN pass-through
  • Supports Service Provider and Enterprise type networks
  • Stand-alone or Cloud-controller operating modes
  • Base Station mode and up to 32 endpoints (8 endpoints at launch)
  • Link failover/backup (60GHz + 5GHz)
  • 128bit AES Encryption (standard; 5GHz and 60GHz)
  • SNMP Monitoring with Private MIB
Product Applications
  • Fixed Wireless Access (broadband)
  • 3G/4G Backhaul
  • Metro WiFi
  • Campus Interconnection
  • Hybrid Fiber/Wireless Networks
Product Features
  • (1) Gigabit Ethernet Port (PoE IN)
  • (1) Gigabit Ethernet Port
  • (1) SFP Port
  • (1) Screw Terminal Block (Power IN)
  • (1) USB 3.0 Port
  • Dual flash image support
  • LEDs: Power, Ethernet, Wireless, Health/Status
  • Dimensions: 177 x 163 x 40mm (7 x 6.5 x 1.4")
  • Power: 24V/1A passive Gigabit PoE
  • Operating Temperature: -40 to 70°C
  • Storage Temperature: -40 to 70°C
  • Operating Humidity: 10 to 90% non-condensing
  • Regulatory / Standards Compliance: FCC/IC, CE
  • Range:
        Up to 250m (LW to LW, location dependent)
        Up to 250m (LW to Omni, location dependent)
        Up to 900m (LW to 19cm, location dependent)
        Up to 1.2km (LW to 35cm, location dependent)
  • RF Performance (TX):
        60GHz: 14dBm @ 1+Gbps
        5GHz: 27dBm @ 6Mbps, 23dBm @ 866Mbps
        2.4GHz: 27dBm @ 6Mbps, 23dBm @ 300Mbps
  • RF Performance (RX):
        60GHz: -74dBm @ MCS1; -60dBm @ MCS9
        5GHz: -94dBm @ MSC0; -72dBm @ MCS15
        2.4GHz: -94dBm @ MCS0; -72dBm @ MCS15
Product Includes
  • IgniteNet ML-60-LW-US
  • Pole / Wall Mount
  • 2 Metal O-Rings
  • 48V POE
  • Line Cord
