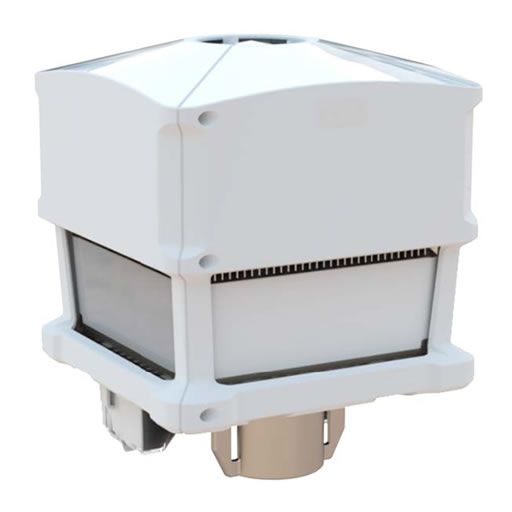

IgniteNet MetroLinq 60 GHz 802.11ay Terragraph Distribution Node with 1 radio 90 degrees

MLTG-360-1-FCC by IgniteNet
Original price $1,299.00 - Original price $1,299.00
Original price
$1,299.00
$1,299.00 - $1,299.00
Current price $1,299.00

IgniteNet is committed to support the deployment of all MetroLinq Terragraph solutions and provides complimentary technical support from IgniteNet engineers to fully deploy your MetroLinq Terragraph solution quickly and easily.

The IgniteNet MLTG-360-1 is a Terragraph certified distribution node (DN). MLTG-360-1 has 1 radio, supporting 90° coverage. The MLTG-360-1 is equipped with a 256-element beamforming phased array antenna, supporting up to 1.8 Gbps bi-directional throughput. In addition, MLTG-360-1 supports advanced mesh solution to establish a robust wireless network. Resilient mesh can be easily constructed between multiple MLTG-360-1 to construct the wireless network with high availability.

MLTG-360-1 provides fiber-like connectivity at a lower cost than fiber which is ideal for fixed wireless access, backhaul of Wi-Fi, or cellular networks.

Product Features
  • Support channel 1 to channel 4 (57-66GHz)
  • Up to 1.8 Gbps throughput
  • Beam forming technology with phased array antenna for easy alignment
  • Support TDMA-MAC for dynamic bandwidth allocation
  • Support Over-the-Air (OTA) Security with AES128 encryption
  • Mesh network with IPv6 routing
  • Support IEEE 1588v2 timing synchronization
  • Support QoS with 4 service classes
  • Support VLAN tagging and QinQ
  • Less than 800 microseconds latency per hop for a point-to-point link
  • Self-recovery & optimization
Product Specifications
Physical
  • 60 GHz Radio
    (1) antenna tile
    64 antenna elements
    90 degrees azimuth scan range: -45° to 45°
    50 degrees elevation scan range: -25° to 25°
  • Interfaces
    (1) Gigabit Ethernet Port (PoE IN)
    (1) 10 Gigabit SFP+ port
    (4) Gigabit Ethernet Port (PoE OUT)
    (1) 60 GHz Radio
  • Environmental Conditions
    Operating Temperature: -20°C (-4°F) to 55°C (131°F)
    IP66 Rating
  • Power
    Passive PoE (Injector Optional)
    42.5V~59V DC terminal block
  • Certifications: FCC/ CE
Performance
  • Range:
    Up to 200m for MCS12
    Up to 250m for MCS9
  • RF Performance (TX): EIRP 44dBm for each radio
  • RF Performance (RX):
    -88 dBm @ MCS9
    -78 dBm @ MCS12

Product Includes
(1) MLTG-360-1 Distribution Node
(1) Mounting Hardware

If not using DC Power, the ICC-POE-90W is required.
