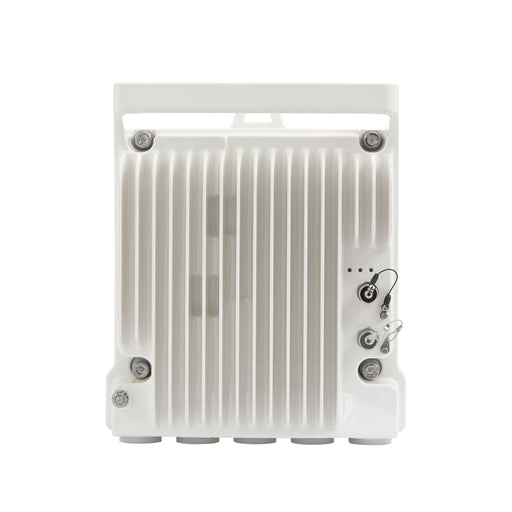

Cambium PTP 820C Radio 18WGHz TR1560 ChAll Lo 17700 - 18150MHz

C180082B024A by Cambium Networks
Sold out
Original price $4,620.00 - Original price $4,620.00
Original price
$4,620.00 - $4,620.00
Current price $4,620.00

Cambium PTP 820 series delivers a wide range of configurations to offer a tailored solution for any deployment scenario. Composed of high-density multi-technology nodes and integrated radio units, the PTP 820 series offers flexibility in choosing all-indoor, split-mount and all-outdoor configuration options. Exploiting unique Line of Sight (LOS) Multiple Input Multiple Output (MIMO) technology, modulation up to 2048QAM and wider channel bandwidths, ensures Industry leading throughput and spectral efficiency.

Product Features:

  • Multi-gigabits radio capacity with high spectral efficiency
  • TDM and/or packet supporting legacy services and evolution to all-packet
  • Integrated Ethernet Switch, MEF Carrier Ethernet 2.0 compliant, MPLS-TP-ready
  • Intelligent service-centric management utilizing Hierarchical
  • Lowest power consumption with adaptive green mode
  • Industry leading system Gain
Product Specifications:
  • Supported Frequency: 18 GHz
  • Role in the Network: Compact all outdoor w/multi-core
  • Transport Technology: All packet
  • TDM Interface: None
  • Modulation: QPSK to 2048 QAM w/ACM
  • Channel Size: 28,56,30,40,50,60,80 MHz
  • Capacity (Layer 2): 1.21 Gbps
  • Capacity with Multi-Layer Compression: 1.66 Gbps
  • Configuration: 1+0 to 4+0, 1+1/2+2 HSB, 1+0 E/W
  • LOS MIMO: Yes, 4x4 or 2x2
  • XPIC: Yes
  • Ethernet Interface: 1x10/100/1000Base-T and 1x1000base-X or 10/100/1000Base-T
  • Management Interface: 1 x 10/100 Base-T
  • External Alarm: None
  • Dimensions: 230 x 233 x 98
  • Environmental: -33C to +55C (-45C to +60C extended)
  • Power Input: -48VDC
  • PoE Injector Power Input: -48VDC or +24VDC
  • Maximum Power Consumption: Mutli-Core Operating: 6 GHz: 70W, 7-11GHz: 65W, 13-42 GHz:55W
Product Includes:

(1) PTP 820C Radio

(1) User Manual
