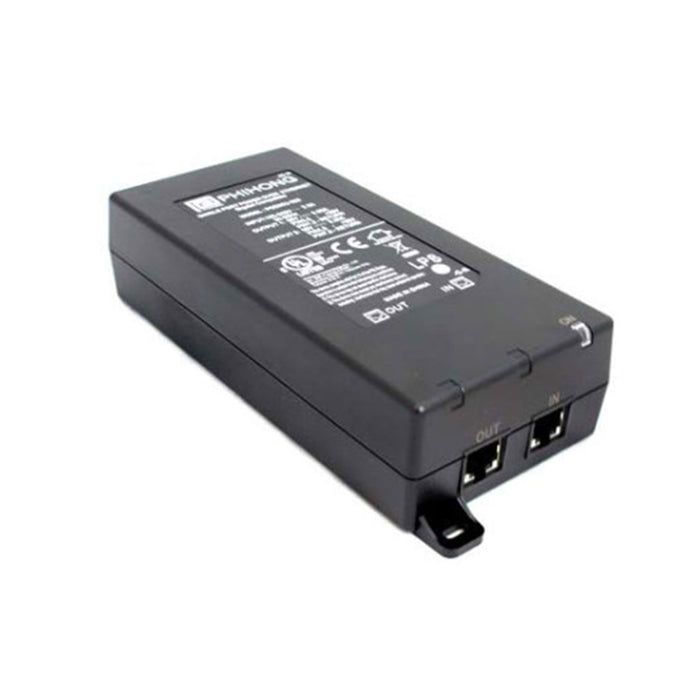

Cambium PTP 820C Indoor AC POE Injector, 90W [N000082L164A]
N000082L164A
by Cambium Networks
Sold out
Original price
$189.00
-
Original price
$189.00
Original price
$189.00
$189.00
$189.00
-
$189.00
Current price
$189.00
Cambium Networks radios utilize PoE (Power over Ethernet) for delivering power and data. AC power injector has an AC input and drives a 56V and 90W power plus data (PoE) output to the radio. This PoE power supply meets stringent Level VI efficiency requirements and carries regulatory compliance for deployment in most locations around the world.
Product Features:
- Two x RJ-45 data connectors (Data In; Data+Power Out)
- AC Power Input Connection: IEC320 C14
- AC Power Input: 90 to 264VAC | 47 to 63Hz
- DC Output voltage: +57-54VDC (+56V Nominal)
Product Specifications:
- Model Number: N000082L164A
- Data Connectors: Two x RJ-45 (Data In; Data + Power Out)
- AC Power Input Connection: IEC320 C14
- AC Power Input: 90 to 264 VAC | 47 to 63Hz
- DC Output voltage: +57-54VDC (+56V Nominal)
- Efficiency: Energy Level VI
- Output Power: 90W maximum
- Hold-up Time: 10mS Min @ 120VAC 60Hz and Max Load
- Operating Temperature: −10°C to 40°C
- Humidity: 5% to 90%
- Waterproofing: Indoor Use
- Regulatory:
- RoHS compliant ESD: EN61000-4-2
- Line Surge: EN61000-4-5
- Safety: UL 60950-1
