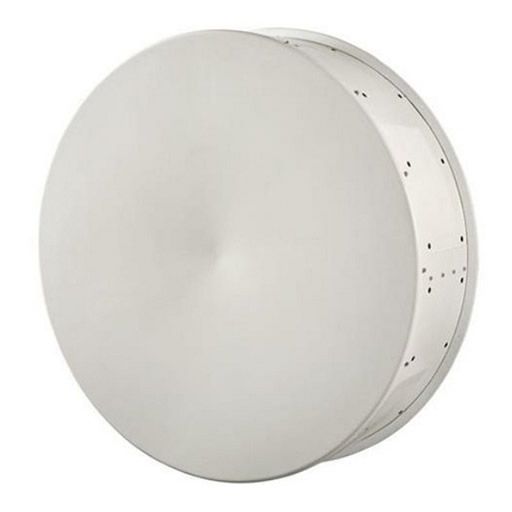

Cambium PTP 820 4FT ANT SP 11GHz RFU-C TYPE Standard UBR100 - Andrew Antenna

N110082D075A by Cambium Networks
Original price $1,869.00 - Original price $1,869.00
Original price
$1,869.00
$1,869.00 - $1,869.00
Current price $1,869.00

Cambium PTP 820 4' ANT,SP,11GHz,RFU-C TYPE &Std UBR100 - Andrew.


Product Specifications

  • Alpha Frequency: 11GHz
  • Front to back ratio: 46dB
  • Mounting hardware included: Yes
  • Maximum power input: 150W
  • Polarization: Horizontal or Vertical
  • Lightning Protection: DC Ground
  • Vertical Tilt: 0 degree
  • Antenna Diameter: 4'
  • Radome: Yes
  • Antenna size range: 3.5ft to 5ft
  • Frequency range: 11500-13999
  • dB gain range: 40.0 +
  • Gain: 40.5 dBi
  • Frequency (bandwidth): 105-11.7 GHz
  • VSWR: <1.08:1
  • Connector: RFU-C & UBR100
  • Wind Survival w/o ice: 125 MPH
  • Beam width: 1.6 deg
  • Depth: 56"
  • Width: 56"
  • Height: 33"
  • Weight: 33.5 LB
