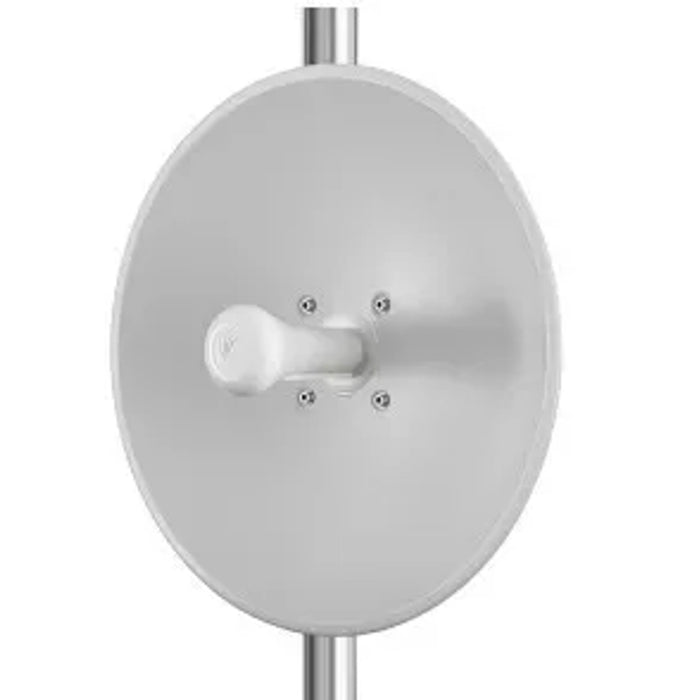

Cambium Networks PMP 5GHz 450b FCC High Gain Backhaul Radio

Cambium Networks PMP 5GHz 450b FCC High Gain Backhaul Radio

C050045B022A by Cambium Networks
Cambium Networks C050045B022A Datasheet Cambium Networks C050045B022A Datasheet
$376.92 - $376.92
$376.92
$376.92 - $376.92
$376.92

The Cambium Networks PMP 5 GHz 450b High Gain Radio platform increases performance with the addition of the PMP 450b Subscriber Module. This PMP 450b Subscriber Module features ultra-wide band radios which support the entire band, from 4.9 to 5.925 GHz. Gigabit Ethernet Interface provides the maximum transfer rates to the device. 3.5 mm audio jack allows direct connection of headphones without any adapters. New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM. Capable of up to 300 Mbps aggregate in a 40 MHz channel.


This is the radio only.


Product Features:

  • Ultra-wide band radios support from 4.9 to 5.925 GHz
  • Gigabit Ethernet Interface
  • 3.5 mm audio jack
  • New System on a Chip (Soc) enhancing Packet Processing Power more than 4x that of the 450 Subscriber Module
  • Capable of up to 300 Mbps aggregate in a 40 MHz channel
  • Backhaul radios can function as a Point-to-Point (PTP) link or as a a Subscriber Module (SM), except for Global models
Product Specifications:
  • Channel Spacing: Configurable on 2.5 MHz increments
  • Frequency Range: 4900-5925 MHz
  • Channel Width: 5 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz
  • MAC (Media Access Control) Layer: Cambium Networks proprietary
  • Physical Layer: 2x2 MIMO OFDM
  • Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant
  • Protocols Used: IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
  • Network Management: IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
  • MTU: 1700 bytes
  • VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
  • Encryption: FIPS-197 128-bit AES, 256-bit AES (optional)
  • PPS: 50,000
  • ARQ: Yes
  • Ultimate Sensitivity: -94 dBm
  • Maximum Deployment Range: Up to 40 miles (64 km)
  • Latency: 3-5ms, typical
  • GPS Synchronization: Yes, synchronized by Access Point
  • Quality of Service: Diffserve QoS
  • Transit Power Range: 22 dB dynamic range (to EIRP limit by region) (1 dB step)
  • Maximum Transit Power: +27 dBm (MIMO, combined V+H)(+22 dBm @ 256QAM)
  • Integrated Antenna Peak Gain: 24 dBi
  • 3 dB Beamwidth- Azimuth: 7°
  • 3 dB Beamwidth- Elevation: 7°
  • Polarization: Dual linear, H+V
  • Front-To-Back Isolation: >25 dB
  • Cross Polarization: 15 dB
  • Mean Time Between Failure
  • Environmental: IP 67
  • Temperature/ Humidity: -40°C to +60°C (-40°F to +140°F), 0-100% condensing
  • Wind Survival: 200 km/ hour (124 mi/hour)
  • Pole Diameter Range/ Mechanical Tilt (w/ included mount): 2.5-7.6 cm (1" to 3") ±20° mechanical tilt
  • Power Consumption: 9 W nominal, 12 W peak
  • Input Voltage: 20-32 V DC
  • FCC ID: Z8H89FT0042
  • ETSI: EN 301 893 v1.8.1,EN 301 893 v2.1.1 Clause 4.8 EN 302 502 v2.1.1
Product Includes:

(1) Backhaul Radio
