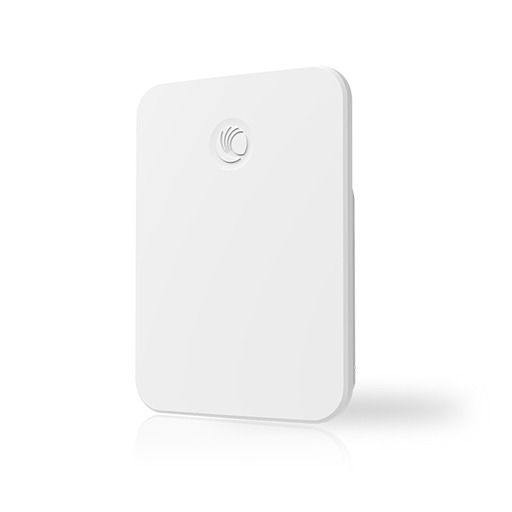

Cambium Networks e510 802.11ac 2x2 8dBi WLAN Outdoor Access Point

PL-E510X00A-US by Cambium Networks
Sold out
Original price $616.32 - Original price $616.32
Original price
$616.32
$616.32 - $616.32
Current price $616.32

Ideal for outdoor communities, public Wi-Fi or enterprise Wi-Fi, this omni-directional access point is tailored to low-, medium- and high- density applications. The Cambium Networks cnPilot e510 is designed with an integrated mounting bracket & internal antennas to make installation a snap and repeatable from one site to the next. The Cambium Networks e510 is rail shock and vibration certified, and includes extended surge and ESD protection. Additionally, an integrated LTE filter reduces impact from nearby LTE frequencies. Operating temperature spans -40°C to 65°C for a wide range of applications.


cnMaestro


All cnPilot access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides a single pane-of-glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.

  • Zero-touch onboarding
  • Inventory reports, mass configuration, and upgrade
  • Dashboard views with alarms and key performance metrics
  • Remote troubleshooting tools
  • Hierarchical device organization
  • Cloud-managed guest portal with social login, vouchers, rate, time, and throughput limits.

cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, license, or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on.


Product Features:

  • Wind Resistance up to Category 5
  • Great for use with industrial vehicles, forklift, passenger transport, metro, and rail systems
  • 4KV Surge Suppression
  • Radio Bands: FCC: Ch 1-11, 36-48, 149-165
  • Radios: 1x5 GHz radio (802.11/a/n/ac Wave 2), 2x2 1x2.4GHz (802.11 b/g/n), 2x2 SU-MIMO/ MU-MIMO: 2 streams
  • Wi-Fi: 802.11 a/b/g/n/ac
  • Mounting: Integrated pole, wall mount
  • LED: Single Tri-color LED (amber, blue, green)
  • Physical Lock: Kensington slot
Product Specifications:
  • IP Rated: IP67
  • SSID Security: WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
  • Maximum PHY Rate: 2.4GHz radio: 400Mbps, 5GHz radio: 867Mbps
  • Ethernet: One IEEE gigabit Ethernet auto sensing
  • Antenna (Internal Omni-directional): 2.4GHz: 8dBi (2.4GHz), 5GHz: 9dB
  • Max EIRP (EIRP limited by country regulations): 2.4GHz: 32dBm, 5GHz: 34.5dBm
  • WLAN: 256 clients, 16 SSIDs, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF
  • Power: 802.3af or 802.3at powered device
  • Power Typical load: 10 W
  • Power Max: 12.95 W
  • Ambient Operating Temperature: -40°C to 65°C
  • Storage Temperature: -40°C to 70°C
  • Humidity: 95% RH non-condensing
  • Wind Resistance: 224 KPH (139 MPH)
  • LTE Band filter: 38, 40
  • Certifications: Wi-Fi Alliance 802.11a/b/g/n/ac, Passport 2.0, FCC, ETSI, CE, EN 60601-1-2, IEC60950 UI2043
Product Includes:

(1) cnPilot e510 Access Point
