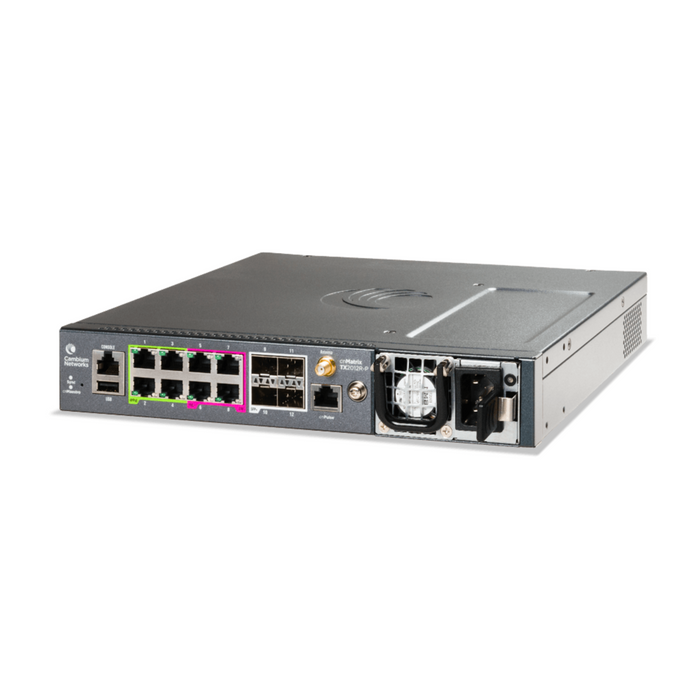

Cambium cnMatrix TX2012R-P Intelligent Ethernet PoE Switch [MXTX2012GxPA11]

Cambium cnMatrix TX2012R-P Intelligent Ethernet PoE Switch [MXTX2012GxPA11]

MXTX2012GxPA11 by Cambium Networks
Cambium Networks MXTX2012GxPA11 Datasheet
$1,968.21 - $1,968.21
$1,968.21
$1,968.21
$1,968.21 - $1,968.21
$1,968.21

Cambium cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

Features:

  • Throughput: 96 Gbps
  • Forwarding Rate in Mpps (64 Byte Packets): 120
  • 10/100/1000 Mbps RJ45 Ports: 8
  • 10 Gbps Fiber SFP+ Ports: 4
  • PoE+ Enabled Ports 802.3af/at/bt: 8
  • Low Voltage Passive PoE (24 V): 4
  • Cambium Sync (via RJ45 ports): 8

Hardware Specifications:

  • Power Supply: CRPS dependent
  • PoE Power Budget: CRPS dependent
  • 802.3af/at/bt PoE (54V): Ports 1–8
  • 24V Passive PoE - up to 15W: Ports 5–8
  • 54V Passive PoE - up to 90W: Ports 1–4
  • 54V Passive PoE - up to 30W: Ports 1–4
  • Rack Mountable: Not included
  • Wall Mountable: Yes (Optional Accessory)
  • Temperature Ranges: -10°C up to 65°C

Management:

  • cnMaestro cloud management
  • XMS cloud management
  • Industry standard Command Line Interface (CLI)
  • DHCP Client
  • Embedded web management (HTTP/HTTPS)
  • Embedded DHCP server
  • USB file management and storage
  • Out-of-Band Ethernet Management
  • SSH / SSH v2
  • SNMP v1/v2/v3

Layer 2 Feature Set:

  • 802.1s multiple spanning tree
  • VLAN, Port, Protocol, 802.1q
  • 802.1d
  • 802.1x authentication
  • Auto MDI/MDIX
  • BPDU Guard, Root Guard

Layer 3 Feature Set:

  • Inter-VLAN Routing
  • Static ARPs
  • Static Routes
  • DHCP Relay
  • Dynamic Routing – RIPv1/v2
  • Dynamic Routing – OSPFv2
  • Route Redistribution

Quality of Service:

  • ACL mapping and marking of ToS/DSCP (COS)
  • ACL mapping to priority queue
  • ACL mapping marking of 802.1p
  • Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP

Traffic Management:

  • ACL-based inbound rate limiting policies
  • Inbound rate limiting per port
  • Broadcast, multicast and unknown unicast rate limiting
  • Outbound rate limiting per port/queue
