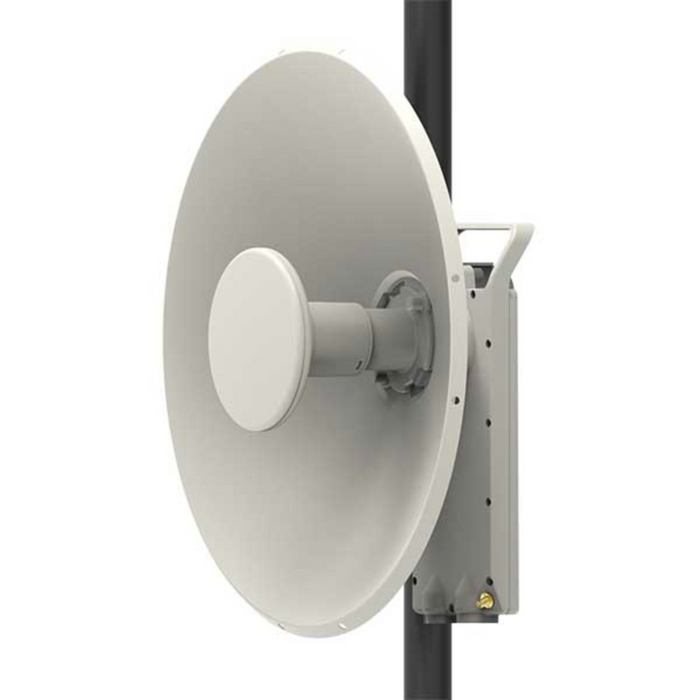

Cambium ePMP Force 425 5 GHz Subscriber Module with Antenna Dish (FCC) 2-Pack [C058940M102A]

C058940M102A by Cambium Networks
Sold out
Original price $1,256.18 - Original price $1,256.18
Original price $1,256.18
$1,256.18
$1,256.18 - $1,256.18
Current price $1,256.18

Note: 2-Pack Packaging (priced for two radios - each radio $628.09)

Cambium Networks introduces the ePMP Force 425 point-to-point solution, delivering up to 1 Gbps throughput at a breakthrough price point, based on the latest 802.11ax standards and Cambium’s proprietary ePTP protocol. The Cambium Force 425 is the ideal solution for service providers looking to deliver high-capacity access services to enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOPs and outdoor Wi-Fi access points that require a lot of capacity at moderate range without the overhead of licensed microwave. With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.

The Cambium Force 425 pushes this capacity farther with an integrated 25 dBi dish (and even farther with the optional 28 dBi range extender). The optional range extender is ordered separately and can be assembled and attached in the field to add additional link budget and fade margin for challenging links or to move to higher capacity, where needed, and higher modulations, where achievable. Leveraging the latest technology from the 802.11ax standard and Cambium Networks proprietary ePTP mode, the Cambium Force 425 delivers high spectral efficiency with features such as 1024 QAM, 80 MHz channels, a highly efficient frame structure and the proven ePTP air interface. The Force 425 delivers Gbps performance with less than 5ms latency. The Cambium Force 425 has enterprise-grade security with 128-bit AES over-the-air encryption (256-bit AES where export rules allow), secure management interfaces with roles-based authentication and standards-based device authentication including RADIUS support. The Cambium Force 425 is built for the real world with IP67 ruggedization, simplified mounting scheme and Cambium Networks’ 3-year hardware warranty. Plan and manage your Force 425 deployments with Cambium Networks LINKPlanner and cnMaestro.

Product Features:

  • Channel Width MHz: 20 | 40 | 80
  • Proprietary Physical Layer: 802.11ax, 2x2 MIMO/OFDM
  • Channel Spacing: Configurable in 5 MHz increments
  • Frequency Range: Wide Band Operation 4910 - 6135 MHz (Note: Country dependent based on local regulations. Support of 5870 to 6135 coming in a future software upgrade.)
  • MAC Layer: (Media Access Control) Cambium Proprietary
  • Ethernet Interface: 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules
  • Protocols Used: IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
  • Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
  • VLAN: 802.1Q with 802.1p priority
  • Connectors: 1 x RJ-45, 1 x SFP
  • Surge Suppression (Optional 56 V Surge Suppressor Available: C000000L033A): 1 Joule Integrated
  • Environmental: IP67
  • Temperature: -30°C to 65°C (-22°F to 149°F)
  • Wind Survival: 180 km/h (112 mph)
  • Dimensions (H x W x D): 470 mm diameter x 285 mm depth (18.5 in diameter x 11.2 in depth)
  • Pole Diameter Range Center: 3.1 to 7.6 cm (1.25 to 3.0 in)
  • Power Consumption: 28 W
Product Specifications:
  • ARQ: Yes
  • Maximum Capacity: 1 Gbps
  • Latency: < 5ms
  • Nominal Receive Sensitivity (w/FEC) @20 MHz Channel: MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain)
  • Nominal Receive Sensitivity (w/FEC) @40 MHz Channel: MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain)
  • Nominal Receive Sensitivity (w/FEC) @80 MHz Channel: MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain)
  • Modulation Levels (Adaptive): MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
  • 1,256.18Encryption: 128-bit Over-the-Air Encryption (256-bit AES where export rules allow - ROADMAP Feature)
  • Frequency Range: 4910 – 6135 MHz
  • Antenna Type: Dish
  • Peak Gain: 25 dBi
  • 3 dB Beamwidth Azimuth: 15°
  • 3 dB Beamwidth Elevation: 30°
Product Includes:
  • (2) Cambium Force 425 Subscriber Modules
  • (2) Mounting Hardware
  • (2) Antenna Dishes
  • (2) US Power Supply 1000/100 Base-TX LAN Injectors
  • (2) US Line Cords
