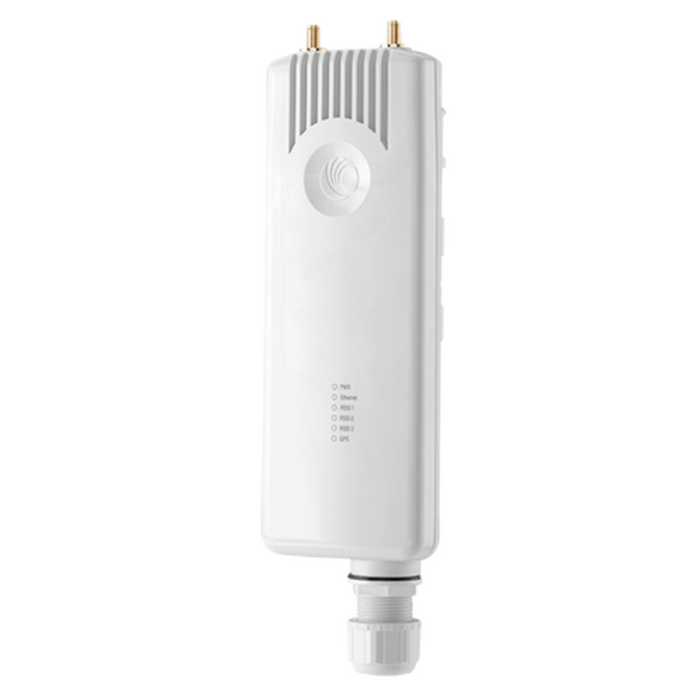

Cambium ePMP Force 300 5GHz 802.11AC Wave 2 CSM Radio (FCC)

C058910C122A by Cambium Networks
Original price $277.48 - Original price $277.48
Original price
$277.48
$277.48 - $277.48
Current price $277.48

Cambium ePMP Force 300CSM is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data. The Force 300 CSM offers a versatile solution enabling a wide variety of deployment models including high-gain parabolic dishes. The ePMP Force 300 CSM supports channel size configurations from 20 MHz up to 80 MHz and modulations up to 256 QAM.


Product Specifications:

  • Channel Spacing: Configurable in 5 MHz
  • Frequency Range: Wide Band Operating 4.910 - 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations
  • Channel Width: 20 / 40 / 80 MHz
  • MAC Layer: Cambium Proprietary
  • Physical Layer: 2x2 MIMO/OFDM
  • Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
  • Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
  • Network Management: IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro
  • VLAN: 802.1Q with 802.1p priority
  • ARQ: Yes
  • Nominal Receive Sensitivity (w/FEC) @20 MHz Channel: MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
  • Nominal Receive Sensitivity (w/FEC) @40 MHz Channel: MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain)
  • Nominal Receive Sensitivity (w/FEC) @80 MHz Channel: MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
  • Modulation Levels (adaptive): MCS0(BPSK)to MCS9 (256QAM5/6)
  • Transmit Power Range: 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
  • Surge Suppression: 1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)
  • Environmental
  • Temperature:
  • Weight:
  • Wind Survival:
  • Dimensions (Dia x Depth)
  • Pole Diameter Range
  • Power Consumption:
  • Input Voltage: 30 Watts nominal (14 to 30V range)
  • Encryption: 128-bit AES (CCMP mode)
  • Frequency Range: 4.910 5.970 MHz
  • Antenna Type: Connectorized
  • Connectors: 2 x 50 ohm, RP-SMA (Reverse Polarity SMA) Compatible with RF-Elements TwistPort Adaptor for ePMP
Product Includes:

(1) ePMP Force 300 Radio

(1) User Manual
