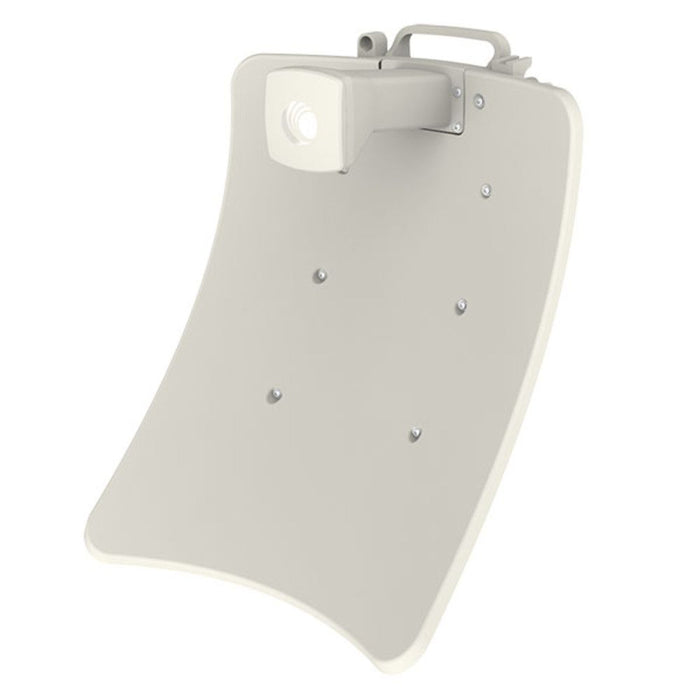

Cambium 60 GHz cnWave V3000 Client Node Radio [C600500C024A]

Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas. The Cambium V3000 is featured with a 44.5 dBi high-gain antenna with beamforming. The client nodes can support up to 7.6 Gbps with channel bonding for both PMP and PTP configurations.

Antenna Assembly (C600500D001A) and Power Supply Unit (N000065L001C) Sold Separately

Product Features:

• Supports 57GHz to 66GHz
• Up to 7.6Gbps (3.8Gbps UL and 3.8Gbps DL) with channel bonding
• Easy installation with auto beamforming
• Low latency < 1ms
• 802.11ay technology with Terragraph certification

• Frequency Range: 57GHz to 66GHz in a single SKU
• Channel Width: 2.16GHz
• Carrier Bonding: Up to 2 adjacent channels
• Mode of Operation: PMP or Mesh, PTP
• Channel Access: TDMA/ TDD
• Ethernet Interface: (1) 100/1000 BaseT with PoE In, (1) 100/1000 BaseT with 802.3at PoE Out, (1) SFP+
• Protocol Supported: IPv4, IPv6
• Network Management: cnMaestro, HTTP, HTTPS, SNMP v2c & v3
• MTU: 4,000 bytes
• Encryption: 128-bit AES
• Firmware Security: Signed Firmware Images
• Modulation & Coding Schemes: MCS-0 (BPSK) to MCS-12 (16-QAM)
• Latency: < 1ms
• Max. EIRP: 60.5dBm
• Gain: 44.5dBi
• Type: Integrated
• Beamforming Scan Range: ±2° azimuth, ±1° elevation
• Beam Width: 0.8°
• Type: Passive PoE (42-57V) without AUX PoE Out in use
• Power Consumption: 55W with AUX PoE Out in use, 30W without AUX PoE Out in use
• Environmental: IP66/67
• Temperature: -40°C to 60°C (-40° to 140°)
• Mean Time Between Failure: > 40 years
• Wind Survival: 200km/h (124 mph)

• (1) V3000 Radio Assembly
• (1) M25 Cable gland
• (8) Screws
• (1) Package Leaflet
