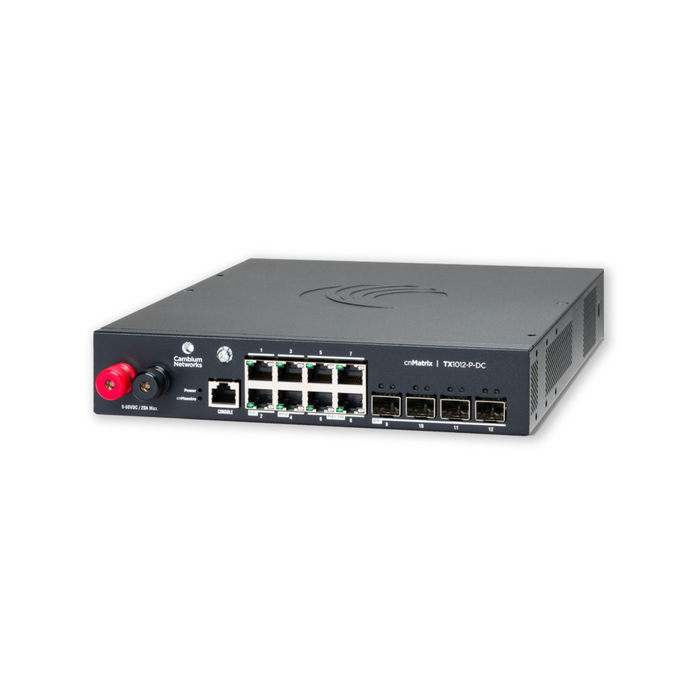

Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, 8 x 1Gbps, and 4 SFP+ - No Power Cord, US Only
MXTX1012GxPA21
by Cambium Networks
Original price
$1,151.96
-
Original price
$1,151.96
Original price
$1,151.96
$1,151.96
$1,151.96
-
$1,151.96
Current price
$1,151.96
Cambium cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
General Features:
- Throughput: 96 Gbps
- Forwarding Rate in Mpps (64 Byte Packets): 120
- 10/100/1000 Mbps RJ45 Ports: 8
- 10 Gbps Fiber Ports (SFP+): 4
- PoE+ Enabled Ports 802.3af/at/bt: 8
- Low Voltage Passive PoE (24V): 4
- High Power 4 PPoE (up to 90W): 2
- Serial Console: Yes
- Policy Based Automation: Yes
Hardware Specifications:
- Power Supply: 200W
- PoE Power Budget: 170W @ 30-65Vin, 120W @ 9–29Vin
- 802.3af/at/bt PoE (54V): Ports 1–8
- 24V Passive PoE - up to 15W: Ports 5–8
- 54V Passive PoE - up to 90W: Ports 3–4
- 54V Passive PoE - up to 30W: Ports 1–2, 5–8
- Rack Mountable: Yes (Optional Accessory)
- DIN Rail Mountable: Yes (Optional Accessory)
- Wall Mountable: Yes (Optional Accessory)
- Temperature Ranges: -30ºC to 60ºC / Sea level
Management:
- cnMaestro cloud management
- XMS cloud management
- Industry standard Command Line Interface (CLI)
- Embedded web management (HTTP/HTTPS)
- SSH / SSH v2
- SNMP v1/v2/v3
- Local/remote system logging
- Policy Based Automation
Layer 2 Feature Set:
- 802.1s multiple spanning tree
- VLAN, Port, Protocol, 802.1q
- 802.1d
- 802.1x authentication
- Auto MDI/MDIX
- BPDU Guard, Root Guard
Layer 3 Feature Set:
- Inter-VLAN Routing
- Static ARPs
- Static Routes
- DHCP Relay
- Dynamic Routing – RIPv1/v2
- Dynamic Routing – OSPFv2
- Route Redistribution
Quality of Service:
- ACL mapping and marking of ToS/DSCP (COS)
- ACL mapping marking of 802.1p
- ACL mapping to priority queue
- DiffServ support
- Honoring DSCP and 802.1p (CoS)
- Traffic shaping/metering
Traffic Management:
- ACL-based inbound rate limiting policies
- Broadcast, multicast and unknown unicast rate limiting
- Inbound rate limiting per port
- Outbound rate limiting per port/queue
Security:
- 802.1x authentication
- MAC authentication
- DHCP snooping
- RADIUS authentication/authorization
- Radius/Tacacs/Tacacs+
- Authentication, Authorization, and Accounting (AAA)
- Secure shell
- Secure copy (SCP)*
- Local username/password
* Feature to be included in a future release.
