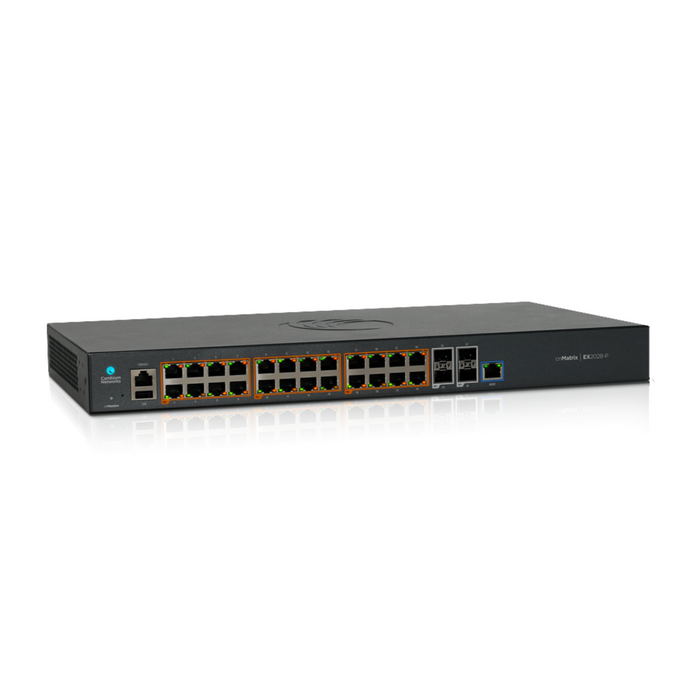

Cambium cnMatrix TX 2028RF-P Intelligent Ethernet PoE Switch (US Only) [MXTX2028GFPA11]

MXTX2028GFPA11 by Cambium Networks
Original price $3,284.73 - Original price $3,284.73
Original price $3,284.73
$3,284.73
$3,284.73 - $3,284.73
Current price $3,284.73
Cambium cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

General Features:
  • Throughput: 128 Gbps
  • Forwarding Rate in Mpps (64 Byte Packets): 120
  • 10/100/1000 Mbps RJ45 Ports: 16
  • 10 Gbps Fiber SFP + Ports: 4
  • 1 Gbps Fiber SFP Ports: 8
  • PoE+ Enabled Ports 802.3af/at/bt: 16
  • Low Voltage Passive PoE (24 V): 8
  • Cambium Sync (via RJ45 ports): 16
Hardware Specifications:
  • Power Supply: CRPS dependent
  • PoE Power Budget: CRPS dependent
  • 802.3af/at/bt PoE (54V): Ports 1–16
  • 24V Passive PoE - up to 15W: Ports 9–16
  • 54V Passive PoE - up to 90W: Ports 1–8
  • 54V Passive PoE - up to 30W: Ports 9–16
  • Rack Mountable: Yes 1U
  • Wall Mountable: Yes
  • Temperature Ranges: -10°C up to 65°C
Management:
  • cnMaestro cloud management
  • XMS cloud management
  • Industry standard Command Line Interface (CLI)
  • DHCP Client
  • Embedded web management (HTTP/HTTPS)
  • Embedded DHCP server
  • USB file management and storage
  • Out-of-Band Ethernet Management
  • SSH / SSH v2
  • SNMP v1/v2/v3
Layer 2 Feature Set:
  • 802.1s multiple spanning tree
  • VLAN, Port, Protocol, 802.1q
  • 802.1d
  • 802.1x authentication
  • Auto MDI/MDIX
  • BPDU Guard, Root Guard
Layer 3 Feature Set:
  • Inter-VLAN Routing
  • Static ARPs
  • Static Routes
  • DHCP Relay
  • Dynamic Routing – RIPv1/v2
  • Dynamic Routing – OSPFv2
  • Route Redistribution
Quality of Service:
  • ACL mapping and marking of ToS/DSCP (COS)
  • ACL mapping to priority queue
  • ACL mapping marking of 802.1p
  • Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP
Traffic Management:
  • ACL-based inbound rate limiting policies
  • Inbound rate limiting per port
  • Broadcast, multicast and unknown unicast rate limiting
  • Outbound rate limiting per port/queue
Security:
  • Source/Destination IP address
  • TCP/UDP Source/Destination port
  • IP Protocol Type
  • Type of Service (ToS) or differentiated services (DSCP) field
  • Source/Destination MAC address
