This is an OPEN BOX item, SOLD AS IS.

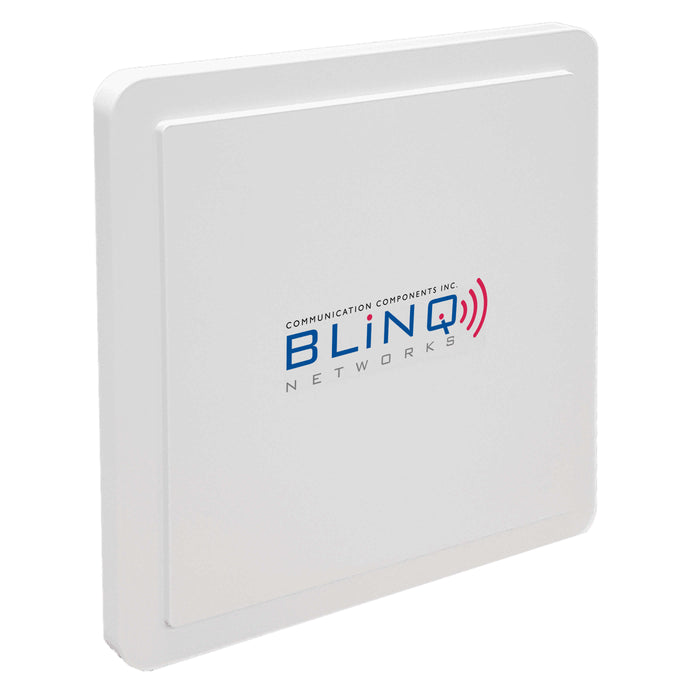

BLiNQ Networks FW-35-CPE 3.5GHz Outdoor High Gain 20+ / -1.0dBi CPE CAT6 LTE MIMO Band 42 / 43 / 48

Product Specifications:

• Base Modul: FWC-110HG-35
• Peak Throughput: 220 Mbps (Config 2-7)
• Carrier Aggregation: 2CC up to 20 MHz each
• Frequency Band: TDD LTE Bands 42, 43, 48
• Transmit Power: Up to +23 dBm
• Tx Power Dynamic Range: 63 dB
• Receiver Sensitivity: -93-95 dBm
• Integrated Antenna Peak Gain: 20 ± 1.0dBi
• Channel Bandwidth/Carrier: 10, 20MHz
• MIMO: DL MIMO 2x2 & 4x2
• LTE Compliance: 3GPP Release 10 & 11

Mechanical & Regulatory:

• Dimensions: (L x W x H) 340 (L) 340 (W) 75(H)mm w/o mounting rib
• PoE: 802.3at
• Survival Wind Speed: > 200 km/hr
• Weight: 2 Kg
• Operating Humidity: 5 to 95
• Operational Temperature: -40 to 55 °C
• MTBF ODU: 300,000 at 55 ͦC
• LTE: EN 301 908-1 V11.1.1 EN 301 908-13 V11.1.1
• Safety: IEC 60950-1/EN 60950-1
• EMC: Draft EN 301 489-52 V.1.1.0
• Environmental: IP67

Networking & OAM:

• Ethernet Ports: 802.3, IEEE 802.3u, IEEE 802.3ab
• SIM Function: 1.8V, 3V SIM and USIM card
• PIN/PUK Code: Yes
• Stack: IPv4 , IPv6 , Dual
• NAT/Dynamic NAT: Yes
• Router Mode: Yes
• Bridge Mode: Yes
• Tunnel Mode: GRE, L2TP, IPsec, PPTP -available per request
• DHCP Server in LAN: Yes (253 clients)
• DNS Relay: Yes
• DDNS Client: Yes
• VPN Pass-Through – IPSec/PPTP/L2TP: Yes
• UPNP: Yes
• HTTP Server: Yes
• ALG Support (FTP/SIP/…): Yes
• Networking Debug/Testing IPerf, Ping , Trace-route

Device Management & Security:

• WEB: Yes
• SNMP: Yes
• TR-069 (TR-0143): Yes (ready for IOT)
• FOTA Upgrade: Yes (IOT with different network )
• System Log/Diagnostic: Yes (chip set embedded tool)
• User Name/Password Configuration: Yes
• L2/L3 Firewall Basic/Port Forwarding/Port Trigger/DMS / Remote
• WAN Ping / Remote Web Access Control
