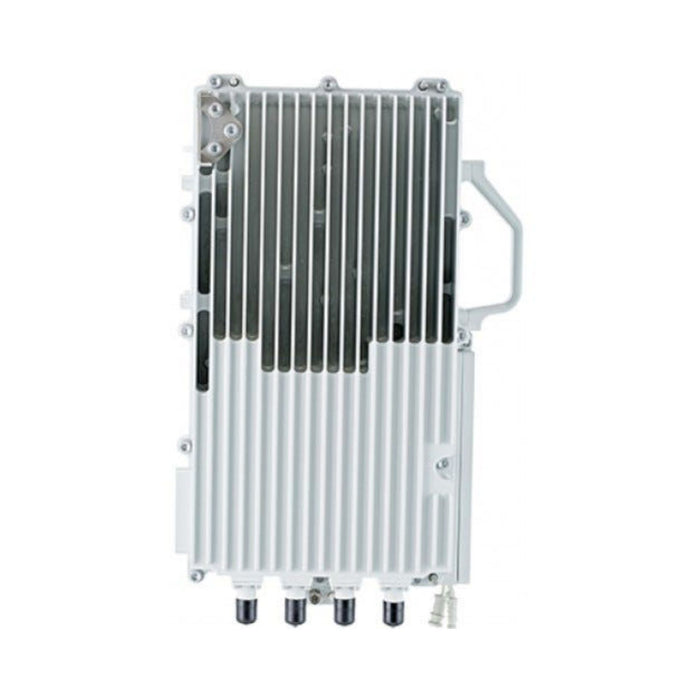

BRU3510 Nova-243 Outdoor FDD/TDD eNB

The Baicells Nova-243 eNodeB (eNB) is an outdoor LTE FDD/TDD base station with 2*10W output power (2x2 MIMO with 10W output each channel). The unit is compact, lightweight, and easy to deploy.

The Nova-243 eNB offers excellent performance, helping operators to provide better coverage and higher capacity with minimal effort.

FEATURES

• Standard LTE network modes:
  • FDD bands 1/3/7
  • TDD bands 38/40/41/42/48 and customized
• Peak rate (20 MHz):
  • FDD: 150 Mbps DL, 50 Mbps UL
  • TDD: 112 Mbps DL, 20 Mbps UL
• Maximum 255 (FDD) and 96 (TDD) concurrent users
• 5 / 10 / 15 / 20 MHz bandwith operation
• Higher transmission power for extended coverage
• Lower power consumption to reduce OPEX
• Any IP based backhaul can be used, including public transmission
• Plug-and-play with SON capabilities
• IoT with most EPC vendors
• Excellent NLOS coverage performance
• Local and Web GUI management, network manage using BaiOMC
