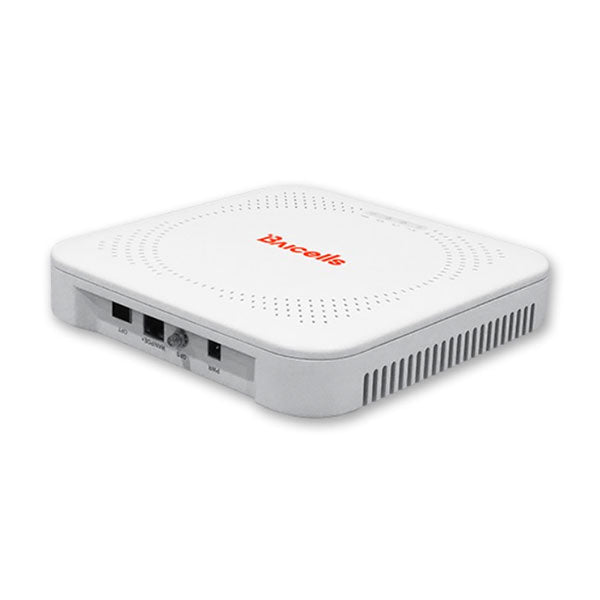

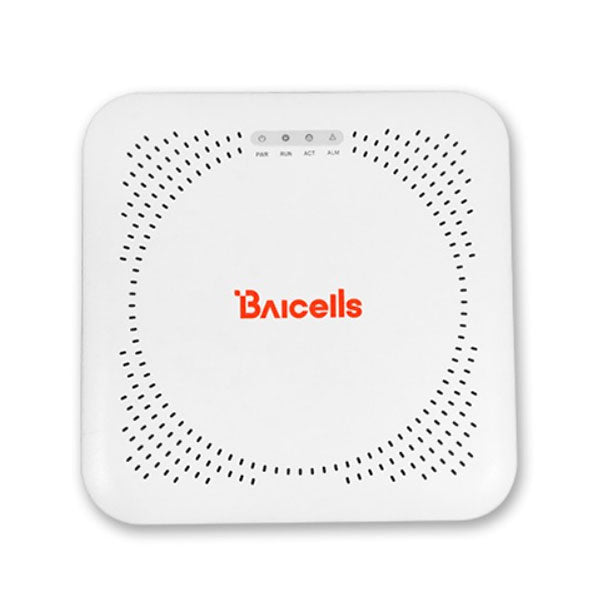

Baicells Neutrino-430 LTE Release 9 4x250mW eNB Indoor Base Station
The Baicells Neutrino430 is an advanced two-carrier indoor eNodeB (eNB) compliant with 3GPP LTE TDD technology. This 4x250mW eNB can operate in Carrier Aggregation (CA) mode or Dual Carrier (DC)/split mode.
In CA mode, contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all Cat6/7 or higher user equipment.
In DC mode, each carrier is treated as an independent cell, supporting 96+96 users, with each supporting 5, 10, 15, or 20 MHz bandwidth. Using a Neutrino430 in DC mode simplifies and streamlines the deployment of split sectors.
In addition to CA and DC mode options, HaloB (an embedded MME option) is available on the Neutrino430 as part of the base software. The Baicells patented HaloB solution migrates the necessary core network functions to the eNB.
- LTE Mode: TDD
- Frequency Bands: Band 48 and partial bands 42, 43
- Channel Bandwidth: 5 / 10 / 15 / 20 MHz per carrier
- Maximum Output Power: 24dBm/port
- Power Supply: 12VDC, POE ±48V
- Power Consumption: ~20W (peak)
- Receive Sensitivity: -100dBm
