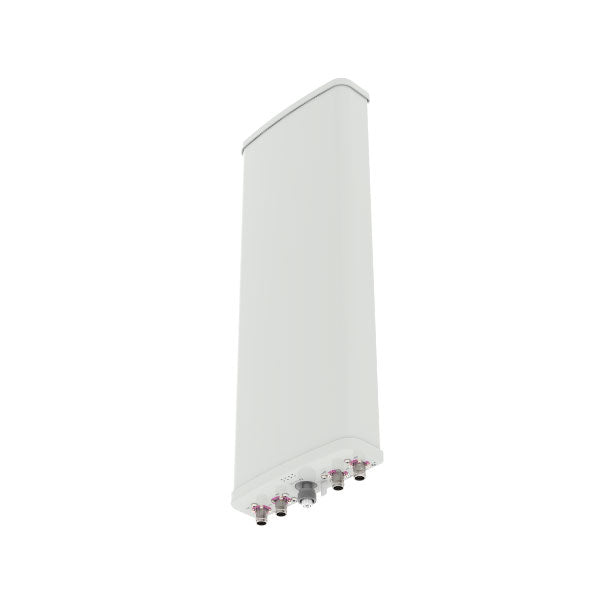

Alpha Wireless 3.5GHz, 4 Port, 65°, 18 dBi, Panel Antenna [AW3161-M-F-V2]
The Alpha Wireless 3300 – 3800 MHz AW3161-M-F-V2 is a high performance 4-port, 65 degree single band sector panel with manual electrical variable tilt. The antenna incorporates advanced phase-shifter technology to suppress all upper side lobes above the main beam, for all tilts and frequencies. The AW3161-M-F-V2 eliminates interference in LTE networks with over 20 dB of upper side lobe suppression and 30 dB front to back ratio. This improves cell edge performance and enables high levels of spectral efficiency. This antenna’s consistent beamwidth and null filling below the main beam provides consistent coverage near-to and far-from the access point. The Alpha Wireless AW3161-M-F-V2 provides ±45 degree slant polarization and supports 4×4 MIMO. This panel antenna delivers an impressive 18 dBi gain and optimized patterns for 3.5GHz CBRS and C-band deployments.
The AW3161-M-F-V2 features manual electrical tilt (MET) which enables the electrical tilt to be adjusted by a tilt screw located on the bottom connector plate. A dipstick provides an accurate reading of the electrical downtilt value. MET fine-tunes antenna performance with the turn of a screw instead of the time-consuming, high-risk mechanical bracket adjustment of fixed tilt antennas.
Electrical tilt adjustment enables network optimization without the need to adjust the mounting brackets. Throughput and coverage can be optimized through accurate adjustments of the downtilt to put the signal where it is needed. Down tilting the main beam electrically maintains azimuth pattern control and tilt is applied equally around the azimuth plane. This allows full control of the patterns to prevent signal creep into all neighbor cells, enables frequency-reuse between cells, and reduces the number of cells needed to serve an area.
The AW3161-M-F-V2 provides sectorized coverage for 4G LTE and 5G private networks using the 3.5 GHz Citizens Broadband Radio Service (CBRS) and C-band spectrum (Bands n48, n78, 42, 43, and 52). Alpha Wireless is your antenna partner. We advise, design and deliver.
Features:
- Wide-band antenna for 3GPP bands 42, 43 & 48
- 4×4 MIMO for maximum throughput
- Enhanced tilt range of 0 to 10 degrees
