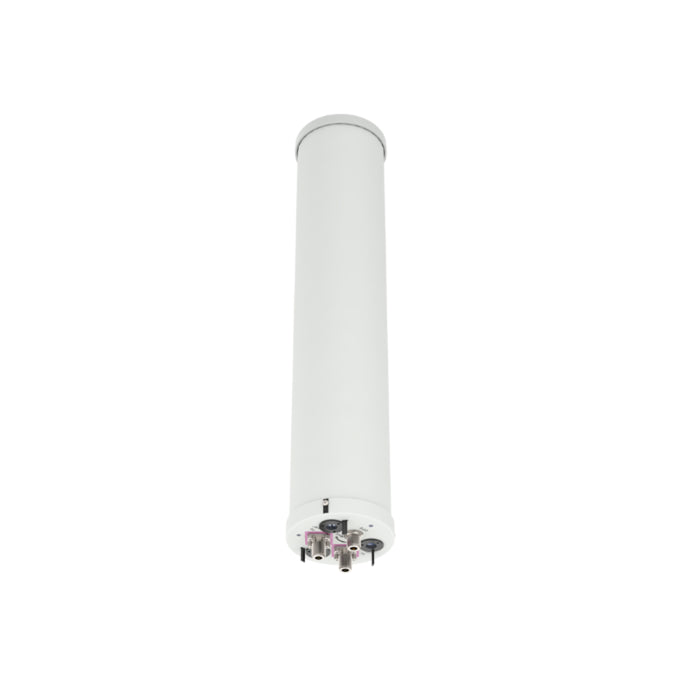

Alpha Wireless 3.3 - 3.8GHz 8.5dBi Omni CBRS Antenna w/ Integrated GPS

AW3625 by Alpha Wireless
Original price $949.95 - Original price $949.95
Original price
$949.95
$949.95 - $949.95
Current price $949.95

AW3625 is an Alpha Wireless linear-slant omnidirectional CBRS antenna, operating between 3300 and 3800MHz, with a ±45° polarization, 8.5dBi gain, and a GPS antenna.


Product Specifications:
  • Frequency Range: 3300 - 3800MHz
  • Polarization: ±45° Slant Linear
  • Gain: 8.5dBi
  • Azimuth Beamwidth: 360°
  • Elevation Beamwidth: 12°
  • Electrical Downtilt: T0° to T10°
  • Electrical Downtilt Deviation: <1°
  • Impedance: 50Ω
  • VSWR: <1.5:1
  • Return Loss: >14dB
  • Isolation: >25dB
  • Upper Sidelobe Suppression, Peak to 20°: >16dB
  • Cross Polar Discrimination at Sector: >12dB
  • Maximum Effective Power per Port: 50W


Product Specifications:
  • Dimensions: 640 x 120 x 120mm (25.2 x 4.7 x 4.7")
  • Dimensions (inc. bracket): 1150 x 178 x 120mm (45.3 x 7.0 x 4.7)
  • Packing Size: 770 x 190 x 250mm (30.3 x 7.4 x 9.8")
  • Net Weight (antenna): 3kg (6.6lbs)
  • Net Weight (mount): 2kg (4.4lbs)
  • Shipping Weight: 6kg (13.2lbs)
  • Connector Quantity: (2) N-Type Female, (1) N-Type for GPS
  • Connector Position: Bottom
  • Mounting Kit: CL-V-126
  • Win load Frontal: 150N
  • Survival Wind Speed: 200kmh (125mph)
  • Radome Material: UV-Stabilized PVC
  • Radome Color: 7035 RAL
  • Product Environmental Compliance: RoHS
  • Lighting Protection: DC Grounded
  • Cold Temperature Survival: -40°C
  • Hot Temperature Survival: 70°C


Product Specifications:
  • Center Frequency: 1575.42MHz ± 10MHz
  • Gain: 3dBic @ 90° / -2dBic @ 20°
  • Polarization: Right Hand Circular
  • Current Draw: 7.5mA @ 3.3VDC (typical)
  • Nominal Impedance: 50Ω
  • VSWR: 1.5:1 (typical) @ 5.0V / 1.8:1 (typical) @ 3.3V
  • Nominal Gain: @ 3.3VDC: 25dB / @ 5VDC: 25.5dB
  • Voltage: -5VDC
  • Connector (1) N-Type
  • Temperature Range: -40 to 85°C
  • Humidity: 95% max
