Alpha Wireless 4 Port B42 & 43 Panel CBRS Antenna [AW3023-T4]

AW3023-T4 by Alpha Wireless
Sold out
Original price $489.00
Original price $489.00 - Original price $489.00
Original price $489.00
Current price $299.00
$299.00 - $299.00
Current price $299.00

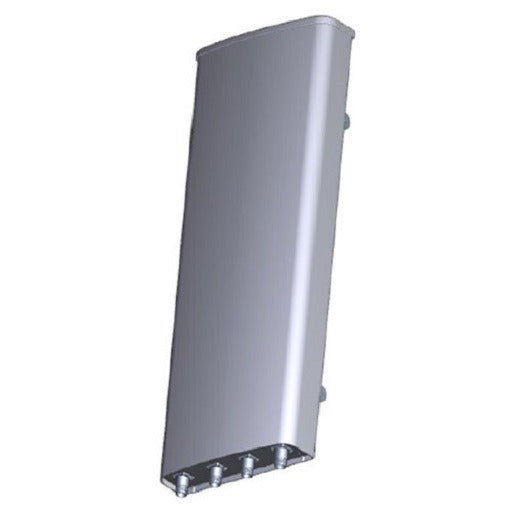

The Alpha Wireless AW3023-T4 is a CBRS sector antenna operating between 3.3 and 3.80 GHz frequencies, with a 65° beamwidth, 18dBi gain, and four N-Female ports.

RF Specifications
• Frequency Range: 3.3 - 3.8 GHz
• Polarization: ±45° Slant Linear
• Gain: 18dBi
• Azimuth Beamwidth: 65°
• Azimuth Beam Squint: 3°
• Elevation Beamwidth: 7°
• Electrical Downtilt: T4°
• Electrical Downtilt Deviation: 1°
• Impedance: 50&ohms;
• VSWR: 1.5
• Return Loss: 14dB
• Isolation: 28dB
• Front to Back Ratio (total power ±30°): 30dB
• Upper Sidelobe Suppression (peak to 20°): 18dB
• Cross Polar Discrimination at Sector: 16dB
• Maximum Effective Power per Port: 100W

Mechanical Specifications
• Dimensions: 750 x 280 x 85mm (29.5 x 11 x 3.3")
• Packing Size: 823 x 340 x 178mm (32.4 x 13.3 x 7")
• Net Weight (antenna): 4.3kg (9.4lbs)
• Net Weight (mount): 1.57kg (3.4lbs)
• Shipping Weight: 5.8kg (12.8lbs)
• Connector Quantity: 4 x N-Type Female
• Connector Position: Bottom
• Windload Frontal: 420N
• Windload Lateral: 120N
• Survival Wind Speed: 200kmh (125mph)
• Radome Color: 7035RAL
• Radome Material: UV-Stabilized PVC
• Product Compliance Environmental: RoHS
• Lightning Protection: DC Grounded
• Cold Temperature Survival: -40°C (-40°F)
• Hot Temperature Survival: +70°C (158°F)

Product Includes
• (1) Alpha Wireless Antenna
• (1) Mounting Kit
• (1) Installation Manual
